Easy to use Multi-functional DOCSIS 2.0 Network Analyzer Reduces
Installation and Troubleshooting Times
The CM2000 is a powerful cable modem network analyzer that sets a new
standard for testing high-speed data, VoIP telephone, and digital and analog
video services. The unit’s comprehensive set of customizable test functions
speeds installations and reduces repair time, while increasing quality of
service (QoS). A range of automated test suites ensures consistency of tests
performed, pass/fail limits, and results.
The CM2000 provides a large 6.4" full VGA, color touch screen with excellent
visibility in bright sunlight, a field replaceable 4+ hour battery pack, tuning
from 5 to 1000 MHz, integrated cooling to allow continuous use — all in a
weatherproof, rugged, field-ready package.
Highlights
- Up to 30 Mb/s throughput
- Comprehensive analog and digital SLM measurements
- Integrated DOCSIS 2.0 cable modem
- User-programmable automated testing and customizable verification and
troubleshooting capabilities
- Optional VoIP voice quality testing with MOS, latency, jitter and packet
loss measurements
- Network capacity validation for increased bandwidth demands of
next-generation services
- Easy-to-use interface and best display of any instrument in its class
- Open architecture provides flexibility for future service requirements
- Windows CE Internet Explorer browser offers web access to back office and
diagnostic systems
- System Editor Software package simplifies setup and provides a results
viewer
Cable
Modem Detail results screen provides upstream and downstream signal
performance data. Links allow more detailed analysis of the cable modem
connection, upstream, downstream, data network and VoIP service
performance. |
The
SLM (signal level meter) automatically switches between analog and digital
to display both numeric and graphic measurement results. Tune to any
upstream or downstream channel, up to 1
GHz. |

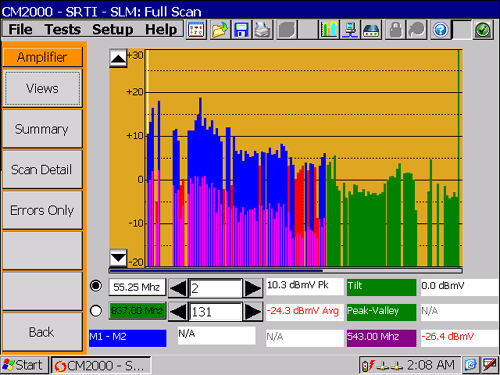

Scan
and Mini-Scan allow detailed analysis of the signal levels on the
downstream network. Links are provided to summary and detailed test
results, including min, max levels, tilt &
peak-to-valley. |

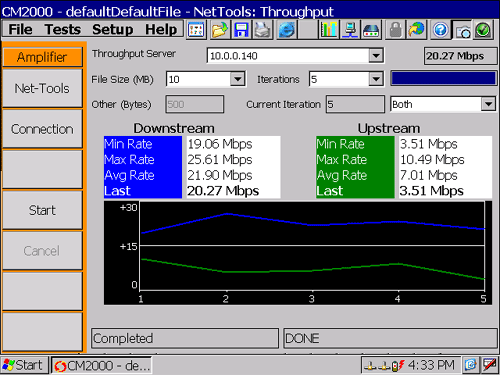

Throughput
testing may be performed via RF cable modem or Ethernet -- at up to 30
Mb/s to verify and analyze even the highest tiers of HSD
services |
|
