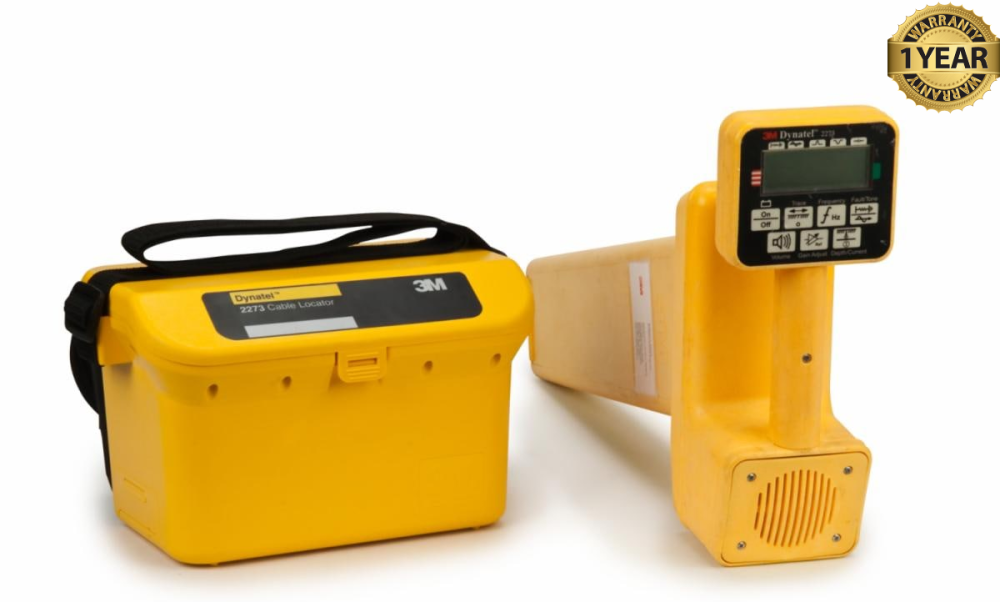

3M Dynatel 2273X Cable Pipe Locator
Condition: Refurbished/Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- 3M Dynatel 2273X Cable Pipe Locator (BC# -L/T*)
- Transmitter (BC# -L/T*)
- Receiver (BC# -L/T*)
3M Dynatel 2273X Cable Pipe Locator
The receiver provides graphical guidance to help distinguish the target line from nearby conductors in congested areas. It's dual peak, dual null, differential, and special peak modes give operators different ways to pinpoint a utility’s position. An expander function makes signal peaks and nulls more pronounced during tracing.
The 2273X also locates cable sheath and ground faults using an A-frame fault-locating accessory. This capability helps maintenance crews narrow down the location of insulation damage on buried cable sections. It combines cable tracing and fault finding in one system, supporting both installation checks and troubleshooting.
Additional functions include locating compatible sondes and identifying cables or cable pairs. The system is useful for telecommunications, electrical utility, and infrastructure maintenance teams working with underground networks. By providing information about a utility’s route, depth, and fault location, it helps crews plan access and focus repair work more efficiently.
Features:
- Buried cable and conductive pipe tracing to identify their underground route.
- Estimated depth measurement for locating utilities.
- Four active tracing frequencies, usable individually or simultaneously.
- Passive locating modes for detecting existing power, cathodic protection, and CATV signals.
- Four locating modes: dual peak, dual null, differential, and special peak.
- Graphical receiver display to help distinguish the target utility from nearby lines.
- Signal expander function to make peaks and nulls more pronounced.
- Cable sheath and ground-fault locating when used with the appropriate A-frame accessory.
- Compatible sonde locating for tracing an active duct probe.
- Cable and cable-pair identification.
- Auxiliary frequencies for locating signals from compatible remote transmitters.
- Operating temperature range: −20°C to +50°C
| Specification | Details |
|---|---|
| Manufacturer | 3M |
| Product series | Dynatel 2200X |
| Model | 2273X |
| Product type | Underground cable, pipe, and fault locator |
| Main functions | Utility tracing, estimated depth measurement, and cable fault locating |
| Cable locating | Supported |
| Pipe locating | Supported for conductive pipes or compatible tracing arrangements |
| Fault locating | Cable sheath and ground faults, using an appropriate A-frame |
| Active tracing frequencies | Four frequencies, selectable individually or simultaneously |
| Passive locating | Power, cathodic protection, and CATV signals |
| Auxiliary frequencies | Supports locating signals from compatible remote transmitters |
| Receiver locating modes | Dual peak, dual null, differential, and special peak |
| Receiver display | Graphical guidance for distinguishing the target cable from nearby cables |
| Signal expander | Enhances peaks and nulls for pinpointing |
| Estimated depth measurement | Buried cables, pipes, and compatible active duct probes |
| Sonde locating | Supported for compatible active duct probes |
| Cable identification | Cable and cable-pair identification |
| Operating temperature | −20°C to +50°C / −4°F to +122°F |
| Electronic marker locating | Not listed for the 2273X C12 configuration |
