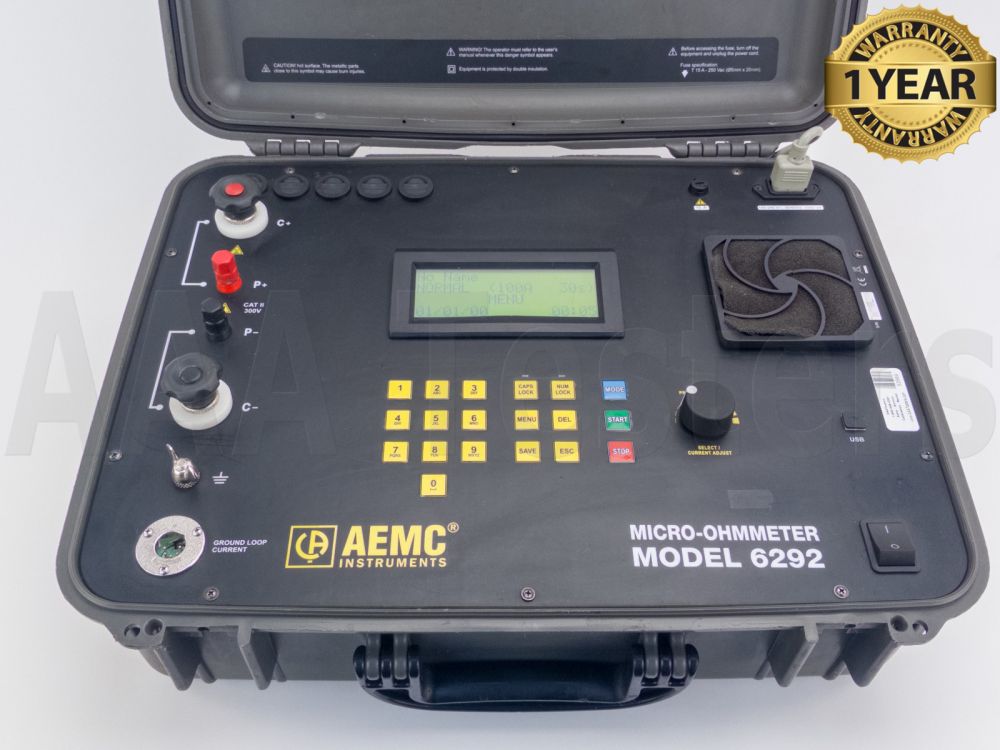

AEMC 6292 Micro-Ohmmeter
$5,099.00
Availability:
In stock
SKU
2H21
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- AEMC 6292 Micro-Ohmmeter (BC#: -L/T*)
- USB PC Interface Cable
- Power Cord
Request a Quote for
AEMC 6292 Micro-Ohmmeter
Programmable test currents and test duration with data storage and report generation
Features:
- Adjustable test currents from 5 to 200A
- Programmable test duration from 5 to 120 sec
- BSG Ground Test with optional current probe
- Accurately measures low contact resistance with test currents up to 200A
- Measures resistances from 0.1μΩ to 1Ω
- Low resolution of 0.1μΩ
- Cooling system to improve the number of sequential tests that can be performed
- Backlit display
- Measures objects with both sides grounded
- Stores up to 8000 test results
- Rugged and water-resistant case
Specifications:
| ELECTRICAL | |
| Test Current Range | Adjustable from 20 to 200A (True DC) |
| Resistance Range | 0.1μΩ to 2mΩ 2 to 200mΩ 200mΩ to 1Ω |
| Accuracy | ± 1% of reading from 50μΩ to 1Ω |
| Resolution | 0.1μΩ to 2mΩ: 2 to 200mΩ: 200mΩ to 1Ω: |
| Output Voltage | 100Vac: 4.2V @ 200A 220Vac: 8.6V @ 200A |
| Max. Load Resistance | 100Vac: 20mΩ @ 200A 220Vac: 42mΩ @ 200A |
| Measurement Method | Four-terminal, Kelvin-type |
| Adjustable Test Time | 5 to 120 seconds or unlimited |
| Memory | Stores up to 8000 measurements |
| Power Supply | 100 to 240Vac, 50/60Hz |
