AFL FS300-325U FlexScan SM MM 850/1300/1310/1550 Fiber OTDR
$5,595.00
Availability:
In stock
SKU
3P30
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

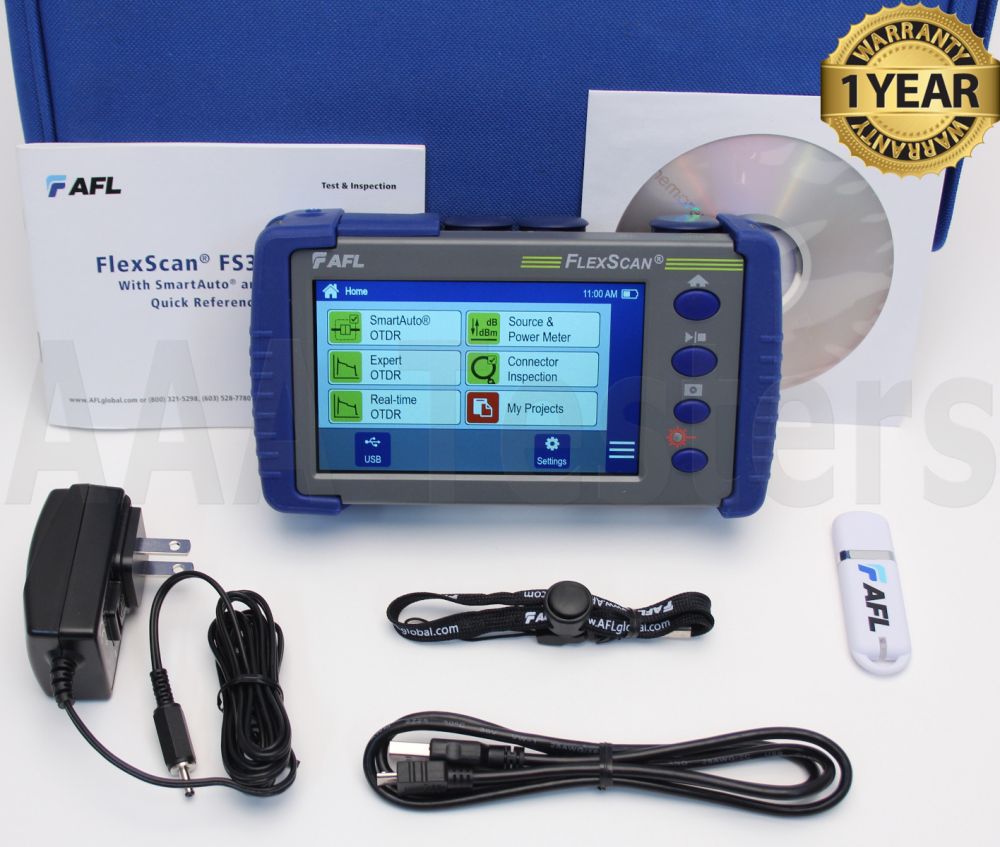

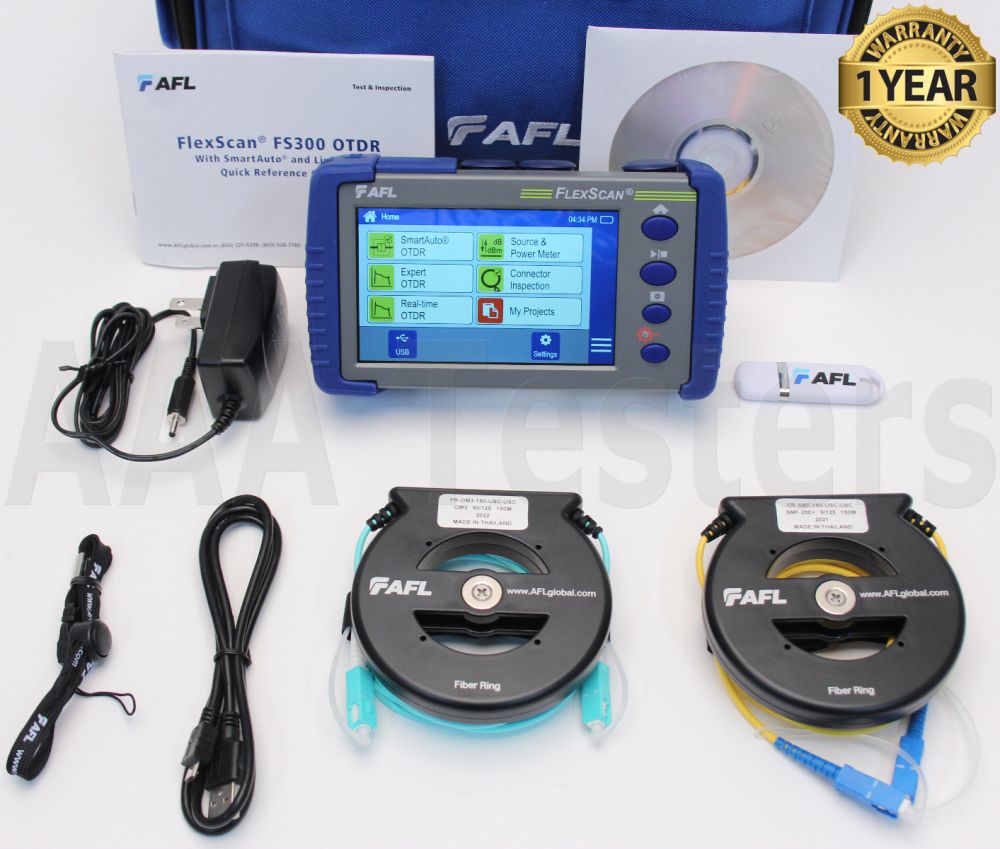

- Noyes FS300-325U FlexScan SM MM Fiber OTDR (BC#)
- SM OTDR Source:
- 1310nm
- 1550nm
- SC Connector For Source
- MM OTDR Source:
- 850nm
- 1300nm
- SC Connector For Source
- Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1490nm
- 1550nm
- 1625nm
- 1650nm
- 2.5mm Connector For Power Meter
- Visual Fault Locator
- 2.5mm Connector For VFL
- SM OTDR Source:
- Quick Reference Guide
- Flex Reports Basic Software
- Hand Strap
- AC Adapter/Charger
- USB PC Interface Cable
- User Manual On CD-ROM
- Carrying Case
Request a Quote for
AFL FlexScan FS300-325-U
Features:
- Test MMF and SMF, point-to-point and PON
- SmartAuto detects closely spaced events without sacrificing range
- LinkMap icons clearly identify event type & pass/fail status
- Print-to-PDF plus internal & external data storage
Applications:
- OTDR and Insertion Loss test & reporting
- Fast, accurate pt-to-pt & PON verification & troubleshooting
- Locate faults exceeding industry or user pass/fail thresholds
- Visually pinpoint location of macro-bends or breaks
- Performance-packed: With SmartAuto multi-pulse acquisition, 36 dB dynamic range and best-in-class dead zones, FlexScan Quad OTDRs test multimode and single-mode networks – including FTTH PONs and POLANs up to 1:64 split ratio – while still detecting and measuring events <2 meters apart.
- User-friendly: FlexScan OTDRs enable both expert and novice technicians to quickly, reliably and accurately detect, locate, identify and measure optical network components and faults. After applying industry-standard or user-set pass/fail criteria, the network is displayed using FlexScan’s intuitive, icon-based LinkMap view. Results may be printed to PDF and stored internally or externally. FlexScan automates test setup, shortens test time and simplifies results interpretation, improving test efficiency and cost.
- Pocket-sized:FlexScan OTDRs truly fit in your pocket, yet still deliver all-day battery operation plus a large, bright, indoor/outdoor, 5-inch 800x480 touchscreen display. With large touch controls, you’ll never need a stylus.
- All-in-one test capability: With optional connector inspection, integrated optical light source, power meter and VFL, FlexScan provides an all-in one solution, ensuring technicians have everything they need to locate and resolve optical network issues. Uploaded results may be viewed and professional reports may be generated using the included FlexReports™ Test Results Manager software.
- Available in Convenient, Cost-saving Installation and Troubleshooting Kits: Bundle FlexScan with choice of launch cable, FOCIS Flex and connector inspection probe and tips.
- Easy reporting and archiving:Included FlexReporter Basic software suite works with AFL Test and Inspection instruments to provide a simple-to-use, high performance cloud enabled reporting platform. FlexReporter combines FlexApp, a mobile App that wirelessly transfers test results to FlexReporter-Cloud from the field with FlexReports, a fast, comprehensive, 3-step PC software reporting solution. The FlexReporter software suite was developed to make the complicated task of reporting faster, simpler, and easy-to-use.
Specifications:
| Emitter Type, Safety Class | Laser, Class I | |
| Fiber Type | Multimode; compatible with OM1-OM5 | Single-mode; compatible with all G.65x |
| Wavelengths (nm) | 850/1300 ±20 nm | 1310/1550 ±20 nm |
| Network Type | Point-to-point | Point-to-point & PON up to 1:64 |
| Connector Type | User-specified APC or UPC ferrule with interchangeable UCI adapters | |
| Dynamic Range | ≥29/29 dB @ 850/1300 nm | ≥37/35 dB @ 1310/1550 nm |
| Event Dead Zone | ≤0.8 m @ 850/1300 nm typical | ≤0.8 m @ 1310/1550 nm typical |
| Attenuation Dead Zone | ≤3.0 m | ≤3.5 m |
| PON Dead Zone | Not applicable | ≤25 m |
| Pulse Widths | 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 ns | 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 ns; 1, 2, 3, 5, 10, 20 μs |
| Range Settings | 250 m to 30 km | 250 m to 240 km |
| Data Points | Up to 300,000 | |
| Data Spacing | ≥5 cm to ≤16 m | |
| Group Index of Refraction | 1.3000 to 1.7000 | |
| Distance Uncertainty | ±(1 + 0.0025% x distance + data point spacing) m | |
| Reflectance Range | 850 nm: -20 to -58 dB; 1300 nm: -20 to -63 dB | 1310/1550 nm: -20 to -65 dB |
| Reflectance Accuracy | ±2 dB | |
| OTDR Modes | Supports SmartAuto, Expert, Real-Time for PON & point-to-point networks | |
| Real-time Refresh Rate | 1 to 4 Hz | |
| Live Fiber Protection | No OTDR damage when connected to live fiber delivering ≤ +18 dBm at wavelength(s) in range 825 to 1675 nm | |
| Live Fiber Detection: | Reports live fiber with input signal ≥ -35 dBm for wavelength(s) in range 825 to 1675 nm | |
| VISUAL FAULT LOCATOR (VFL) | ||
| Emitter Type | Visible red laser, 650 ±20 nm | |
| Safety Class | Class II FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03 | |
| Output Power (nominal) | 0.8 mW into single-mode fiber | |
| Modes | CW, 2 Hz flashing | |
| OPTICAL POWER METER -OPM (Optional) | ||
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625, 1650 nm | |
| Detector Type | InGaAs, 2 mm diameter | |
| Measurement Range | +3 to -70 dBm (+3 to -65 dBm @ 850 nm) | |
| Tone Detect Range | +3 to -50 dBm @1300, 1310, 1550 nm; +3 to -40 dBm @850 nm; |
|
| Wavelength ID Range | +3 to -50 dBm @1300, 1310, 1550 nm; +3 to -40 dBm @850 nm |
|
| Accuracy |
±5% @ -10 dBm | |
| Resolution | 0.01 dB | |
| Measurement Units | Power in dBm, nW, μW, mW; Loss in dB | |
| GENERAL | ||
| Size (in boot) | 98 x 175 x 52.5 mm | |
| Weight | 0.8 kg | |
| Operational Temperature | -10 °C to +50 °C, 0 to 95 % RH (non-condensing) | |
| Storage Temperature | -30 °C to +70 °C, 0 to 95 % RH (non-condensing) | |
| Power | Rechargeable Li-polymer or AC adapter | |
| Battery Life | >12 hours, Telcordia test conditions | |
| Display | 5-inch color LCD, 800 x 480 pixels, backlit | |
| USB Ports | 1 host; 1 micro-USB function | |
| WiFi (optional) | IEEE 802.11 / WLAN | |
