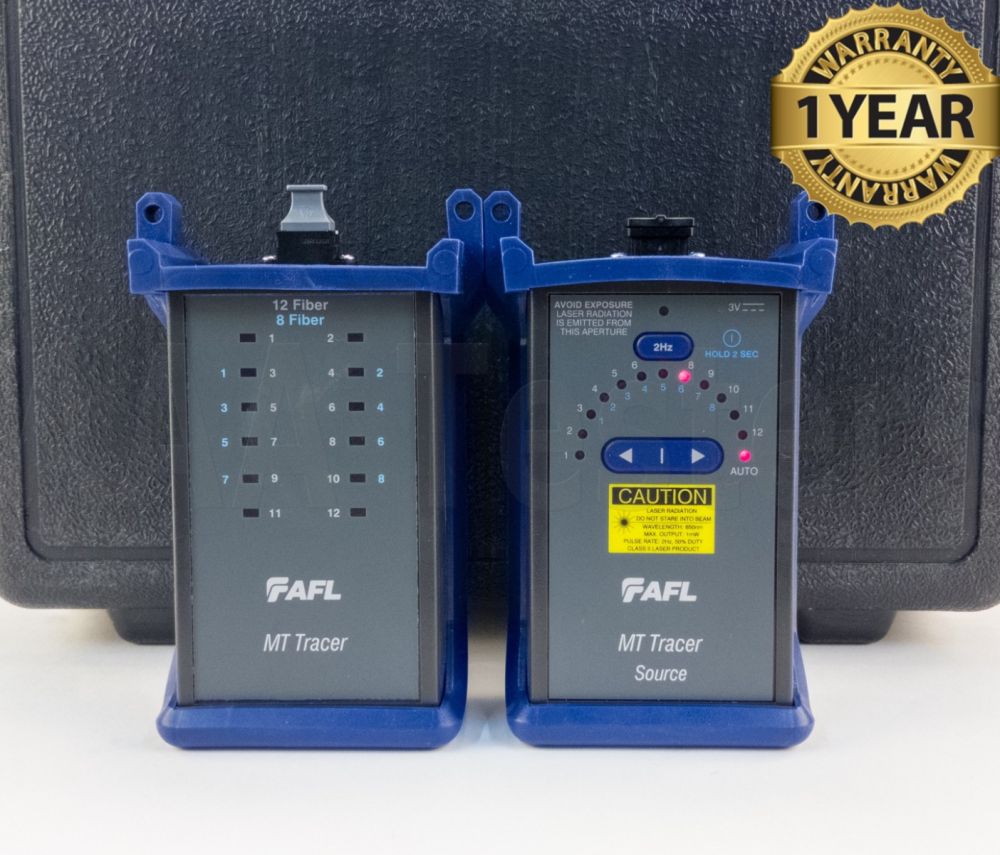

AFL MT Tracer 12Fiber VFL Source w/ Display
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- AFL MT Tracer Source (BC#: -L/T*)
- AFL MT Tracer Display
- Carrying Case
AFL MT Tracer 12Fiber VFL Source w/ Display
The MT Tracer is a compact multi-fiber visual fault locator (VFL) red laser source supporting 8- or 12-fiber MTP®/MPO connections. The user simply connects the 12-fiber cable directly to the unit and views the results.
Fibers can be tested individually or all at once. By progressing sequentially through the fibers, cables can be quickly checked for polarity by verifying the proper order at the output. Additionally, damaged fiber(s) are quickly identified with the MT Tracer saving trouble-shooting time when cables are put into service.
The MT Tracer source can be used to quickly trace cables in messy or un-documented setups. It provides a foolproof way of finding the “other end” amongst cluttered or unlabeled cables. Simply connect the MT Tracer Source to one end and look for the visual red light transmitted out the opposite connector.
The MT Tracer kit from AFL is a complete MTP/MPO cable polarity and continuity test solution and a must-have for technicians working with high-density fibers.
Features:
- Viewing safe for eyes
- CW or 2Hz (2 cycles per second) output
- Direct connect - No fan-outs necessary
Specifications:
| MT TRACER SOURCE | |
| Optical Wavelength | 650 ±40 nm |
| Output Power Level | Minimum 0.5 mW, typical 1.0 mW (at each SM 9/125 fiber at the end of MTP cord) |
| Optical Connector | MTP® male SM, angled |
| Number of Output Fibers | 12 |
| Power | 2 x AA alkaline batteries |
| Battery Life (alkaline) | 40 hours |
| Low Battery | Indicated by 2 Hz LED blinking |
| Weight | 0.29 kg (0.63 lb) |
| MT TRACER DISPLAY | |
| Input Connector | MTP angled male 62.5 μ fiber |
| No. of Input Connectors | 1 (12-fiber MTP) |
| GENERAL | |
| Weight | Source: 0.29 kg (0.63 lb); Display 0.18 kg (0.4 lb) |
| Dimensions | 9.9 x 3.8 x 14.3 cm (3.9 x 1.5 x 5.6 in) |
| Operation Temperature | 0 °C to 40 °C, RH 85 % non-condensing |
| Storage Temperature | -30 °C to 50 °C, RH 95 % non-condensing |
