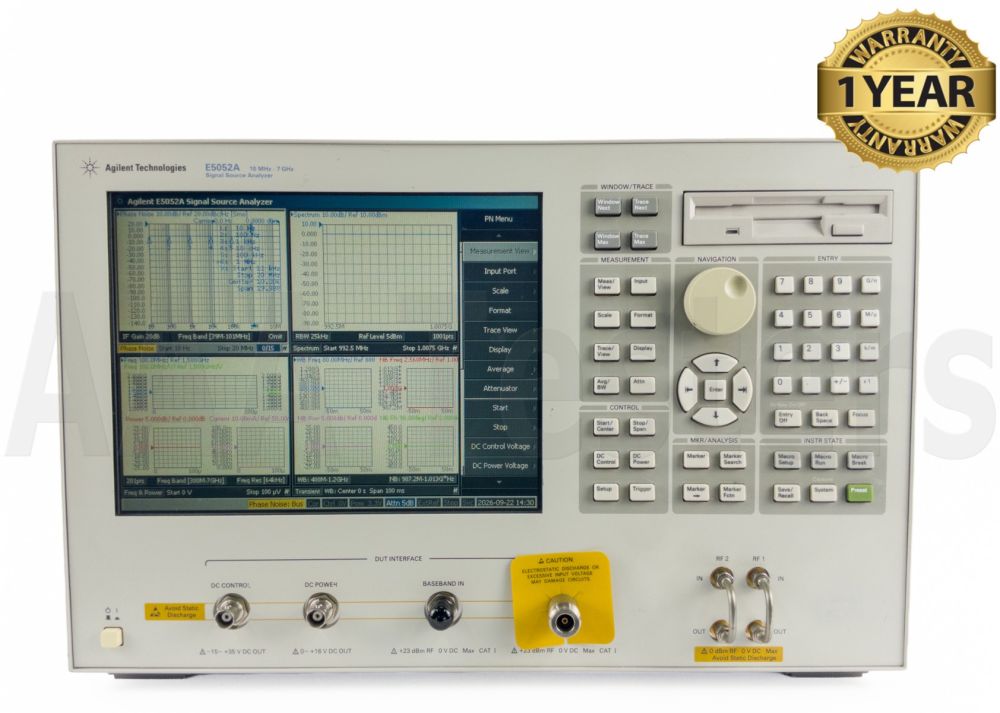

Agilent Keysight E5052A 7GHz Signal Source Analyzer
Condition: Refurbished/Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Agilent Keysight E5052A 7GHz Signal Source Analyzer (BC# -L/T*)
- Power Cord
- User Manual on CD
The E5052A Signal Source Analyzer is a single-instrument solution that offers an indispensable set of measurement functions for evaluating RF & microwave signal sources such as crystal oscillators, VCOs, SAW oscillators, DROs, YIG oscillators, PLL synthesizers, RFICs, and LO circuits. Capabilities include measurements of phase noise, frequency/power/phase transient, frequency, power, and DC current as well as a spectrum monitor function. This all-in-one solution is designed to provide accurate and efficient measurements with easy-to-use features to significantly improve design and test productivity. With built-in low-noise reference sources and an innovative technique called cross-correlation, the Signal Source Analyzer provides unparalleled phase noise sensitivity. Often tedious phase noise measurements are now more than 10 times faster! It also offers extremely high sampling rate and frequency resolution in its transient measurements, which satisfy test needs of fast switching synthesizers for today's and future wireless communications and aerospace/defense applications.
Key Features & Specifications
- 10 MHz to 7 GHz frequency range
- Versatile measurement functions in a single instrument
- Phase noise measurement
- Transient measurement (frequency/phase/power over time)
- Frequency, power, and DC current measurement (VCO characterization)
- Spectrum monitoring
|
Description |
Specifications |
|
Frequency range |
10 MHz to 7 GHz |
|
Frequency bands |
10 M to 41 MHz 39 M to 101 MHz 99 M to 1.5 GHz 300 M to 7 GHz |
|
Offset frequency range Carrier > 400 MHz |
1 Hz to 40 MHz (standard) 10 Hz to 40 MHz (Option E5052A-011) |
|
39 MHz ≤ Carrier ≤ 99 MHz |
1 Hz to 20 MHz (standard) 10 Hz to 20 MHz (Option E5052A-011) |
|
10 MHz ≤ Carrier ≤ 39 MHz |
1 Hz to 5 MHz (standard) 10 Hz to 5 MHz (Option E5052A-011) |
|
Enhanced phase noise sensitivity1 |
Cross-correlation method (standard) Number of correlation: 1 to 10,000 |
|
Frequency tracking range |
0.4% of carrier frequency |
|
IF gain |
0, 10, 20, 30, 40, 50 dB (standard) 0, 10, 20 dB (E5053A-011) |
|
Input level 10 to 30 MHz |
–15 to +20 dBm |
|
30 MHz to 7 GHz |
–20 to +20 dBm |
|
Built-in LO phase noise optimization |
< 150 kHz (optimized for close-in phase noise) > 150 kHz (optimized for far-out phase noise) See Figure 1-2 |
|
Accuracy 1 to 100 Hz offset |
< ± 4 dB (typical) |
|
100 to 1 kHz offset |
< ± 4 dB (typical) |
|
1 k to 1 MHz offset |
< ± 2 dB (typical) |
|
1 M to 40 MHz offset |
< ± 3 dB (typical) |
|
SSB phase noise sensitivity |
See Table 1-2 through Table 1-4, Figure 1-1 through Figure 1-3 |
|
Spurious level |
65 dBc (typical) > 1 kHz offset |
|
Measurement time |
See Table 1-5 |
