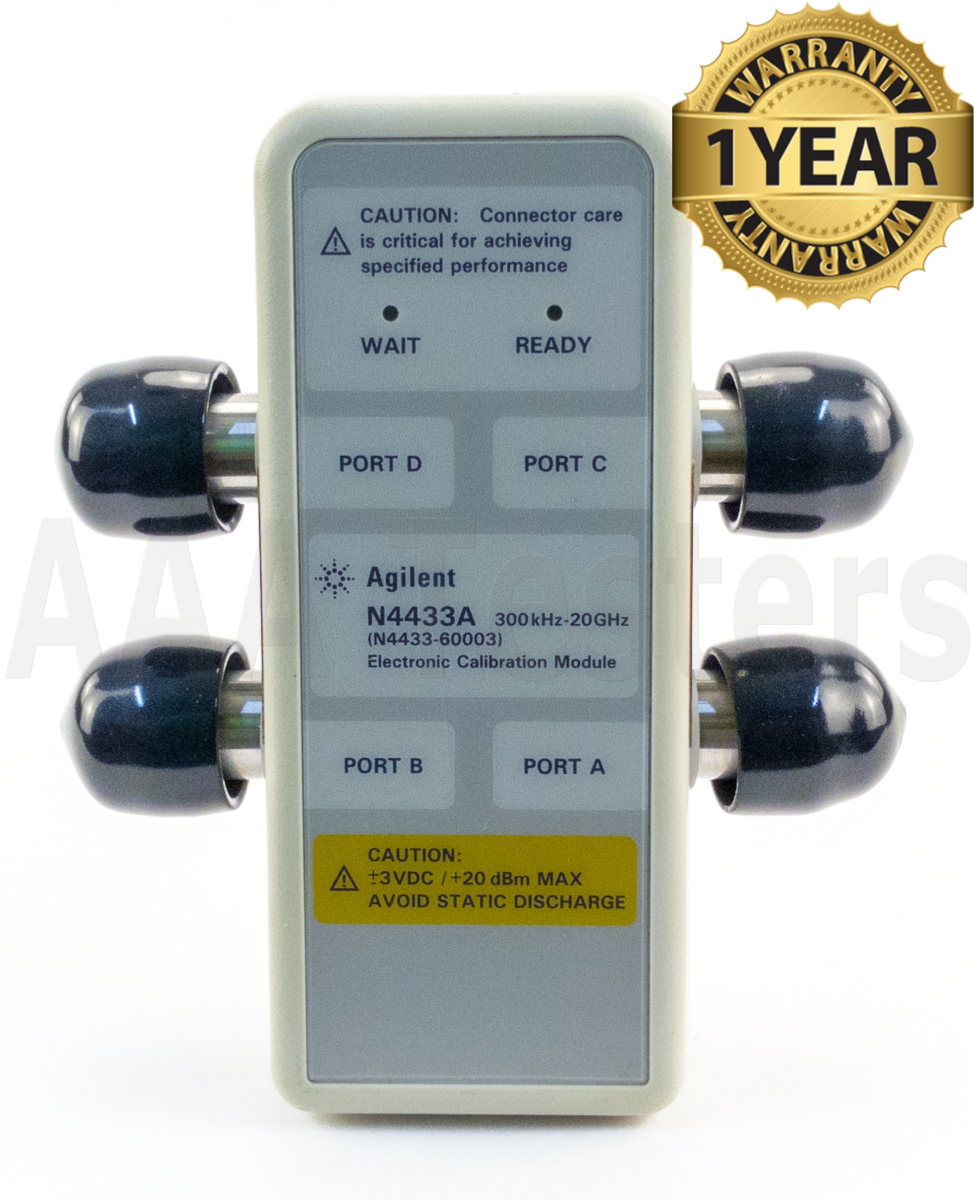

Agilent Keysight N4433A 20GHz Electronic Calibration Module w/ Option 10
Condition: Refurbished
Warranty: 1 Year Warranty
Agilent Keysight N4433A 20GHz Electronic Calibration Module
The Keysight N4433A Microwave electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. ECal is a precision, single-connection calibration technique for your vector network analyzer. Performing a full three- or four-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable to mechanical methods. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
ECal modules are transfer standards capable of transferring the factory calibration accuracy to your network analyzer. The Keysight PNA and ENA series of network analyzers controls the N4433A module directly through a USB interface. PNA Series network analyzers require firmware revision 2.5 or higher.
Key Features & Specifications
- 300 kHz to 20 GHz frequency range
- Standard 3.5 mm (f) connectors
- Fast full 3- or 4-port calibration with a single connection
- NIST traceable accurate calibrations
- Reduced connector wear
- USB interface for direct control with PNA and ENA series of network analyzers
- Reliable solid-state switching
- Mixed 3.5 mm male/female connectors option available
3.5mm
Characteristic performance for N4433A Option 010
The characteristic performance in the following table applies to N4433A Option 010 (3.5 mm female connectors on all ports).
| Frequency range | 300 kHz to 10 MHz | 10 MHz to 5 GHz | 5 to 9 GHz | 9 to 13.5 GHz | 13.5 to 20 GHz |
| Parameter | |||||
| Directivity (dB) | 45 | 52 | 47 | 45 | 45 |
| Source match (dB) | 36 | 42 | 39 | 37 | 31 |
| Reflection tracking (±dB) | 0.1 | 0.06 | 0.09 | 0.10 | 0.18 |
| Transmission tracking (±dB)1 | 0.078 | 0.045 | 0.057 | 0.069 | 0.160 |
| Load match (dB)1 | 39 | 45 | 41 | 39 | 35 |
For full Agilent N4433A Electronic Calibration Module product specifications, please click here: N4433A
Agilent Keysight N4433A 20GHz Electronic Calibration Module
Included Option:
- Option N4433A-010: Four 3.5 mm female connectors
BC# -L/T*
Agilent N4433A N-4433A Electronic Calibration Module Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
- Agilent Keysight N4433A 20GHz Electronic Calibration Module w/ Option: (BC# -L/T*)
- Option N4433A-010: Four 3.5 mm female connectors
