Agilent Keysight N9342C Handheld Spectrum Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Agilent N9342C Handheld Spectrum Analyzer
Field testing just got easier
If you are making measurements in the field, the Keysight Technologies, Inc. N9342 handheld spectrum analyzer (HSA) family makes your job easier. They’ve got the features you need for operating in tough field environments, and their measurement performance gives you confidence the job’s been done right. The HSAs let you automate routine tasks to save time and ensure consistent results. Field testing just got easier with the Keysight N934X HSAs.
Your job just got easier:
- Get the features you need in a field-ready instrument
- Gain confidence in your measurements with benchtop performance in a handheld instrument
- Optional task planner reduces test setup time by 95%, delivers test automation and consistency, and makes it easy to capture test results, generate reports, and share task plans with others.
Get the features you need in a field-ready instrument
When you’re in the field, you need equipment that will stand up to the challenges you face. Keysight’s HSAs are durable and go anywhere the job takes you—they provide the features you need to make your job easier once you’re there.
- Rugged design, without fans or vents, for tough field environments
- Clear screen viewing—day and night
Gain confidence in your measurements with benchtop performance in a handheld instrument
Having confidence in your measurements is critical, especially when you work in the field. Now you can take the accuracy and reliability of a benchtop spectrum analyzer with you in an HSA. In addition to field rugged features the N934X HSAs offer some of the industry’s best performance in a handheld spectrum analyzer.
- Best-in-class RF performance: –164 dBm typical DANL (normalized to 1 Hz), minimum sweep time < 2 ms
- Autotune
- Powerful one-button measurements in power suite for measuring channel power, occupied bandwidth, adjacent channel power ratio, and spectrum emission mask
- Measure filter, amplifier, cable, and antenna with optional built-in tracking generator and VSWR bridge
- Coverage test, interference analysis, band clearance, and spectrum monitoring
- High-accuracy peak and average power measurements with Keysight USB power sensors
Installation, verification, and maintenance of wireless communication systems
While wireless communication systems may vary in modulation types and frequency bands, these systems share several common elements with respect to their installation, verification, and maintenance.
- Identifying interference
- Monitoring remote signals
- Testing cables and antennas
- Locating signal sources
- Conducting a site survey
- Measuring filters and amplifiers
That’s why Keysight’s N934X HSAs are feature-packed, general purpose signal analyzers, versatile enough to help you across the array of functions you perform in the field—before, during, and after the installation of your communication systems.
Identifying interference
Whether it’s created by nature or man-made, intentional or inadvertent, signal interference means restoring communication integrity is the top priority. For any type of communication system—voice, video, or data—identifying and analyzing the source of interference is predicated on getting accurate, reliable results. Now you have confidence provided by a benchtop signal analyzer in a form factor that fits in your hand. That assurance helps you quickly eliminate the possibility of system malfunctions, isolate interference timing, repetition, and duration patterns, and characterize the interfering signal so that you can identify and mitigate it. All of this allows you to restore system quality quickly.
Specifications:
| Frequency | ||
| Frequency Range | 100 kHz to 7 GHz | AC coupled. Select Option BB1 for low frequency performance enhancement |
| Internal 10 MHz Frequency reference accuracy | ||
| Aging rate | +1 ppm/year | |
| Temperature stability | +1 ppm | Referenced to frequency reading at 25 °C. Temperature varied at max. of 2 °C per minute. Control voltage held at voltage control range midpoint |
| Frequency readout accuracy with marker (start, stop, center, marker) | ||
| Marker resolution | (frequency span)/(sweep points - 1) | |
| Uncertainty | ± (frequency indication × frequency reference uncertainty + 1% × span + 20% × resolution bandwidth + marker resolution + 1 Hz) | Frequency reference uncertainty = (aging rate × period of time since adjustment + temperature stability) |
| Marker frequency counter | ||
| Resolution | 1 Hz | |
| Accuracy | ± (marker frequency × frequency reference uncertainty + counter resolution) | RBW/span ≥ 0.02; marker level to displayed noise level > 25 dB; frequency offset 0 Hz |
| Frequency span | ||
| Range | 0 Hz (zero span), 100 Hz to 7 GHz | |
| Resolution | 1 Hz | |
| Accuracy | ± (0.22% × span + span/(sweep points - 1)) | Nominal |
| SSB phase noise | ||
| Carrier offset | 30 kHz < –86 dBc/Hz, typical –89 dBc/Hz 100 kHz < –97 dBc/Hz, typical –99 dBc/Hz 1 MHz < –115 dBc/Hz, typical –119 dBc/Hz |
20 to 30 °C Center frequency 500 MHz |
| Resolution bandwidth (RBW) | ||
| –3 dB bandwidth | 10 Hz to 3 MHz | 1-3-10 sequence |
| Accuracy | ± 5%, RBW = 10 Hz to 1 MHz ± 10%, RBW = 3 MHz |
Nominal |
| Resolution filter shape factor | < 5:1 | Nominal; 60 dB/3 dB bandwidth ratio; digital, Gaussian-like |
| EMI bandwidth (CISPR compliant) | 200 Hz, 9 kHz, 120 kHz, 1 MHz | Option EMC required |
| Accuracy | ± 10% nominal | |
| Resolution filter shape factor | < 5:1 nominal | −60 dB/−6 dB bandwidth ratio |
| Video bandwidth (VBW) | ||
| –3 dB bandwidth | 1 Hz to 3 MHz | 1-3-10 sequence |
| Accuracy | ± 10%, VBW = 1 Hz to 1 MHz | Nominal |
| Amplitude Measurement range | ||
| 100 kHz to 2 MHz | Displayed average noise level (DANL) to +10 dBm | Preamp off |
| 2 MHz to 7 GHz | Displayed average noise level (DANL) to +20 dBm | |
| Input attenuator range | 0 to 50 dB, in 1 dB steps | |
| Maximum safe input level | ||
| Average continuous power | +33 dBm, 3 minutes maximum | Input attenuator setting ≥ 20 dB, 2 MHz to 7 GHz |
| DC voltage | ± 50 VDC maximum | |
| Displayed average noise level | ||
| Preamp off | Normalized to 1 Hz | Minimum RBW |
| 100 kHz to 1 MHz | –108 dBm, typical –127 dBm | –98 dBm, typical –117 dBm |
| 1 to 10 MHz | –128 dBm, typical –146 dBm | –118 dBm, typical –136 dBm |
| 10 to 500 MHz | –142 dBm, typical –146 dBm | –132 dBm, typical –136 dBm |
| 500 MHz to 2.5 GHz | -141 dBm, typical –145 dBm | –131 dBm, typical –135 dBm |
| 2.5 to 4 GHz | –140 dBm, typical –144 dBm | –130 dBm, typical –134 dBm |
| 4 to 6 GHz | –138 dBm, typical –142 dBm | -128 dBm, typical –132 dBm |
| 6 to 7 GHz | –136 dBm, typical –140 dBm | –126 dBm, typical –130 dBm |
| Preamp on | Normalized to 1 Hz | Minimum RBW |
| 100 kHz to 1 MHz | –131 dBm, typical –150 dBm | –121 dBm, typical –140 dBm |
| 1 to 10 MHz | –148 dBm, typical –163 dBm | –138 dBm, typical –153 dBm |
| 10 to 500 MHz | –161 dBm, typical –164 dBm | –151 dBm, typical –154 dBm |
| 500 MHz to 2.5 GHz | –159 dBm, typical –162 dBm | –149 dBm, typical –152 dBm |
| 2.5 to 4 GHz | –158 dBm, typical –161 dBm | –148 dBm, typical –151 dBm |
| 4 to 6 GHz | –155 dBm, typical –158 dBm | –145 dBm, typical –148 dBm |
| 6 to 7 GHz | –150 dBm, typical –154 dBm | –140 dBm, typical –144 dBm |
| Level display range | ||
| Log scale | 10 to 100 dB, 10 divisions displayed, 1, 2, 5, 10 dB/division | |
| Linear scale | 0 to 100%, 10 divisions displayed | |
| Scale units | dBm, dBmV, dBμV, W, V, dBmV EMF, dBμV EMF, V EMF | |
| Sweep (trace) points | 461 | |
| Number of markers | 6 | |
| Marker functions | Normal, frequency counter, noise marker, band power and AM/FM demod (tune and listen) | |
| Marker level readout resolution | Log scale 0.01 dB Linear scale ≤ 1% of signal level |
Nominal |
| Detectors | Normal, positive peak, sample, negative peak, average (video, RMS, voltage), quasi-peak (option EMC required) | |
| Number of traces | 4 | |
| Trace functions | Clear/write, maximum hold, minimum hold, average | |
| Level measurement error | Excluding input VSWR mismatch ± 1.5 dB | 20 to 30 °C, 30 to 70% RH, peak detector, preamp off, input signal –50 to 0 dBm, 95% percentile Swp Time Rule is set to Accuracy Adds ± 0.3 dB when Swp Time Rule is set to Speed Adds ±0.4 dB with 5-min warm-up |
| Reference level | ||
| Setting range | –100 to 30 dBm | Steps of 1 dB |
| Setting resolution | Log scale 0.01 dB Linear scale Same as log (2.236 µV to 7.07 V) |
|
| Accuracy | 0 | |
| RF input VSWR (at tuned frequency) | ||
| 10 MHz to 3 GHz | < 1.5:1 | Nominal, 10 or 20 dB attenuation |
| 3 to 7 GHz | < 2.0:1 | |
| Spurious response | ||
| Second harmonic distortion | < –65 dBc, 50 MHz to 3 GHz < –70 dBc, 3 to 7 GHz |
Mixer signal level at –30 dBm, input attenuation 0 dB, preamp off, 20 to 30 °C |
| Third order intermodulation distortion (third order intercept) | 5-min warm-up 50 to 300 MHz +5.5 dBm +8.5 dBm 30-min warm-up +7 dBm +10 dBm |
Two –20 dBm tones at input mixer, spaced by 100 kHz, input attenuation 0 dB, preamp off, reference level ≥ –30 dBm, 20 to 30 °C |
| Input related spurious | 5 min warm-up < –73.5 dBc 30-min warm-up < –75 dBc |
–30 dBm signal at input mixer Exception: –65 dBc (F1-21.4 MHz, with F1 input frequency) –65 dBc (F1-5.35 MHz, with F1 input frequency) –65 dBc (F1=4155 MHz, with F1 input frequency |
| Inherent residual response | 5-min warm-up < –85 dBm, typical –93 dBm 30-min warm-up < –90 dBm, typical –98 dBm |
Input terminated and 0 dB RF attenuation, preamplifier off |
| Sweep time | ||
| Range | 2 ms to 1000 s 600 ns to 200 s |
Span ≥ 100 Hz Span = 0 Hz (zero span) |
| Sweep mode | Continuous, single | |
| Sweep time rule | Accuracy, speed | |
| Trigger source | Free run, video, external, RF burst | |
| Trigger slope | Selectable positive or negative edge | |
| Trigger delay | ± 12 ms to ± 12 s | Nominal, span = 0 Hz (zero span) |
| RF input | ||
| Connector and impedance | Type-N female, 50 Ω | Nominal |
| 10 MHz reference/external trigger input | ||
| Reference input frequency | 10 MHz | |
| Reference input amplitude | 0 to +10 dBm | |
| Trigger voltage | 5 V TTL level | Nominal |
| Connector | BNC female, 50 Ω | Nominal |
| Probe power | ||
| Voltage/current | +15 Vdc, ± 7% at 0 to 150 mA (nominal) –12.6 Vdc, ± 10% at 0 to 150 mA (nominal) GND |
|
| Connectivity | ||
| USB host | USB Type-A female, compatible with USB 2.0 full speed | |
| USB device | USB Type-mini AB female, compatible with USB 2.0 full speed | |
| LAN | RJ-45, 10 Base-T | |
| Display | ||
| Resolution | 640 pixels x 480 pixels | |
| Size and type | 170 mm (6.5 in) TFT color display | |
| Internal Memory | ||
| System memory | 64 MB | For system use. Not user accessible. |
| User memory | 64 MB | User accessible. Able to store about 14,000 traces |
| Languages | ||
| On-screen GUI | English, Simplified Chinese, Traditional Chinese, French, German, Italian, Japanese, Korean, Russian, Spanish, Portuguese | |
| Power requirements and calibration | ||
| Adaptor voltage | 100 to 240 V AC, 50 to 60 Hz 15 V DC, 5.3 A, 80 W max |
Auto-ranging |
| Power consumption | 15 W | Typical |
| Battery operating time (fully charged battery) | 4 hours 3 hours |
Tracking generator off, preamplifier on Tracking generator off, preamplifier on |
| Charging time | 3 hours | |
| Life time | 300 to 500 charge cycles | |
| Warm-up time | 5 minutes | |
| Environmental and size | ||
| Temperature range | -10 to +50 °C –40 to +70 °C |
Operating (battery: 0 to 50 °C) Storage (battery: –20 to 50 °C) |
| Altitude | 9,144 meters (30,000 feet) 3,000 meters (9,840 feet) 15,240 meters (50,000 feet) |
Operating with battery Operating with AC to DC adapter Non-operating |
| Relative humidity | < 95% | |
| Weight | 3.2 kg (7 Ibs | Net (shipping) approximately, 3.6 kg (7.9 Ibs) with battery |
| Dimensions | 318 mm × 207 mm × 69 mm (12.5 in x 8.15 in x 2.7 in) | Approximately (W × H × D) |
For full Agilent N9342C Spectrum Analyzer product specifications, please click here: Agilent N9342C

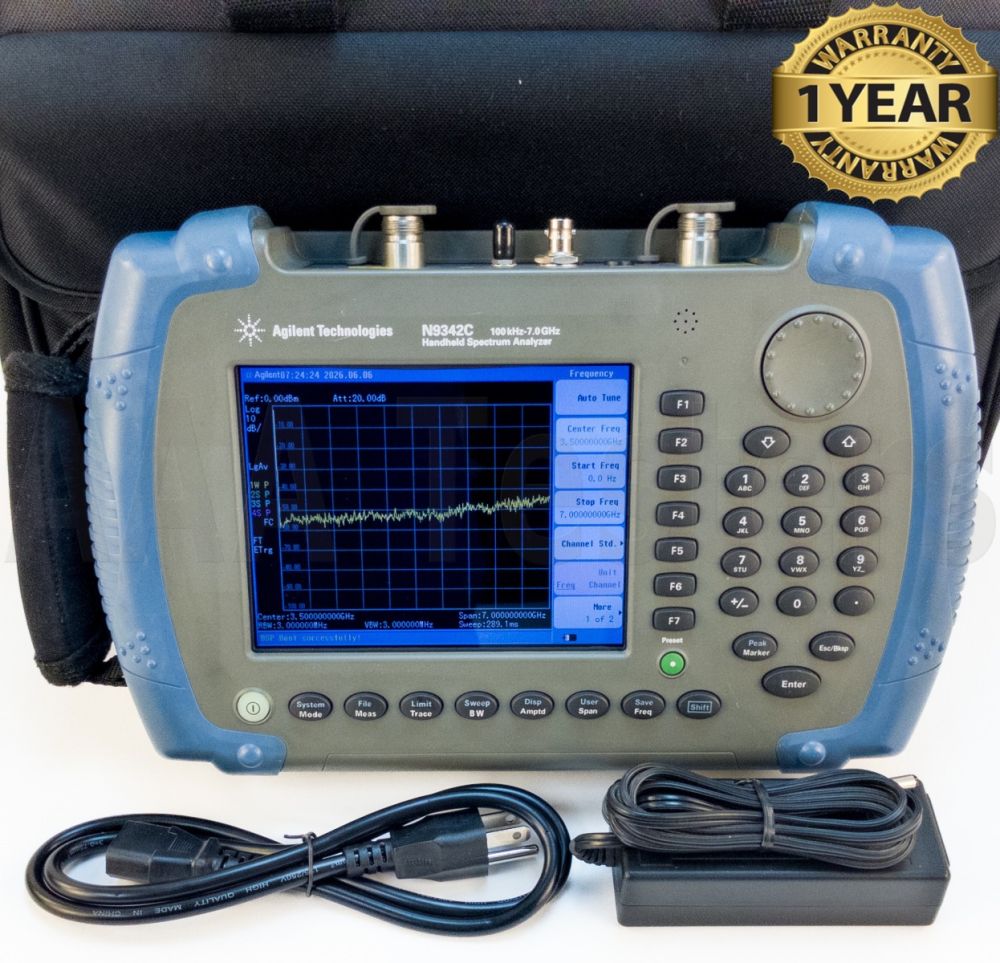

Agilent Keysight N9342C 7GHz Handheld Spectrum Analyzer
The Keysight N934X Series lets you automate routine tasks to save time and ensure consistent results. Field testing just got easier with the Keysight N9342C Spectrum analyzer
Frequency Range: 100 kHZ to 7 gHZ
Includes Carrying Case & Accessories As Listed
BC# -L/T*
Agilent HSA N9342C HSA-N9342C Spectrum Analyzer Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
- Agilent Keysight N9342C 7GHz Handheld Spectrum Analyzer (BC# -L/T*)
- Quick Start Tutorial
- Ear Phone
- USB Cable
- Battery Pack
- AC Adapter/Charger
- User Manual on Cd-ROM
- Carrying Case
