Keysight N9917A FieldFox Cable Antenna Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Agilent N9917A FieldFox
Carry Precision with You
Measuring up and earning a spot in your field kit is the driving idea
behind Keysight’s FieldFox handheld analyzers. They’re equipped to handle
routine maintenance, in-depth troubleshooting and anything in between. Better
yet, FieldFox delivers precise microwave and millimeter-wave measurements -
wherever you need to go.
Why choose FieldFox?
- Measure with confidence - precise measurements agree with benchtop results
- Withstands your toughest working environments - rugged enough to meet MIL-specs
- Weighs less than alternative solutions - 7.1 lb (3.2 kg)
Leverage Our Legacy of Measurement Leadership
With FieldFox, you’re carrying the precision of our industry-standard
benchtop analyzers. By delivering levels of consistency not available in any
other handhelds, FieldFox ensures confidence in your results.
Inside, we leveraged well-tested algorithms from Keysight’s high-
performance VNAs. To lighten your load, we simplified calibration by adding
built-in standards and eliminating the need to carry calibration kits.
To enhance spectrum analysis, FieldFox includes the same PowerSuite measurements
used in Keysight signal analyzers, enabling fast, accurate, one- button
characterization of channelized communication systems. The InstAlign capability
lets you instantly make accurate power measurements in the field, even when
temperature fluctuates.
Configuration:
| CAT/ vector network analysis | |
| Cable and antenna analyzer | Yes |
| VNA transmission/reflection | Yes |
| VNA full 2-port S-parameters | Yes |
| 1-port mixed-mode S-parameters | Yes |
| VNA time domain | Yes |
| QuickCal | Yes |
| TDR cable measurements | Yes |
| Vector voltmeter | Yes |
| Spectrum analysis | |
| Spectrum analyzer | Yes |
| Extended range transmission analysis (ERTA) | Yes |
| Tracking generator | Yes |
| Pre-amplifier | Yes |
| Interference analyzer and spectrogram | Yes |
| Spectrum analyzer time gating | Yes |
| Channel scanner | Yes |
| Analog demodulation | Yes |
| Power measurements | |
| USB power sensor meas. versus frequency | Yes |
| USB power sensor support | Yes |
| Pulse meas. with USB peak power sensor | Yes |
| Built-in power meter | Yes |
| System features | |
| Remote control capability | Yes |
| GPS receiver | Yes |
| DC bias variable-voltage source | Yes |
| Note: | Most of the features listed here require an option. |
Specifications:
| CAT and VNA frequency | 30 kHz to 18 GHz |
| Spectrum analyzer frequency | 100 kHz to 18 GHz |
| General Information | |
| Weight | 3.0 kg or 6.6 lb. including battery |
| Dimension H x W x D | 292 x 188 x 72 mm (11.5" x 7.4" x 2.8") |
| Battery | Lithium ion, 10.8 V, 4.6 A-h, 3.5 hours (typical) |
| Environmental | |
| MIL-PRF-28800F Class 2 | Operating temperature, storing temperature, storing temperature, operating humidity, random vibration, functional shock, bench drop |
| MIL-STD-810G, Method 511.5 | This product has been type tested to meet the requirements for operating in explosive environments in accordance with MIL-STD810G, Method 511.5, Procedure 1. |
| Ingress protection | This product has been type tested to meet the requirements for ingress protection IP53 in accordance with IEC/EN 60529 (IP rating for instrument by itself with no cover). |
| Complies with European EMC directive | IEC/EN 61326–1 CISPR Pub 11 Group 1, Class B, Group 1 limit of CISPR 11:203/EN 55011:2007 AS/NZS CISPR 11 ICES/NMB–001 |

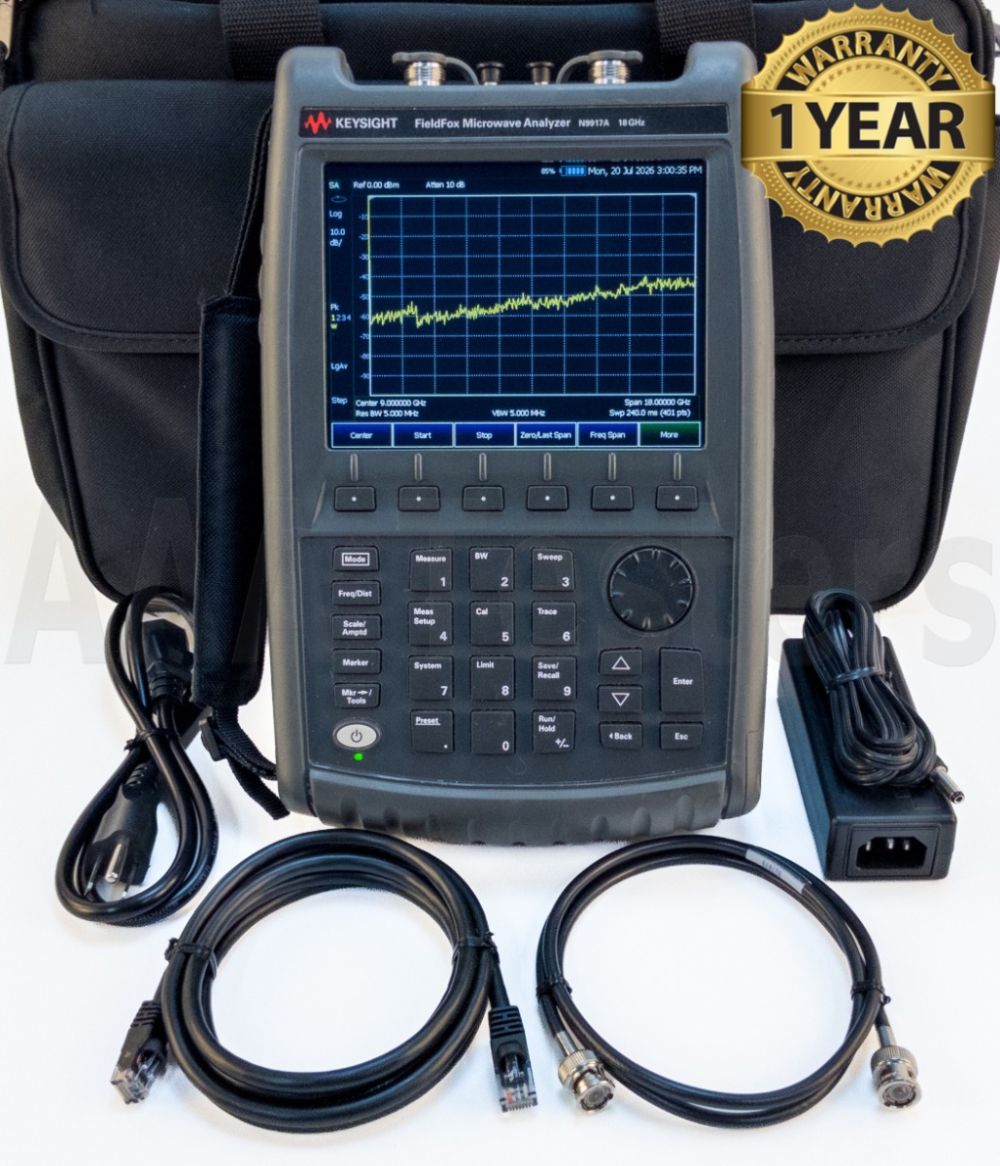

Agilent N9917A FieldFox RF Cable Antenna Combination Analyzer
CAT & VNA Frequency: 30 kHz to 18 GHz
Includes Carrying Case & Accessories As Listed
BC# -L/T*
Agilent N9917A N-9917A Cable Antenna Analyzer Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
- Agilent N9917A FieldFox RF Combination Analyzer (BC# -L/T*)
- Ethernet Cable
- AC Adapter/Charger
- Power Cord
- Battery Pack
- Quick Reference Guide
- Carrying Case
