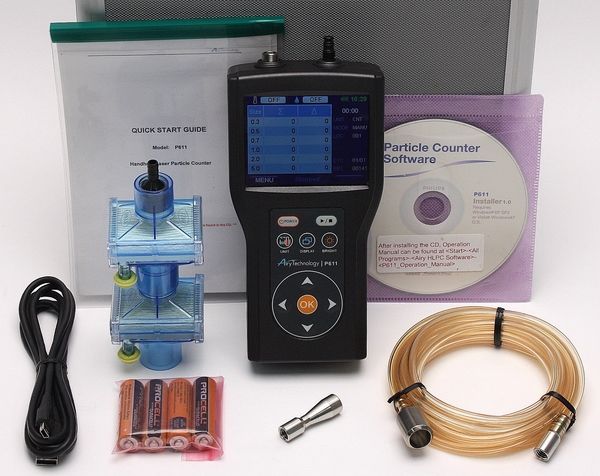

Airy Technology P611 Laser Particle Counter

• Airy Technology P611 Handheld Particle Counter (BC# 27651)
• Airy Particle Filter
• IsoKinetic Inlet
• Tubing w/ (2) Inlets
• (4) AA Batteries
• P611 Quick Start Guide
• USB PC Interface Cable
• User Manual On CD-ROM
• Hard Carrying Case

 Airy Technology P611 Particle Counter
The Airy Technology P611 handheld particle counter measures 0.3 µm to 10.0 µm with a flow rate of 0.1 CFM (2.83 LPM).

Only 1.26 lb (0.57 kg), user-friendly and easy to configure, this handheld particle counter displays 6 size channels as well as (optional) temperature and relative humidity on its 3.5ﾔ color LCD display.

The Airy Technology P611 stores 10,000 sample records that can be viewed on the unit or on a computer via USB cable. The P611 complies with ISO 21501-4. With excellent quality and reliable performance, the Airy Technology P611 is the best solution for professionals who validate ISO cleanrooms (Class 5 - 9) and investigate indoor air quality matters.

Features:

• Measures 0.3 µm to 10.0 µm
• 0.1 CFM (2.83 LPM) flow rate
• Measures 6 channels of simultaneous data
• Weights only 1.26 lb (0.57 kg)
• Removable and rechargeable AA batteries
• Long life laser diode
• Large color LCD display
• Stores up to 10,000 sample records and 999 sample locations
• View data recorded on-screen or via computer
• Concentration limit of 4,000,000 per ft
• Complies with ISO 21501-4 and JIS B9921 standards
• Reports ISO 14644-1 and EU GMP
• Lightweight high-impact injection molded plastic enclosure
• USB output
• Easy to clean and wipe down
• Internal audible alarm

Specifications:

Size Range	0.3 -10.0 µm
Channel Sizes	Standard: 0.3, 0.5, 0.7, 1.0, 2.0, 5.0 µm Standard: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm Standard: 0.3, 0.5, 0.7, 1.0, 2.5, 5.0 µm Standard: 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm
Counting Efficiency	50% at 0.3 µm; 100% for particles > 0.45 µm (per JIS)
Concentration Limits	4,000,000 particles / ft3 at 5% coincidence loss
Light Source	Long life laser diode
Zero Count Level	<1 count / 5 minutes (per JIS B9921)
Size Resolution	<15% at 0.5 µm (per ISO 21501-4)
Flow Rate	0.1 CFM (2.83 LPM)
Flow Rate Control	Automatic flow control
Calibration	NIST traceable
Sample Probe/Tubing	Isokinetic sampling probe and probe for tubing
Sampling Modes	Manual, automatic, ISO1 GMP2 , cumulative/differential, count/concentration
Reports	ISO 14644-1 and EU GMP
Sampling Time	1 second to 99 minutes 59 seconds (configurable)
Sampling Frequency	1 to 9999 cycles or continuous (configurable)
Sample Output	Internal HEPA filter
Vacuum Source	Internal pump
Communication Interface	USB
Data Storage	10,000 sample records
Security	2-level password protection
Alarm	Counts, low battery, flow and laser status
Display	3.5ﾔ (8.9 cm) 320 x 240 Color LCD
Power	DC 5V 1A (Mini USB TYPE-B)
Battery	Removable AA Ni-MH
Dimensions (L x W x H)	7ﾔ x 3.5ﾓ x 1.9ﾔ (17.8 cm x 9 cm x 4.7 cm) does not include probes
Weight	1.26 lb (.57 kg)
Standards	ISO 21501-4 and JIS B9921
Operating Conditions	5° to 35°C 20% to 95%RH non-condensing
Storage Conditions	-20° to 50°C Up to 98%RH non-condensing

For full Airy Technology P611 product specifications, please click here: Airy Technology P611

Click here to view datasheet
