Ando AQ-7155 Singlemode Fiber Mini OTDR

$0.00

Availability: Out of stock

SKU

1A46

Condition: Refurbished / Calibrated

Warranty: 90 Day Exchange

Shipping: USA & Worldwide

Request a Quote

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Company

E-mail address

First Name

Phone Number

Last Name

Country

Comment

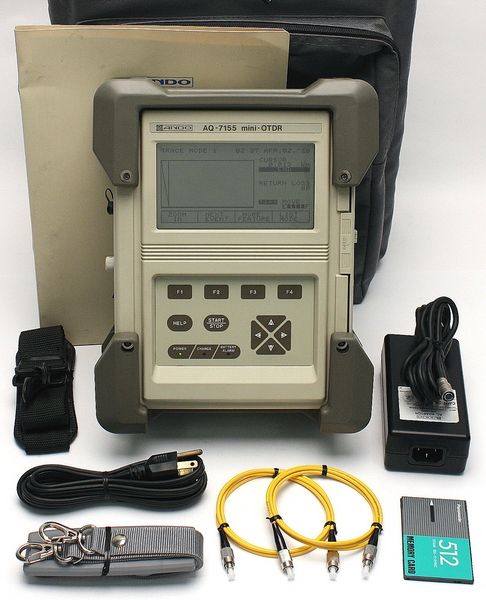

Included

Ando AQ-7155 Singlemode Mini Fiber OTDR (BC# 24798)
- SM OTDR Source:
  - 1310nm
  - 1550nm
- FC Connector For Source
512 MB Memory Card
(2) SM FC-FC Fiber Cables
AC Adapter/Charger
Power Cord
Hard Copy User Manual
Strap For Unit
Carrying Case w/ Strap

Description

Ando AQ-7155 SingleMode Fiber OTDR

Features:

Small size and light weight
- The AQ-7150 Series is 1/5 the size and weight of our existing full-size OTDR units.
Simple Operation
- Measurement can be performed by the press of a single button.
Battery operation
- Battery operation allows the unit to be used in the field.
Convenient memory function
- Data can be stored on an PCMCIA memory card. The data on the memory card can be analyzed on an IBM-compatible personal computer using emulation software (which is sold separately)
Data Print-Out
- SET UP conditions, data lists and measured traces can be printed out.

With these features, this unit can be widely used to measure fiber cable from subscriber lines to repeater systems and has applications from cable installation to restoration and maintenance.

Specifications:

Wavelength	1.31 µm / 1.55 µm
Distance range	5 km, 10 km, 20 km, 40 km, 80 km
Detection measurement range	18 / 16 dB
Dynamic Range (typical)	23 / 22 dB
Dead zone	Less than 10 m, Typical 7 m (reflective) Less than 50 m , Typical 30 m (backscatter)
Distance resolution	1 m (5, 10 km range)
Measurement time	Approx. 20 sec. (5 km range) Approx. 90 Sec. (40 km range)
Display	LCD (backlit) Data display: Measurement result lists, measured traces
Measurement times	Break points detection, splice loss measurement, reutnr loss measuremnet, distance and loss between two points
Optical connector	Universal type (FC-PC is standard)
Memory	IC memory card interface
Printer interface	RS-232C standard
Power Requirements	AC 100-240V (actual value 90-264V) 50/60 Hz, 18 VAmax rechargeable battery 5H (typical)
Environmental conditions	Operating temperature: 0 to 40°C, humidity: 85% or less Storage temperature: -20 to 60°C
Dimensions & Mass	Approx. 258x198x77mm , 2.8kg / 6.2 lbs.
