Anritsu MS2723C Spectrum Master Analyzer
$8,195.00
Availability:
Out of stock
SKU
9S69
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
Request a Quote for

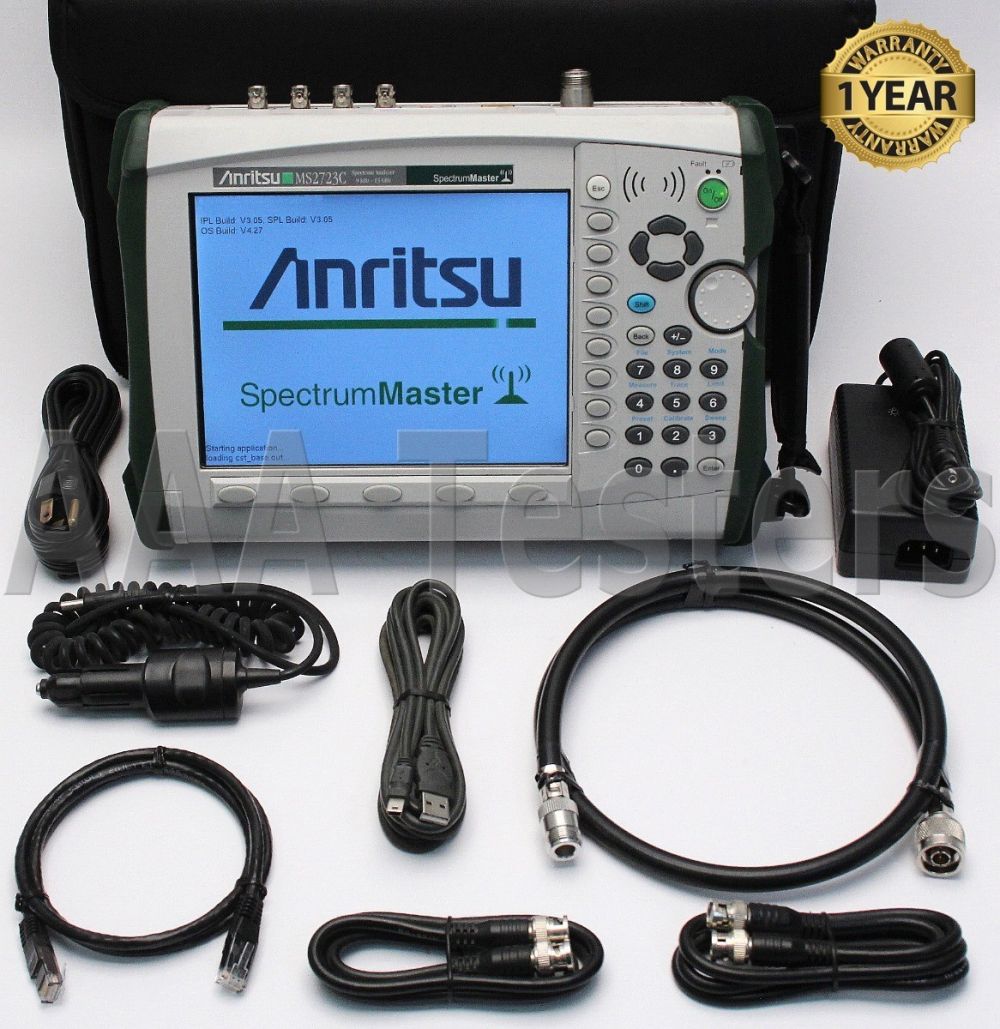

- Anritsu MS2723C Spectrum Master Analyzer (BC# 43465-L/T*)
- Installed Options:
- Option 9: Gated Sweep
- Option 25: Interference Analyzer
- Option 27: Channel Scanner
- Option 31: GPS
- Option 33: cdmaOne/CDMA2000 1X Over-the-Air Measurements
- Option 34: CDMA2000 1xEV-DO Over-the-Air Measurements
- Option 35: W-CDMA/HSDPA Over-the-Air Measurements
- Option 37:IEEE 802.16 Mobile WiMAX Over-the-Air Measurements
- Option 38: TD-SCDMA/HSDPA Over-the-Air Measurements
- Option 40: GSM/GPRS/EDGE RF Measurements
- Option 41: GSM/GPRS/EDGE Demodulation
- Option 42: CDMA Signal Analyzer RF Measurements
- Option 43: CDMA Signal Analyzer Demodulation
- Option 44: W-CDMA/HSPA+ Signal Analyzer RF Measurements
- Option 60: TD-SCDMA/HSDPA Measurements
- Option 61: TD-SCDMA/HSDPA Demodulation
- Option 62: EV-DO Signal Analyzer RF Measurements
- Option 63: EV-DO Signal Analyzer Demodulation
- Option 65: W-CDMA/HSPA+ Signal Analyzer Demodulation
- Option 66: RF Mobile WiMAX1 Signal Analyzer
- Option 67: Demodulation Mobile WiMAX1 Signal Analyzer
- Option 541: RF LTE Signal Analyzer
- Option 542: Modulation LTE Signal Analyzer
- Option 543: 15 MHz, 20 MHz LTE Measurements
- Option 546: LTE Over-the-Air Measurements
- Option 551: TD-LTE RF Measurements
- Option 552: TD-LTE Modulation Measurements
- Option 556: TD-LTE Over-the-Air Measurements
- Installed Options:
- Armored Test Port Cable
- (2) BNC Cables
- Ethernet Cable
- DC Car Charger
- AC Adapter/Charger
- Power Cord
- USB PC Interface Cable
- User Manual On CD-ROM
- Carrying Case (G)
Anritsu MS2723C Spectrum Master
Anritsu’s high performance handheld spectrum analyzer provides the wireless professional the performance needed for the most demanding measurements in harsh RF and physical environments. Whether it is for spectrum monitoring, broadcast proofing, interference analysis, RF and microwave measurements, regulatory compliance, or Wi-Fi and wireless network measurements, the Spectrum Master is the ideal instrument for making fast and reliable measurements.
Spectrum and Interference Analyzer Highlights
- Measure: Occupied Bandwidth, Channel Power, ACPR, C/I
- Interference Analyzer: Spectrogram, Signal Strength, RSSI
- Dynamic Range: > 104 dB in 1 Hz RBW
- DANL: –160 dBm in 1 Hz RBW
- Phase Noise: –100 dBc/Hz @ 10 kHz offset at 1 GHz
- Frequency Accuracy: ±25 ppb with GPS On
- 1 Hz to 10 MHz Resolution Bandwidth (RBW)
- Traces: Normal, Max Hold, Min Hold, Average, # of Averages
- Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
- Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
- Limit Lines: up to 40 segments with one-button envelope creation
- Trace Save-on-Event: crossing limit line or sweep complete
Capabilities and Functional Highlights
- LTE, TD-LTE
- GSM/EDGE
- W-CDMA/HSPA+
- TD-SCDMA/HSPA+
- CDMA, EV-DO
- Fixed, Mobile WiMAX
- AM/FM/SSB Demodulator
- Zero-span IF Output
- Gated Sweep
- GPS tagging of stored traces
- Internal Preamplifier standard
- High Accuracy Power Meter
- 4, 6, 8, 18, 26 GHz USB Sensors
- Channel Scanner
- 8.4 inch Display
- Burst Detect
- < 5 minute warm-up time
- 2.5 hour battery operation time
- Ethernet/USB Data Transfer
- MST Remote Access Tool
Specifications:
| Measurements | |
| Smart Measurements | Field Strength (uses antenna calibration tables to measure dBm/m2,
dBW/m2, V/m, A/m, Watt/m2, Watt/cm2, or dBmV/m) Occupied Bandwidth (measures 99 % to 1 % power channel of a signal) Channel Power (measures the total power in a specified bandwidth) ACPR (adjacent channel power ratio) AM/FM/SSB Demodulation (wide/narrow FM, upper/lower SSB), (audio out only) C/I (carrier-to-interference ratio) Emission Mask (recall limit lines as emission mask) |
| Setup Parameters | |
| Frequency | Center/Start/Stop, Span, Frequency Step, Signal Standard, Channel # |
| Amplitude | Reference Level (RL), Scale, Attenuation Auto/Level, RL Offset, Pre-Amp On/Off, Detection |
| Span | Span, Span Up/Down (1-2-5), Full Span, Zero Span, Last Span |
| Bandwidth | RBW, Auto RBW, VBW, Auto VBW, RBW/VBW, Span/RBW |
| File | Save, Recall, Delete, Directory Management |
| Save/Recall | Setups, Measurements, Limit Lines, Screen Shots JPEG (save only), Save-on-Event |
| Save-on-Event | Crossing Limit Line, Sweep Complete, Save-then-Stop, Clear All |
| Delete | Selected File, All Measurements, All Mode Files, All Content |
| Directory Management | Sort Method (Name/Type/Date), Ascend/Descend, Internal/USB, Copy |
| Application Options | Impedance (50 Ω, 75 Ω, Other) |
| Sweep Functions | |
| Sweep | Single/Continuous, Manual Trigger, Reset, Detection, Minimum Sweep Time, Trigger Type |
| Sweep Mode | Fast, Performance, No FFT, Burst Detect |
| Detection | Peak, RMS/Avg, Negative, Sample, Quasi-peak |
| Triggers | Free Run, External, Video, Delay, Level, Slope, Hysteresis, Holdoff, Force Trigger Once |
| Trace Functions | |
| Traces | Up to three Traces (A, B, C), View/Blank, Write/Hold, Trace A/B/C Operations |
| Trace A Operations | Normal, Max Hold, Min Hold, Average, # of Averages, (always the live trace) |
| Trace B Operations | A –> B, B <–> C, Max Hold, Min Hold |
| Trace C Operations | A –> C, B <–> C, Max Hold, Min Hold, A – B –> C, B – A –> C, Relative Reference (dB), Scale |
| Marker Functions | |
| Markers | Markers 1-6 each with a Delta Marker, or Marker 1 Reference with Six Delta Markers, Marker Table (On/Off/Large), All Markers Of |
| Marker Types | Style (Fixed/Tracking), Noise Marker, Frequency Counter Marker |
| Marker Auto-Position | Peak Search, Next Peak (Right/Left), Peak Threshold %, Set Marker to Channel, Marker Frequency to Center, Delta Marker to Span, Marker to Reference Level |
| Marker Table | 1-6 markers frequency and amplitude, plus delta markers frequency offset and amplitude |
| Limit Line Functions | |
| Limit Lines | Upper/Lower, On/Off, Edit, Move, Envelope, Advanced, Limit Alarm, Default Limit |
| Limit Line Edit | Frequency, Amplitude, Add Point, Add Vertical, Delete Point, Next Point Left/Right |
| Limit Line Move | To Current Center Frequency, By dB or Hz, To Marker 1, Offset from Marker 1 |
| Limite Line Envelope | Create Envelope, Update Amplitude, Number of Points (41), Offset, Shape Square/Slope |
| Limit Line Advanced | Type (Absolute/Relative), Mirror, Save/Recall |
| Frequency | |
| Frequency range | 9 kHz to 13 GHz (tunable to 0 Hz), Preamp 100 kHz to 13 GHz |
| Tuning Resolution | 1 Hz |
| Frequency Reference | Aging: ±1.0 ppm/10 years Accuracy: ±0.3 ppm (25 °C ±25 °C) + aging |
| Auto-sensing External Frequency Reference | 1, 1.2288, 1.544, 2.048, 2.4576, 4.8, 4.9152, 5, 9.8304, 10, 13, 19.6608 MHz |
| Frequency Span | 10 Hz to 13 GHz including zero span |
| Sweep Time | 10 µs to 600 seconds in zero span |
| Sweep Time Accuracy | ±2 % in zero span |
| Bandwidth (Performance Sweep Mode) | |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz in 1–3 sequence ±10 % (–3 dB bandwidth) |
| Video Bandwidth (VBW) | 1 Hz to 10 MHz in 1–3 sequence (–3 dB bandwidth) |
| RBW with Quasi-Peak Detection | 200 Hz, 9 kHz, 120 kHz (–6 dB bandwidth) |
| VBW with Quasi-Peak Detection | Auto VBW is On, RBW/VBW = 1 |
| Spectral Purity | |
| SSB Phase Noise at 1 GHz | –100 dBc/Hz @ 10 kHz offset from carrier (–104 dBc/Hz typical) –102 dBc/Hz @ 100 kHz offset from carrier (–107 dBc/Hz typical) –107 dBc/Hz @ 1 MHz offset from carrier (–114 dBc/Hz typical) –120 dBc/Hz @ 10 MHz offset from carrier (–129 dBc/Hz typical) |
| Amplitude Ranges | |
| Dynamic Range | > 104 dB @ 2.4 GHz, 2/3 (TOI-DANL) in 1 Hz RBW |
| Measurement Range | DANL to +30 dBm |
| Display Range | 1 to 15 dB/div in 1 dB steps, ten divisions displayed |
| Reference Level Range | –150 dBm to +30 dBm |
| Attenuator Resolution | 0 to 65 dB, 5 dB steps |
| Amplitude Units | Log Scale Modes: dBm, dBV, dBmv, dBµV Linear Scale Modes: nV, µV, mV, V, kV, nW, µW, mW, W, kW |
| Maximum Continuous Input | +30 dBm Peak, ±50 VDC (≥ 10 dB Attn) +23 dBm Peak, ±50 VDC (< 10 dB Attn) +13 dBm Peak, ±50 VDC (Preamp On) |
| Amplitude Accuracy | |
| 20 °C to 30 °C after 30 minute warm-up | Typical: ±0.5 dB, 100 kHz to 13 GHz Maximum: ±1.3 dB, 100 kHz to 13 GHz |
| –10 °C to 50 °C after 60 minute warm-up | Add ±1.0 dB, 100 kHz to 13 GHz |
| Displayed Average Noise Level (DANL) | |
| DANL in 1 Hz RBW, 0 dB attenuation | 10 MHz to 4 GHz Preamp Off: –141 dBm Preamp On:
–160 dBm > 4 GHz to 9 GHz Preamp Off: –134 dBm Preamp On: –156 dBm > 9 GHz to 13 GHz Preamp Off: –129 dBm Preamp On: –152 dBm |
| Spurs | |
| Residual Spurs | Preamp Off (RF input terminated) –90 dBm 9 kHz to 13 GHz Preamp On (RF input terminated) –100 dBm 1 MHz to 13 GHz |
| Input-Related Spurs | (–30 dBm input, span < 1.7 GHz) –60 dBc, –70 dBc typical |
| Third-Order Intercept (TOI) | |
| 2.4 GHz 50 MHz to 13 GHz |
+15 dBm +20 dBm typical |
| P1dB | |
| < 4 GHz 4 GHz to 13 GHz |
+5 dBm typical +12 dBm typical |
| Second Harmonic Distortion | |
| 50 MHz < 4 GHz > 4 GHz |
–54 dBc –60 dBc typical –75 dBc typical |
| VSWR | |
| < 13 GHz | 1:5:1 typical |
