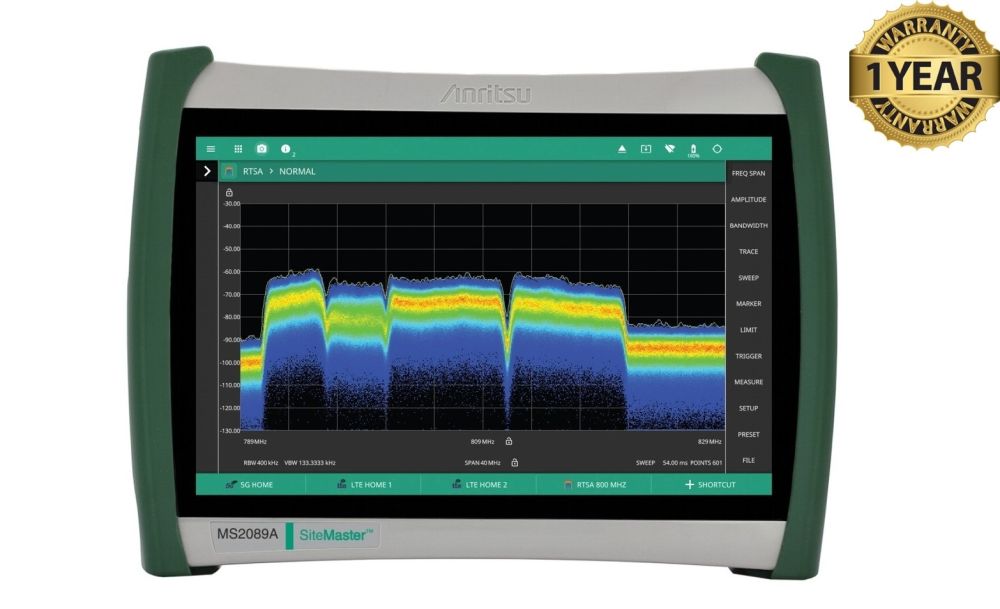

Anritsu MS2089A SiteMaster Handheld Cable and Antenna Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Anritsu SiteMaster MS2089A Cable & Antenna Analyzer (BC# -L/T*)
- Stylus
- AC Adapter/Charger
- Power Cord
- USB PC Interface Cable
- DC Car Charger
- User Manual On CD-ROM
- Carrying Case
Anritsu MS2089A SiteMaster Handheld Cable and Antenna Analyzer
Anritsu is proud to introduce its eighth generation compact handheld cable and antenna analyzer with spectrum analyzer for installation and maintenance of wireless networks. With frequency coverage up to 6 GHz, the new Site Master MS2085A/89A completely redefi nes the standards for portable handheld analyzers, setting another new industry benchmark for performance and accuracy. They feature the highest performance and the most capabilities ever offered by Anritsu in a compact handheld tester since introducing its fi rst line sweeper in 1995.
Key features include both traditional swept and real-time spectrum analysis capabilities, IQ capture and streaming, and built-in PDF report generation. The new MS2085A/89A is the culmination of over 60 years of microwave test and measurement equipment development, using the very latest technologies to deliver accuracy and precision in measurements previously reserved only for benchtop instruments.
Features:
- 5GNR FDD/TDD FR1 Analyzer
- LTE FDD and TDD Analyzer
- Real-Time Spectrum Analyzer
- Channel Scanner
- Spectrogram
- Gated Sweep
- AM/FM Audio Analysis
- Field Strength
- EIRP
- Occupied Bandwidth
- Channel Power
- High Accuracy Power Measurements (external sensor sold separately)
- Adjacent Channel Power
- Spectral Emissions Mask
- Signal Strength and RSSI
- Carrier Aggregation
- Coverage Mapping in SPA, 5GNR, and LTE
- Interference Finder
- Carrier-to-Interference
- WCDMA Analyzer
- Trace Recording/Playback
- IQ Waveform Capture/Streaming
Specifications:
| Cable & Antenna Analyzer | |
| Frequency | 5 kHz up to 6 GHz |
| Sweep Time | 350 µs/data point, RF immunity low |
| Corrected Directivity | > 40 dB, typical, InstaCal™ Calibration |
| Spectrum Analyzer | |
| Frequency | 9 kHz up to 6 GHz |
| Sweep Speed | 45 GHz/s (Option 102 |
| Dynamic Range | >106 dB minimum at 2.4 GHz, 2/3 (TOI-DANL) in 1 Hz RBW |
| DANL | –167 dBm Typical with Preamp On |
| Phase Noise | –123 dBc/Hz, 1 GHz, 1 MHz offset, typical |
| General | |
| Connectivity | Ethernet, Wi-Fi, USB |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Operating Temperature | –10 ºC to 55 ºC |
| Battery Life | 9 hours operation* |
| Dimensions | 290 mm x 212 mm x 96 mm (11.4 in x 8.3 in x 3.7 in) |
| Weight | MS2089A-0704, 0804, 0706, 0806: 3.8 kg (8.39 lb) with Option 21 |
