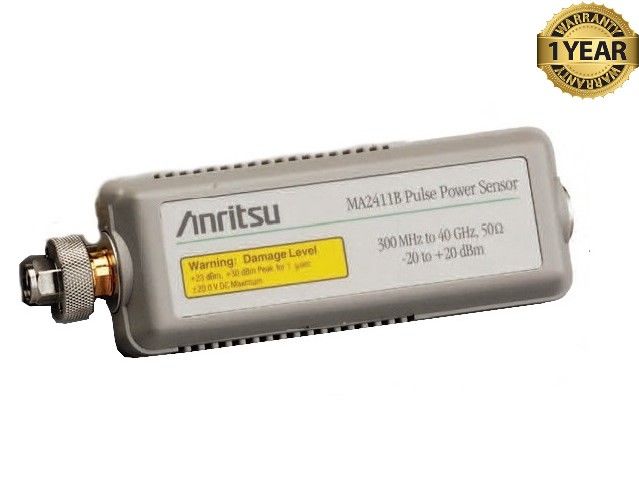

Anritsu MA2411B Pulse Power Sensor
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Anritsu MA2411B Pulse Power Sensor (BC# -L/T*)
Anritsu MA2411B Pulse Power Sensor
The Anritsu MA2411B pulse power sensors are designed for use with the ML2480 and ML2490 series power meters. These sensors are used for pulse profiling and provide peak, crest factor, average power, rise time, fall time, maximum power, minimum power and statistical data of wideband signals.
The pulse sensor MA2411B has been specifically designed for a wide video bandwidth of 65 MHz, providing a fast rise time of better than 8 ns. This power sensor does not contain a FET switch for low-level CW applications. Use this sensor for the most demanding rising edge measurements such as radar, and wideband measurements on OFDM, multi-carrier signals.
Features:
- Ideal for measuring Pulsed Radar and Communication signals
- 50 MHz video bandwidth
- Upper measurement frequency range of 40 GHz
- The industry best 8 ns rise time
Specifications:
| Frequency Range |
300 MHz - 40 GHz |
| Dynamic Range |
-20 to +20 dBm |
| SWR | <1.15; 0.3-2.5 GHz <1.35; 2.5-26 GHz <1.50; 26-40 GHz |
| Rise Time (ns) | <8 |
| Sensor Linearity | <4.5% 0.3 to 18 GHz <7% 18 to 40 GHz |
| RF Connector | K (m) |
