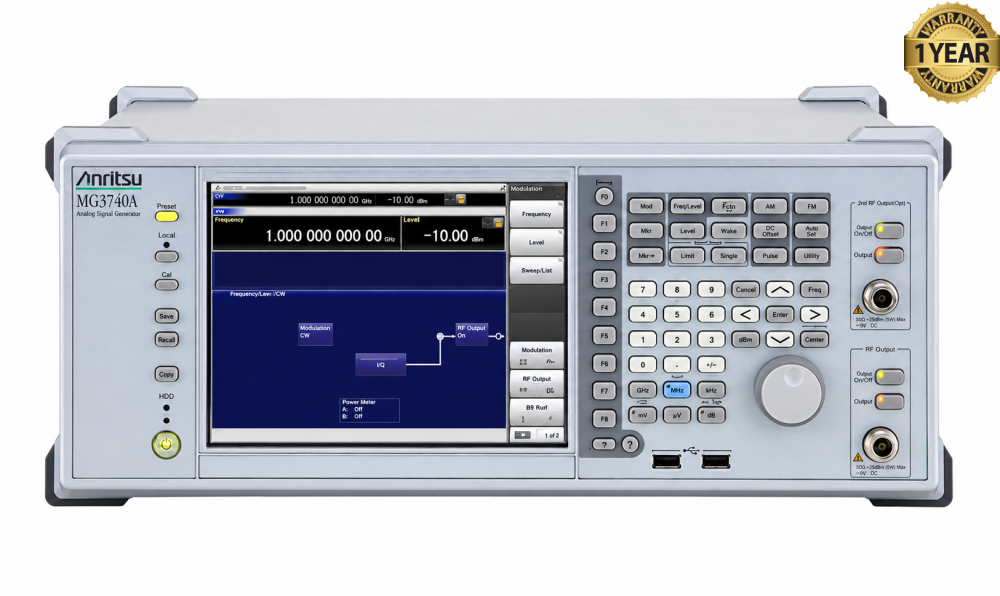

Anritsu MG3740A Analog Signal Generator

The Anritsu MG3740A Analog Signal Generator is an electronic test instrument that produces controlled radio-frequency (RF) signals. Engineers and technicians use these signals to test radios, receivers, and RF components during development, manufacturing, and maintenance. Depending on its installed frequency option, it operates from 100 kHz to 2.7 GHz, 4 GHz, or 6 GHz.

The instrument lets users set the frequency and strength of a signal applied to equipment under test. For example, a technician can reduce the signal level to determine how weak a transmission a receiver can detect. Its wide output-level range and low phase noise support repeatable receiver testing.

The MG3740A generates continuous-wave signals and includes amplitude modulation (AM), frequency modulation (FM), phase modulation, and pulse modulation as standard functions. These capabilities allow it to simulate different signal conditions and help evaluate how a radio processes and reproduces transmitted information.

An optional second RF output allows the generator to produce two independent signals simultaneously. This supports tests involving a desired transmission and an interfering signal, amplifier intermodulation measurements, and mixer evaluations requiring separate RF and local-oscillator signals. These functions depend on the installed Dual-RF configuration.

In practical use, the MG3740A helps characterize receiver sensitivity, bandwidth, demodulation performance, and resistance to interference. Optional digital modulation capability expands its use to narrowband digital radio testing, allowing an equipped instrument to support both analog and digital test applications.

Features:

• Frequency range: 100 kHz to 2.7, 4, or 6 GHz, depending on installed options.
• Continuous-wave output: Generates unmodulated RF signals.
• Built-in modulation: AM, FM, phase modulation, and pulse modulation.
• Low phase noise: Typically below −131 dBc/Hz at 1 GHz with a 20 kHz offset in CW mode.
• Standard output-level range: −110 to +17 dBm.
• Fast switching: Less than 600 µs in List/Sweep mode.
• Optional low-power extension: Output settings down to −144 dBm.
• Optional high-power output: Up to +23 dBm from 400 MHz to 3 GHz in CW mode.
• Optional dual RF outputs: Two independent signals for receiver and component testing.
• Optional external modulation input.
• Optional narrowband digital modulation: 2 MHz RF modulation bandwidth.
• Optional bit error rate measurement: Input rates from 100 bps to 40 Mbps.
• USB power-sensor support: Connects up to two compatible sensors, sold separately.
