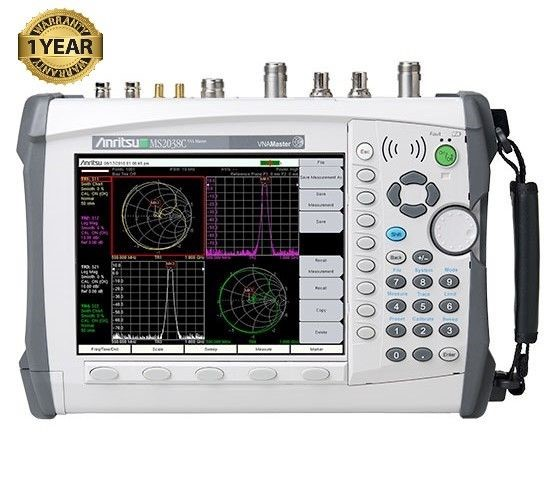

Anritsu MS2038C VNA Master & Spectrum Analyzer
$24,999.00
Availability:
In stock
SKU
6C233
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Anritsu MS2038C VNA Master & Spectrum Analyzer: (BC# -L/T*)
- AC Adapter/Charger
- Power Cord
- USB PC Interface Cable
- Ethernet Cable
- Carrying Case
Request a Quote for
Anritsu MS2038C VNA Master & Spectrum Analyzer
The VNA Master MS2038C is a handheld solution for 2-port, 2-path measurements. It specifically addresses complex coaxial, or waveguide measurement needs in the field with accurate, vector corrected 2-port magnitude, phase, and standard Distance-To-Fault measurements (requires firmware V1.16 or higher). The VNA Master MS2038C covers a frequency band from 5 kHz to 20 GHz, which contains a wide variety of radio frequency communications systems.
Vector Network Analyzer Performance and Functional Highlights
- Broadband coverage of 5 kHz to up to 20 GHz
- True 2-path, 2-port Vector Network Analyzer
- Ultimate accuracy with 12-term error correction
- High Performance Handheld S-Parameters
- User-defined Quad Display for viewing all 4 S-Parameters
- Arbitrary data points up to 4001
- IF Bandwidth selections of 10 Hz to 100 kHz
- Directivity: > 42 dB up to 6 GHz (all models) > 36 dB > 6 GHz up to 20 GHz (all models)
- Supports Reciprocal Through Calibration types (SOLR, SSLR, SSSR)
- All models support waveguide measurements
- 350 μs/data point sweep speed
- USB/Ethernet for PC data transfer and control
- Automate repetitive tasks via Ethernet & USB
- PIM Hunting
- Field upgradeable firmware
- Operation to +55 ºC: full performance on AC or battery
- Store more than 4000 traces and setups in memory
- Portable: 4.5/4.8 kg (9.9/10.5 lb)
- Time Domain (with gating) option
- Internal Bias Tee option
- Vector Voltmeter option
- High Accuracy Power Meter option
- Differential option (Sd1d1, Sc1c1, Sd1c1, and Sc1d1)
- Secure Data Operation option for safe use in high security environments
- GPS Receiver option
- Low Pass Stepped Response and Real Impedance graph type provide TDR functionality (standard capability with Time Domain option)
- Multiple display formats including Polar and Real Impedance
- Supports Anritsu USB Power Sensors
- 8.4 in, 800 x 600 high resolution, daylight-viewable TFT color display
- Complies with MIL-PRF-28800F Class 2, Certified for use in Explosive Atmosphere per MIL-PRF-28800F and MIL-STD-810G
Specifications:
| Frequency Range | 5 kHz to 20 GHz |
| Architecture: | True 2-path, 2-port VNA with 12-term error correction |
| Sweep Speed | 350 µs per data point (typical) |
| Measurements | S11, S21, S22, S12, and optional balanced/differential parameters |
| Calibration | SOLT, SSLT, SSST, SOLR, SSLR, SSSR |
| SPECTRUM ANAYZER PERFORMANCE | |
| Frequency Range | 9 kHz to 20 GHz |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Dynamic Range | > 104 dB to 106 dB in 1 Hz RBW |
| DANL (Noise Floor) | –160 dBm in 1 Hz RBW |
| Phase Noise | –100 dBc/Hz at 10 kHz offset (1 GHz) |
|
General & Physical Characteristics
|
|
| Display | 8.5-inch high-brightness color TFT display |
| Interfaces | LAN (Ethernet), USB, external trigger |
| Environmental | MIL-PRF-28800F Class 2 compliant; explosive atmosphere certified (MIL-STD-810G) |
| Weight: | Approx. 4.5 to 4.8 kg |
