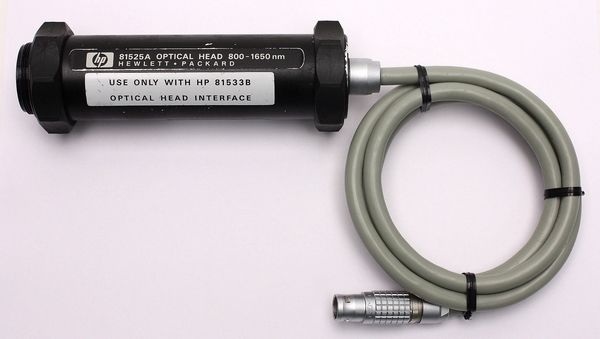

HP Agilent 81525A Optical Head
$0.00
Availability:
Out of stock
SKU
4C08
Condition: Refurbished
Warranty: 90 Day Exchange
Shipping: USA & Worldwide
Request a Quote for
- HP Agilent 81525A Optical Head 800-1650nm (BC# 13728)
| Sensor Element | InGaAs, 6mm |
| Wavelength range | 800-1650mm |
| Power range | +27 to -70dBm (1250 to 1650nm) + 23 to -70dBm (800 to 1650nm) |
| Display resolution | 0.001dBm (0.0001dB/dBm on printout), 0.01pW tpo 10pW (Depending on power range) |
| Applicable fiber type | Parallel beam, 9/125µm - 100/140µm, NA <0.3 |
| Uncertainty (Accuracy) At Reference Conditions | ±3% (800-1600nm) |
| Operating Temperature | 0°C to + 35°C |
| Dimensions Module: Head: |
75mm H, 32mm W, 335mm D (2.8"x1.3"x13.2") 87.5mm Diameter, 140mm Long (1.5"x5.5") |
| Weight Module Head: |
net 0.6kg (1.3lbs), Shipping 1kg (2.2lbs) net 0.45kg (1lbs), Shipping 1kg (2.2lbs) |
For full Agilent 81525A product specifications, please click here: Agilent 81525A
