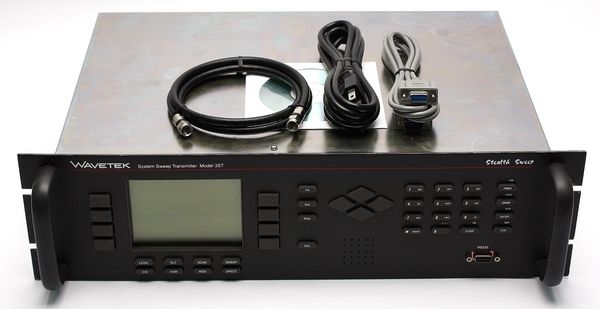

JDSU Acterna 3ST Stealth System Sweep Transmitter
Condition: Refurbished / Calibrated
Warranty: 90 Day Exchange
Shipping: USA & Worldwide
- Wavetek JDSU 3ST Stealth System Sweep Transmitter (BC# 27275)
- Coax Cable
- Power Cord
- RS232 PC Interface Cable
- User Manual On Cd-ROM
Wavetek 35T Stealth System Sweep
The Stealth Sweep System is a comprehensive measurement tool designed for testing a wide range of critical parameters for proving system performance and conducting preventative maintenance. Users can test frequency response, signal levels, C/N, hum, depth of modulation, CSO/CTB and intermodulation distortion. These levels can be displayed in the form of a single channel with both video and audio levels shown graphically and numerically, in a tilt mode with up to nine channels displayed on a bar graph, or in a scan mode with all of the channels (including video and audio carriers) displayed. A spectrum display provides a means of checking distortion and ingress.
Tough, Weatherproof Hand-Held Tool
The 3SR Receiver (Stealth System Sweep Receiver) is very small and lightweight, but there's no shortcut on its measurement capability or its means of display. The 3SR Receiverﾒs high resolution display (320 X 240 Dot Matrix LCD) presents extensive measurement information simultaneously. Along with its high accuracy and precision, the 3SR Receiver is tough and durable ﾗ made for use in field conditions. No waiting for the rain to stop before making measurements ﾗ the 3SR Receiver is a reliable partner, ready when you are.
Non-Interfering, Continuously Referenced Sweep
The 3SR Receiver references existing carriers when possible, and the 3ST Transmitter (Stealth System Sweep Transmitter) transmits a sweep to fill vacant spectrum areas. To avoid headend level drift or adjustment from affecting the sweep response, the 3ST Transmitter monitors the levels and transmits new reference information with every sweep. This means if the signal levels are changing in the headend, they wonﾒt effect the sweep response measurement. The 3ST Transmitter has all of the measurement capability of the 3SR Receiver, so the Headend Technician can closely monitor headend levels.
Video Depth of Modulation
The video depth of modulation screen provides percent modulation in both graphical and precise numeric format. This feature on the model 3ST makes it easy for the headend technician to do a quick check-up on modulation depth without having to set up special equipment.
Reverse Sweep Option
A Stealth Sweep System configured with a Reverse Sweep (3SRV) option allows simple, practical testing of the frequency response of the reverse path, regardless of the frequency passband (5 to 1,000 MHz range). No special pilot modules are required, as the 3ST transmitter has the frequency agile telemetry and can be configured to communicate on both the forward and reverse paths.
Extensive Auto Test Capability
Automated tests can be scheduled to perform either FCC compliance tests, or they can be initiated immediately in order to log performance at individual nodes, amplifiers, or other test points. A wide range of tests can be performed automatically, including signal levels, C/N, hum and depth of modulation. Providing unprecedented flexibility, the Stealth enables the operator to designate which tests to perform on which channels. Because tests are non-intrusive, itﾒs no problem to test all parameters on all channels. After a test is performed, results can be displayed on the Stealth screen with a pass/fail indication on a variety of limits. Limits can be set for FCC or other government standards, or to system preferences. Data taken during any automated test, or sequence of automated tests, can be viewed with a pass/fail indication for each of the limits, and the operator can scroll through the stored data to look at specific measurement results. Automated test results can be printed directly to a printer or uploaded to a PC using StealthWare to store and manage the data or format reports.
Features:
- Continuously Referenced, Non-Interfering Sweep Frequency Response Measurement
- 5 MHz to 1 GHz Frequency Range
- Easy to Read Graphic Signal Level Measurement; High Resolution LCD (320 x 240 dot matrix)
- Durable, Water Resistant Receiver can be Used in Rain
- Excellent Level Accuracy over a Wide Temperature Range
- Broad Scope of Measurement Capabilities
- Spectrum Analyzer Display
- Automated 24 Hour FCC Proof Measurements
- Digital QAM Carrier Average Power Measurement Option
Specifications:
| Frequency | |
| Range: | 5 to 1,000 MHz |
| Accuracy: | ± 10 ppm at 25°C; ± 10 ppm drift over temp.; ± 3 ppm/year aging |
| Resolution Bandwidths: | 30 and 280 kHz (30 kHz for CTB/CSO only) |
| Tuning Resolutions: | 10 kHz |
| Sweep Resolution: | 250 kHz maximum |
| Level Measurement | |
| Range: | -40 to +60 dBmV |
| Resolution: | 0.1 dB |
| Accuracy: | ± 1.0 dB from -20 to +50°C |
| 16/64 QAM Digital Carrier Power | |
| Measurement Option: | ±1.8 dB @ 25° C |
| Hum Measurement | |
| Carrier level must be = -0 dBmV. Non-scrambled channels only | |
| Range: | 0 To 10% |
| Resolution: | < 0.2% |
| Accuracy: | ± 0.7% |
| Carrier to Noise Measurement | |
| Non-scrambled channels only. No preselection required for 78 channels at +10 dBmV input level. | |
| Range: | 52 dB maximum |
| Resolution: | 0.5 dB |
| Frequency Response | |
| Frequency Range: | 5 to 1,000 MHz (Forward or Reverse) |
| Sweep Rate: | 3SRT ? 1 second for 600 MHz sweep, no scrambled channels |
| Accuracy: | ± 0.5 dB, normalized (dependent on stability of referenced carriers) |
| Display Scaling and Range: | 1, 2, 5, and 10 dB/division; 6 vertical divisions |
| Sweep Span: | User definable from 5 to 1,000 MHz |
| Reference Storage: | At least 16, including Forward, Reverse, or Sweepless |
| Sweep Trace Storage: | At least 50, including Forward, Reverse, or Sweepless |
| Reverse Option Transmitter Output Level: | +10 to +40 dBmV, settable in 2 dB increments |
| Transmitter | |
| Frequency Range: | 5 to 1,000 MHz |
| Level Range: | +10 to +40 dBmV; settable in 2 dB increments |
| Spectral Purity | Hars -30 dBc; Spurs -35 dBc |
| Telemetry | |
| Frequency: | User defined, 5 to 1,000 MHz |
| Modulation: | FSK 100 kHz deviation |
| Spectrum Required: | ﾘ1 MHz recommended |
| Spectrum Mode | |
| Spans: | 3, 5, 10, 20, and 50 MHz (0.5, 1, 2, and 5 MHz/div) |
| Sweep Rates: | 2 seconds (50 & 5 MHz) |
| Display Scaling and Range: | 0.5, 1, 2, 5, and 10 dB/division; 6 vertical divisions |
| Spurious Free Dynamic Range: | 60 dB |
| Intermodulation Distortion | |
| Range: | 60 dB maximum |
| Resolution: | 1 dB |
| Depth of Modulation | |
| Assumes presence of white reference on any VITS line. Non-scrambled channels only | |
| Range: | 80 To 100% |
| Resolution: | < 0.5% at 85% |
| Serial Interface | RS232; Epson, IBM Printers |
| General | |
| Log Linearity | ± 0.5 dB |
| Flatness: | ± 0.5 dB |
| Dimensions: | 48.3 cm (W) x 13.3 cm (H) x 35.6 cm (D) 19" (W) x 5.25" (H) x 14" (D) |
| Weight: | 6.8 kg (15 lbs.) |
| Operating Temperature Range: | 0 to +50°C; .32 to 120°F |
| Powering: | 47 to 63 Hz ~ 100 VA; 100 to 265 VAC |
For full Wavetek 3ST product specifications, please click here: Wavetek 3ST
