FLIR E60 60Hz 320 x 240 Infrared Thermal Imager
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
| Due to strict commerce control regulations, AAATesters does not ship or export Thermal Imagers to any countries outside of the United States. |
| International customers, please note that we cannot complete any order that includes a Thermal Imager product. AAATesters cannot complete any sale where the intent may be that a Thermal Imager product may be exported internationally by the end user. |
| All customers that are purchasing Thermal Imager products from AAATesters will be required to complete a BIS-711 end use agreement form to ensure that the Thermal Imager product will not be exported internationally. |
FLIR E-60 Thermal Imager
Troubleshoot more efficiently, create detailed reports easier, and share images and findings faster with FLIR’s latest E-Series thermal imagers. Featuring a fresh array of imaging, communication, and productivity tools to help you get more done in a day.
FLIR Tools Mobile Communication – Connect an E-Series camera to smartphones and tablets with our Wi-Fi app. Stream live video so others can watch along. Import radiometric JPEGs, adjust levels, add measurement tools, then send images off in simple reports via email to expedite repair decisions.
Superior Thermal Imaging – Up to 76,800 pixels (320 × 240) for better long-range accuracy and the highest level of point & shoot camera IR resolution.
MSX Thermal Image Enhancement – See numbers, labels and other key visual details not normally apparent in a regular thermal image with an all-in-one thermal picture that instantly orients you to right where heat issues are.
Onboard Digital Camera – 3.1MP resolution provides clear visible light reference pictures; includes built-in LED lamp that doubles as a flashlight plus a laser pointer to mark locations.
Large Touchscreen with Auto-Orientation – The E-Series touchscreen provides an intuitive interface that takes full advantage of the entire 3.5” display for easy access to diagnostics tools, and measurement and other data overlays stay upright no matter how you hold the camera.
Picture-in-Picture – Overlay thermal images onto digital scenes for extra location documentation.
Multiple Measurements – Add up to 3 box areas and 3 moveable spots using the touchscreen to gather more detailed temperature information.
MeterLink® – Measure more than temperature. Send diagnostics data by Bluetooth from compatible clamp and moisture meters directly to E-Series cameras to embed extra information into thermal images as you capture them that further supports findings.
Interchangeable Lenses and Manual Focus– Optional wide-angle and telephoto optics let you capture more of a scene in one shot or get in closer to measure smaller, distant targets. Full focus control help you dial in the sharpest clarity and accuracy.
Higher Temperature Range & Sensitivity – Measure hotter-running equipment with higher 650°C (1,202°F) detection, and see subtler temperature patterns and detail with E-Series’ greater sensitivity.
| E60 Specifications | |
| Temperature range | -4 to 1202°F (-20 to 650°C) |
| Thermal sensitivity (N.E.T.D) | <0.05°C at 30°C |
| Detector Type - Focal plane array; (FPA) uncooled microbolometer |
320 x 240 pixels |
| MSX® Thermal Image Enhancement | YES |
| Picture-in-Picture (P-i-P) | Scalable P-i-P |
| MPEG 4 Video Recording | YES |
| Video Camera w/Lamp & Laser | 3.1MP/LED Lamp/Laser pointer |
| Digital Zoom | 4X Continuous |
| Image annotation | Voice (60s)/Text Comments |
| Moveable Spot | 3 Spotmeters |
| Area Box | 3 Area Boxes (full image with min/max/avg) |
| Delta T | YES |
| Communication Interface | USB-mini, USB-A, Composite Video, Bluetooth, Wi-Fi |

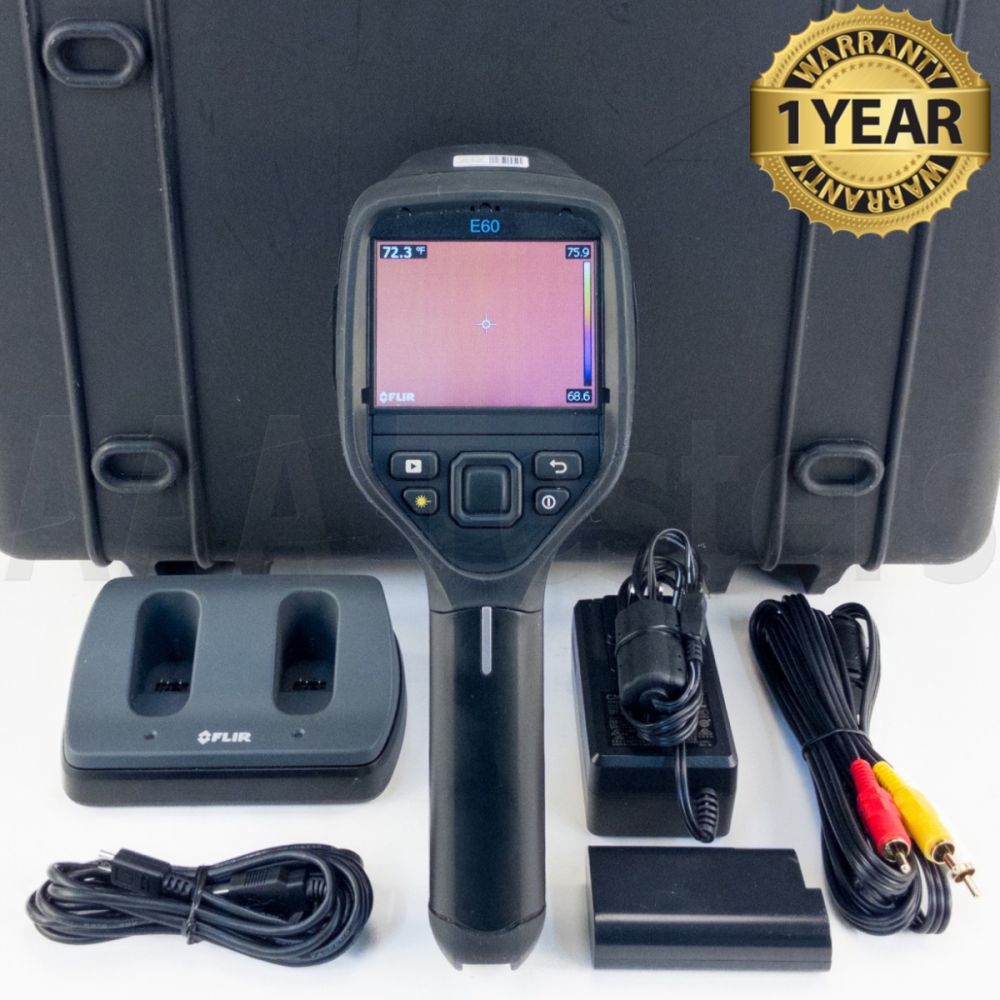

FLIR E60 Infrared Thermal Imaging Camera
60 Hz With A Focal Plane Array Of 320 x 240
Temperature Range: -4 to 1202°F (-20 to 650°C)
Includes Hard Carrying Case & Accessories As Listed
FLIR E60 E-60 E 60 Thermal Imaging Camera Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# 42146-L/T*
- FLIR E60 Thermal Imager (BC# 42146-L/T*)
- IR Lens f=18.0mm
- FLIR Battery Charger P/N: T197882
- FLIR Video Cable P/N: 1910582
- FLIR DC CUI Charger P/N: 1910490
- 2GB Micro SD Card w/ Adapters
- FLIR Getting Started Guide
- Rubber Cap
- FLIR Path Finder IR DVD
- FLIR Building Diagnostics DVD
- (3) Battery Packs
- AC Adapter/Charger
- Wrist Strap For Unit
- USB PC Interface Cable
- Hard Copy User Manual
- Hard Carrying Case
