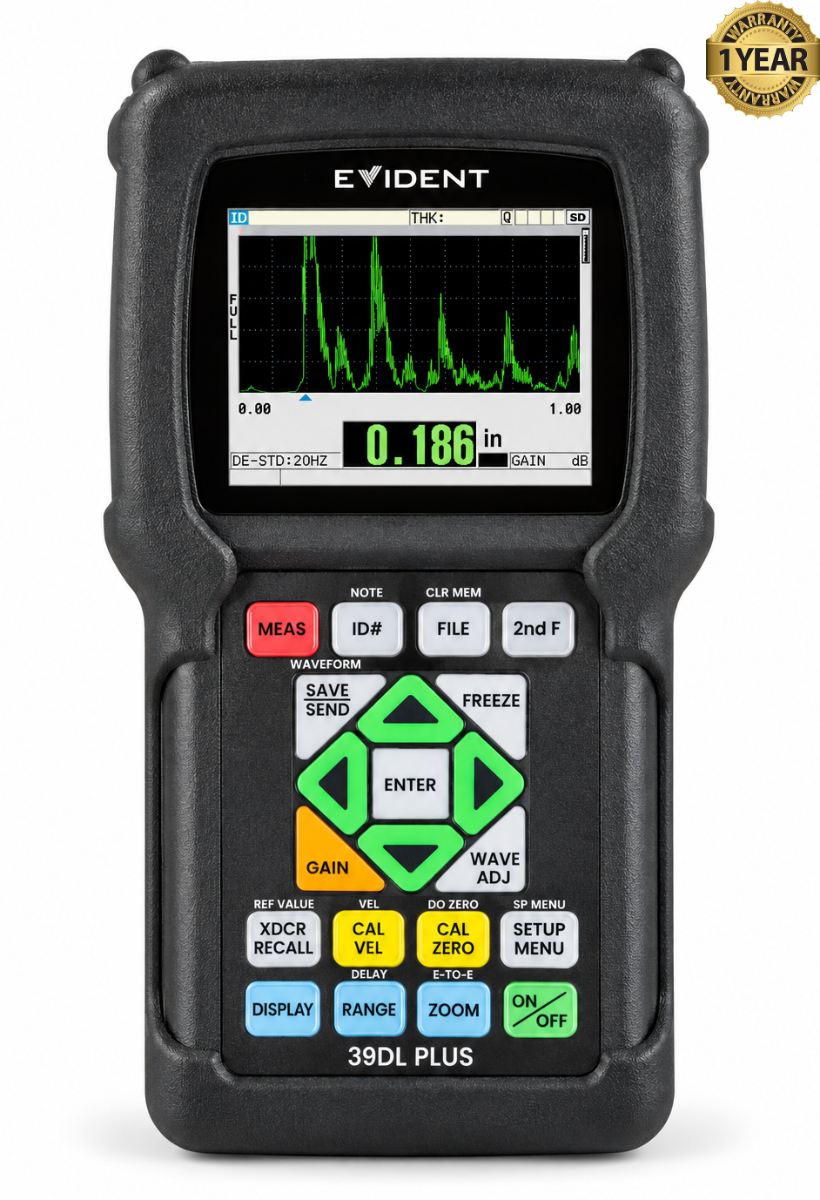

Evident 39DL Plus Ultrasonic Thickness Gauge

• Evident 39DL Plus Ultrasonic Thickness Gauge (BC# -L/T*)
• A/C Adapter
• USB Cable
• Carrying Case (G)

Evident 39DL Plus Ultrasonic Thickness Gauge

The Evident 39DL PLUS Ultrasonic Thickness Gauge is a portable instrument used to measure material thickness without cutting or damaging the object being inspected. It supports both precision measurements during manufacturing and corrosion inspections on existing equipment.

The gauge works by sending high-frequency sound waves into a material through a probe called a transducer. It measures how long the sound takes to travel through the material and reflect back, then calculates thickness using the material’s sound velocity. This allows measurements with access to only one side of an object.

One major use is finding areas where corrosion or erosion has reduced wall thickness. Inspectors can scan pipes and other components to locate thin spots. Its display updates at rates up to 60 times per second, helping users identify thickness changes while moving the probe.

The 39DL PLUS supports different probes and optional software for various materials and applications. Depending on the setup, it can measure through coatings, inspect multiple layers, or evaluate materials such as fiberglass and rubber. Its stated thickness range is 0.08–635 mm, depending on material and transducer selection.

Designed for field and production use, the gauge combines a rugged housing with stored inspection readings and several data-transfer options, including USB and wireless connectivity where available. These capabilities help users document measurements, compare inspection results, and support maintenance and quality-control decisions.

Features:

• Precision and corrosion measurements: Measures manufactured parts and checks remaining wall thickness in equipment affected by corrosion.
• Wide measuring range: Approximately 0.08–635 mm (0.003–25 inches), depending on the material and probe.
• Fast scanning: Updates readings up to 60 times per second, helping inspectors find thin spots.
• Multiple probe options: Supports single-element and dual-element transducers for different inspection needs.
• Measurements through coatings: THRU-COAT and echo-to-echo functions allow suitable inspections of painted or coated surfaces.
• Data storage and transfer: Includes an internal data logger, USB, RS-232, removable microSD storage, and integrated Wi-Fi and Bluetooth, subject to regional availability.
• Inspection tools: Includes minimum/maximum tracking, alarms, thickness comparisons, and B-scan views showing thickness changes along a scan.
• Rugged construction: Designed for IP67 dust and water protection, with a protective rubber boot and stand.
• Optional software: Adds high-resolution measurements, multilayer measurements, internal oxide/scale measurements, or improved penetration through challenging materials.
