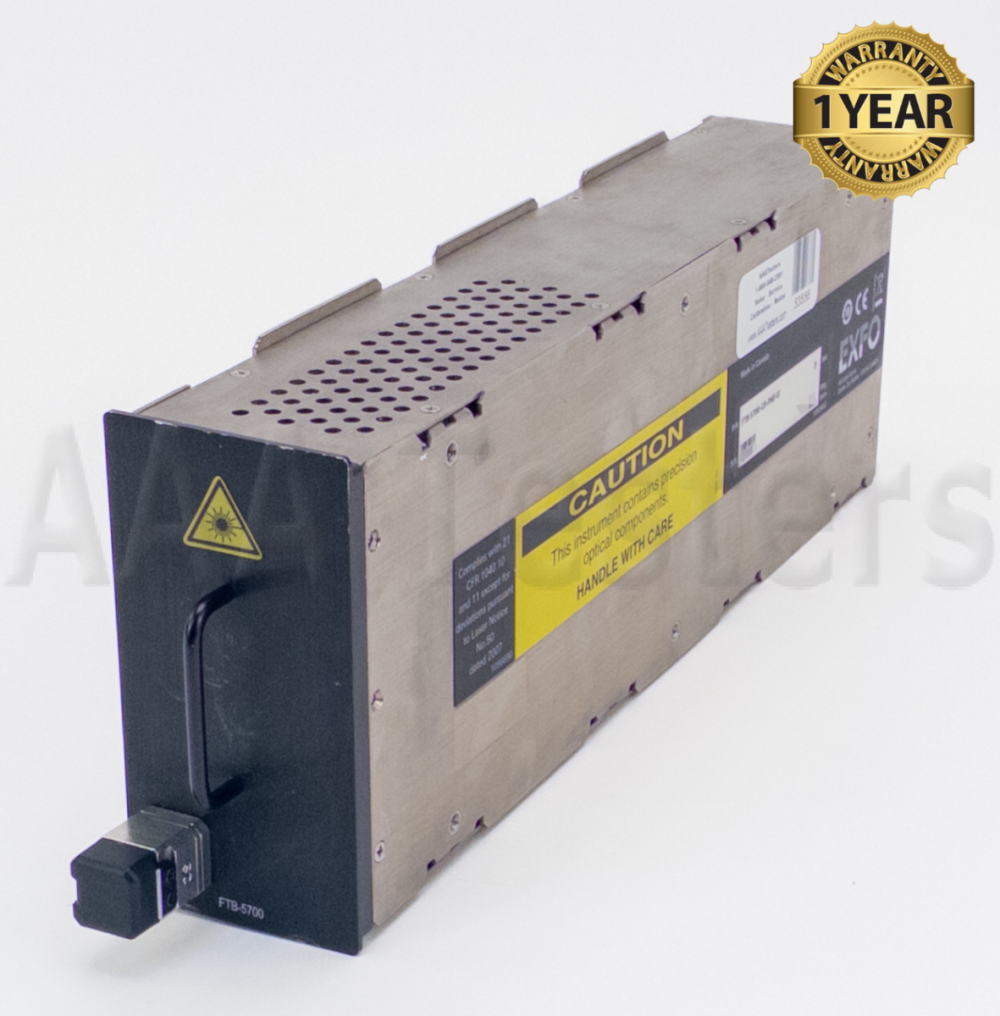

EXFO FTB-5700-CD-PMD CD & PMD Analyzer Module
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
EXFO FTB-5700-CD-PMD Dispersion Module
The Only Combined CD and PMD Test Module on the Market
Building on EXFO’s market-proven dispersion testing expertise, the
FTB-5700 Single-Ended Dispersion Analyzer combines chromatic dispersion and
polarization mode dispersion measurement into a single, highly automated,
high-efficiency test solution. It offers the true advantage of one—one-ended
testing using one module, one connector and a one-step test setup and delivering
one combined results file—dramatically reducing the cost of ownership and
speeding up the learning curve, the test cycles as well as the reporting.
Housed in either of EXFO’s multimodular portable platforms, the FTB-200 Compact Platform and the FTB-400 Universal Test System, the FTB-5700 delivers straightforward, yet advanced CD and PMD characterization in a single affordable instrument optimized for both entrylevel and seasoned technicians.
Characterize CD in a Snap
The ongoing race to develop high-speed transmission systems and to
increase available bandwidth is facing certain limitations. Chromatic dispersion
(CD) measurements are becoming more and more critical for carriers and service
providers looking to upgrade their systems to faster transmission rates, such as
10 Gbit/s (OC-192/STM-64), and longer routes, thanks to the advent of
reconfigurable optical add/drop multiplexers (ROADMs).
What’s more, since the eight test points are configurable, the FTB-5700 never “loses” test points due to high attenuation. Whatever the link, test parameters are automatically optimized.
The Only Single-Ended PMD Analyzer on the Market
PMD is a real threat to both legacy and newly deployed networks. And as
high-speed services—namely 10 Gbit/s—are being massively deployed, PMD awareness
continues to grow. Whether you need to assess the PMD level of legacy fiber or
perform network maintenance, EXFO’s FTB-5700 PMD Analyzer FTB-5700 is fast,
reliable and ready to go.
PMD is an average of delay values over a given wavelength range and state of polarization. The FTB-5700 being tunable, over 200 wavelength pairs are acquired, all at different states of polarization. Each pair provides a delay point.
For even higher accuracy, you can launch multiple scans and perform an averaging of all test results.
A Highly Intuitive User Interface with No Setup Required
Featuring easy-to-read pass/fail results and providing a view of all
key parameters and values on one screen, the FTB-5700’s user interface is all
about field testing simplicity and efficiency.
Features:
- Single-ended PMD and CD measurements
- The advantage of one: complete dispersion analysis with a single module, a single connector and a one-step test setup
- Unparalleled software user-friendliness: all automated
- Testing range: up to 120km
Specifications:
| Measured wavelength range (nm) | 1475 to 1626 |
| Maximum measurement distance (km) | >120 |
| Distance uncertainty (km) | ± (0.01 + 1 % x distance) |
| Chromatic dispersion | |
| Number of test points | 8 |
| CD uncertainty (ps/nm) | ±12 |
| Test time (s) | 40 |
| PMD | |
| PMD range (ps) | 0.5 to 15 |
| Test time (s) | 180 |
| General Specifications | |
| Temperature | Operating: 0 °C to 50 °C (32 °F to 122 °F) Storage: -40 °C to 70 °C (-40 °F to 158 °F) |
| Relative humidity | 0 % to 93 % non-condensing |
| Size (H x W x D) | 96 mm x 50 mm x 281 mm (3 3/4 in x 2 in x 11 in) |
| Weight | 1.3 kg (2.8 lb) |
EXFO FTB-5700-CD-PMD PMD Analyzer Module
Installed Options:
- CD: CD Analyzer
- PMD: PMD Analyzer
FTB5700 FTB 5700
Refurbished EXFO FTB-5700 FTB5700 PMD Analyzer Module Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# -L/T*
- EXFO FTB-5700-CD-PMD PMD Analyzer Module w/ (BC# -L/T*)
- Installed Options:
- CD: CD Analyzer
- PMD: PMD Analyzer
- Installed Options:
