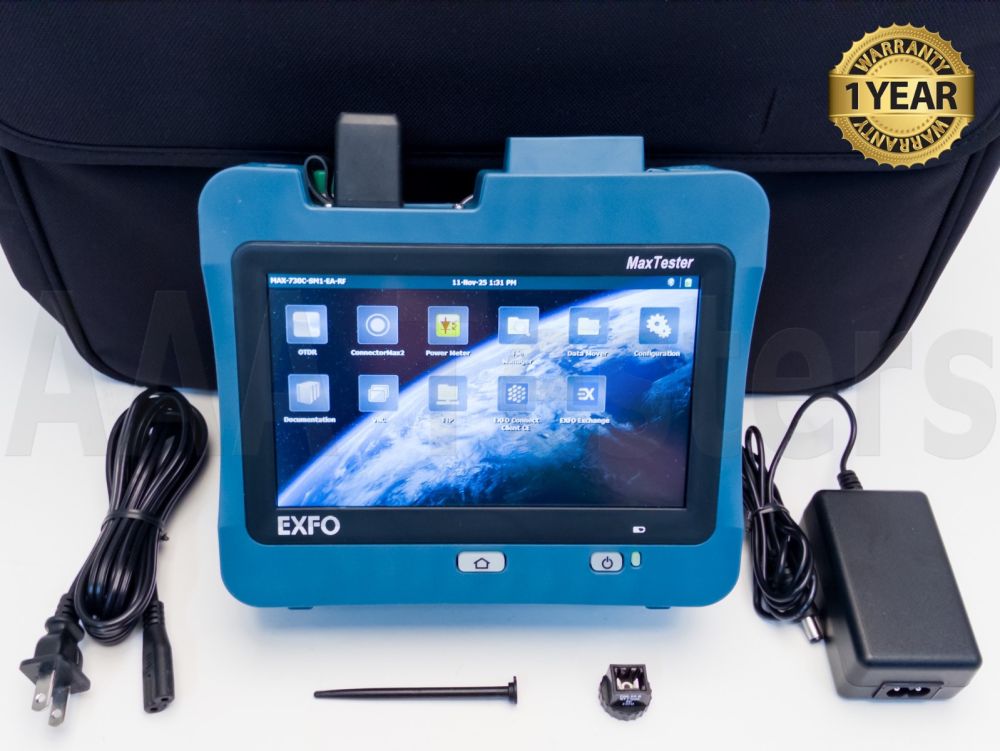

EXFO MAX-730C MaxTester SM Fiber OTDR 1310nm 1550nm
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
EXFO MaxTester 730C OTDR
The MaxTester 730C (MAX-730C) is designed for testing through FTTH/PON splitters for end-to-end characterization. This handheld OTDR is ideal for FTTH/PON testing, live fiber troubleshooting and metro range testing.
The Handheld OTDR...Reinvented
The MaxTester700C series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen-the most efficient handheld display in the industry-it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR 2 environment offers icon-based functions, instant boot-up, automatic macro bend finders as well as improved auto and real-time modes.
The MaxTester 700C Series is a line of genuine high-performance OTDRs from the world's leading manufacturer. It delivers EXFO's tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.
The amazing 12-hour battery life will never let a techinicion down, and the plug-and-lay hardware options, like the VFL, power meter and USB tools, make every technician's job easier.
Most importantly, the MaxTester 700C Series is finally bringing the intelligent Optical Link Mapper (iOLM), an intelligent OTDR-based application, to the handheld market. This advanced software turns even the most complex traec analysis into a simple, one-touch task.
Ultimately, the MaxTester 700C Series is small enough to fit in your hand and big enough to fit all your needs!
The Entry-Level Solution Designed For All Your Testing Needs
The MaxTester 730CPON/metro OTDR is optimized to test through optical splitter up to 1x128, ensuring complete end-to-end FTTH characterizatrion. The 1625nm or 1650nm, Out-of-band, live testing port enables the efficient troubleshooting of active networks without affecting the signal of other clients. Plus, the high dynamic range makes it suitable for metro point-to-point testing.
Looking For Icon-Based Mapping
Linear View (included on all EXFO OTDR's)
Available on EXFO OTDR's since 2006, the linear view simplifies the reading of an OTDR trace by displaying icons in a linear way for each wavelength. This view converts the graph data points obtained from a tradition single pulse trace into reflective, non-reflective or splitter icons. With applied pass/fail thresholds, it becomes easier to pinpoint faults on your link.
This improved version of linear view provides the flexibility to display both the OTDR graph and its linear view without having to toggle to analyze your fiber link.
Although this linear view simplifies the OTDR reading of a single pulse width's trace, the user will still need to set OTDR parameters. In addition, multiple traces must often be performed in order to fully characterize fiber links. See the section below to learn how iOLM can do this automatically and provide more accurate results.
The MAX-730C advantage
- 7-inch, outdoor-enhanced touchscreen
- Optimized to test through optical splitters and characterize FTTH links
- Characterize and troubleshoot links up to 100 km with a dynamic range of 39 dB
- Find more problems closer to the splitter than other OTDRs thanks to the highest resolution for PON testing and the shortest PON dead zone available
| Technical Specifications | |
| Display | 7-in Outdoor-enhanced touchscreen, 800x480TFT |
| Interfaces | Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
| Storage | 2 GB internal memory (20000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery 12 hours of operation as per telcordia (bellcore) TR-NWT-001138 |
| Power Supply | Power Supply AC/DC adapter, input 100-340 VAC, 50-60 Hz |
| Wavelength (nm) | 1310 ± 20/1550 |
| Dynamic range (dB) | 39/38 |
| Event dead zone (m) | 0.5 |
| Attenuation dead zone (m) | 2.5 |
| PON dead zone (m) | 30 |
| Distance range (km) | 0.1 to 400 |
| Pulse Width (ns) | 3 to 20000 |
| Linearity (dB/dB) | ±0.03 |
| Loss threshold (dB) | 0.01 |
| Loss resolution (dB) | 0.001 |
| Sampling resolution (m) | 0.04 to 10 |
| Sampling points | Up to 256000 |
| Distance uncertainty (m) | ±(0.75 + 0.0025% x distance + sampling resolution) |
| Measurement time | User-defined |
| Reflectance accuracy (dB) | ±2 |
| Typical real-time refresh (Hz) | 4 |
EXFO MaxTester MAX-730C SM 1310 / 1550nm Fiber OTDR
Dynamic Range:
1310/1550 nm : 39/38 dB
Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1490nm
- 1550nm
- 1625nm
- 1650nm
Includes Carrying Case & Accessories As Listed
EXFO MAX 730C MAX-730C MAX730C SM Fiber OTDR Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# -L/T*
- EXFO MaxTester MAX-730C SM Fiber OTDR (BC# -L/T*)
- SM OTDR Option/Source:
- 1310nm
- 1550nm
- SC Connector For Source
- Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1490nm
- 1550nm
- 1625nm
- 1650nm
- SC Connector For Power Meter
- VFL
- SM OTDR Option/Source:
- Ethernet Cable
- (2) SM SC-SC Fiber Cables
- Stylus
- AC Adapter/Charger
- Power Cord
- User Manual On CD-ROM
- Carrying Case (G)
