EXFO MAX-5205 MaxTester Simple DWDM Channel Checker FTBx-5205
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
EXFO MaxTester MAX-5205 DWDM Simple Channel Checker
COMPLEX NETWORKS, SIMPLE SOLUTIONS
As fiber is pushed further into the Remote-PHY and distributed access architecture (DAA) networks, operators are leveraging the full spectral possibilities thanks to dense wavelength division multiplexing (DWDM). The journey from radio frequency (RF) signals to digital optics featuring DWDM technology requires simple-to-use and intuitive solutions to avoid extensive training with accompanying lengthy learning curves as well as error-prone technical configurations.
The MAX-5205/FTBx-5205 optical channel checker leverages an intuitive workflow and a handheld form factor with a large screen display. This makes it an essential tool in the field for technicians troubleshooting or commissioning DWDM networks. Data storage and reporting capacity from the field avoids delays in closing jobs, loss of results. With the plug-and-play optical add-ons (inspection scope, power meter and visual fault locator), this test kit becomes a powerful, agile and versatile solution for various network architectures.
MAX-5205/FTBx-5205 INTUITIVE TEST RESULTS ANALYSIS (MAX-5205 ONLY)
Thanks to its 7-inch outdoor-enhanced color touchscreen, the MAX-5205 offers an intuitive menu workflow and neatly displays test results analysis. Highly visual data representation allows for simpler and faster results assessment. Tests results can be displayed into graph display or table view to examine channel power levels. Color coding also provides contextual status over
pass/fail analysis.
SIMPLE STEP FROM TESTING TO REPORTING
The MAX-5205/FTBx-5205 is not only able to store more than 20 000 tests results but can also generate reports in the field and share them instantaneously. This means jobs getting closed faster, no data consolidation required, no test results lost on the way and no more manual uploads. In essence: more time doing tests, less time reporting.
| Technical Specifications | |
| Display | 7-in Outdoor-enhanced touchscreen, 800x480TFT |
| Interfaces | Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
| Storage | 2 GB internal memory (20000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery 12 hours of operation as per telcordia (bellcore) TR-NWT-001138 |
| Power Supply | Power Supply AC/DC adapter, input 100-340 VAC, 50-60 Hz |
| Wavelength range (C-band) | 1527.99-1567.95 nm (191.2-196.2 THz) |
| ITU channels | ITU-T G694.1 channels 12-62 |
| Channel spacing | DWDM 100 GHz |
| Dynamic range per channel (dBm) | 10 to -40 |
| Maximum total safe power (dBm) | 20 |
| Absolute power uncertainty (dB) (typical) | 1 |
| ORL (dB) | > 35 |
| Measurement time (s) | < 3 |
EXFO MaxTester MAX-5205 Simple DWDM Channel Checker
Dynamic Range per Channel: 10 to -40
Covers C-BAND ITU-T G.692 DWDM grid channels (12-62) and PON wavelengths
Includes Carrying Case & Accessories As Listed
MAX 5205 MAX5205
EXFO MAX-5205 MAX5205 Simple DWDM Channel Checker Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# 45709

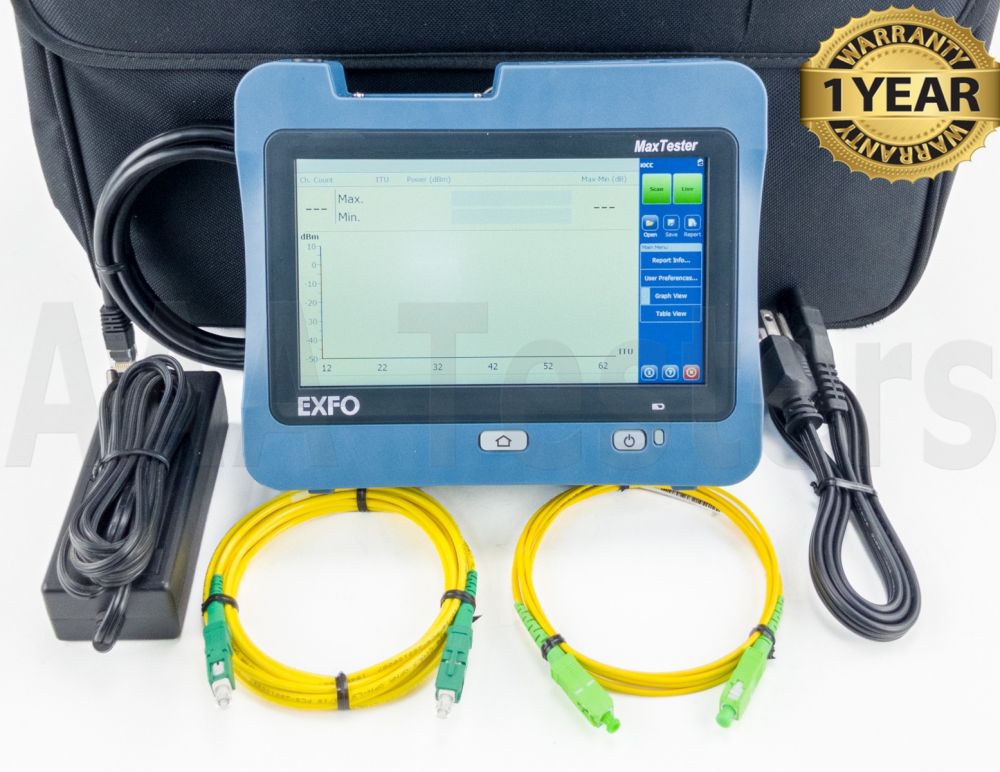

- EXFO MaxTester MAX-5205 Simple DWDM Channel Checker (BC# 45709)
- Stylus
- AC Adapter/Charger
- Power Cord
- User Manual On CD-ROM
- Carrying Case (G)
