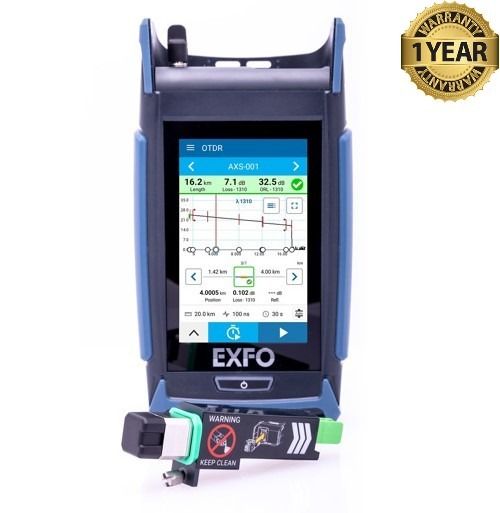

Exfo AXS-120-SM1 1310/1550 Single Mode Access Mini-OTDR

Exfo AXS-120-SM1 1310/1550 Single Mode Access Mini-OTDR

The EXFO AXS-120-SM1 Single Mode Compact OTDR with integrated VFL, in-line power checker and light source is ideal for FTTx network installation and troubleshooting. It is used for access-network testing (P2P), passive optical LAN (POL), CATV, hybrid fiber-coaxial (HFC) network testing, FTTA, and DAS installation. The OTDR offers 4" high-visibility outdoor touchscreen, dynamic range up to 34/32 dB, dual wavelengths 1310/1550 nm, short dead zones, automated macrobend detection, 8GB internal memory and onboard PDF reporting. The Optical Link Mapper (OLM) interprets OTDR traces automatically and provides an icon-based view of the elements on the link. The unit works in Auto or Real-Time mode for continuous monitoring and dynamic event capture. All-day battery autonomy.

Features

• Dual-wavelength 1310/1550 nm OTDR with up to 34/32 dB dynamic range

• 4″ sunlight-readable capacitive touchscreen

• Optical Link Mapper (OLM) for icon-based link analysis

• Swap‑Out field-replaceable connector for reduced downtime

• Automated macrobend detection

• In-line light source, power checker, and Visual Fault Locator (VFL)

• Onboard PDF report generation

• Real-time OTDR and Auto modes

• 0.8 m event / 3.5 m attenuation dead zones; 35 m PON dead zone

• Battery runtime: >10 hours
