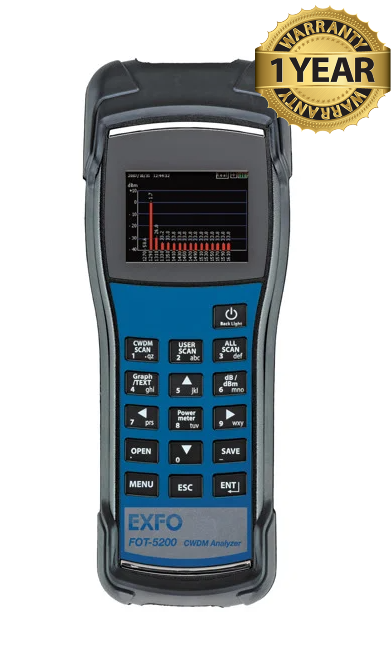

EXFO FOT-5200 CWDM Channel Power Analyzer
$2,249.00
Availability:
In stock
SKU
3F110
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- EXFO FOT-5200 CWDM Channel Power Analyzer (BC# - L/T*)
- AC Adapter/Charger
- Hand Strap
- Carrying Case (G)
Request a Quote for
EXFO FOT-5200 CWDM Channel Power Analyzer
This CWDM channel checker is an innovative, low-cost analyzer for installing, maintaining and repairing CWDM networks. EXFO's FOT-5200 can measure the power of the 18 CWDM channels, in access network.
Features:
- 16 and 18 CWDM channel models
- Save and download data
- Broadband power-meter feature
- Bar graph, plus table of results
- Fastest and smallest CWDM tester on the market
Applications:
- Installation, maintenance, repair of any CWDM network
- Cellular backhaul activation for telco and CATV operators
Specifications:
| Number of channels | 16 or 18 + wide-band |
| Calibrated wavelengths, FOT-5200-C16 (nm) |
1270/1290/1310/1330/1350/1410/1430/1450/1470/ 1490/1510/1530/1550/1570/1590/1610 |
| Calibrated wavelengths, FOT-5200-C18 (nm) |
1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/1590/1610 |
| Power display range (dBm) | +10 to –70 |
| Measurement uncertainty (dB) | ± 0.5 |
| Measuring units | dBm/dB/mW |
| Size (H x W x D) | 210 mm x 80 mm x 48 mm (8 ¼ in x 3 ½ in x 2 1/6 in) |
| Weight | 0.5 kg (1.1 lb) |
