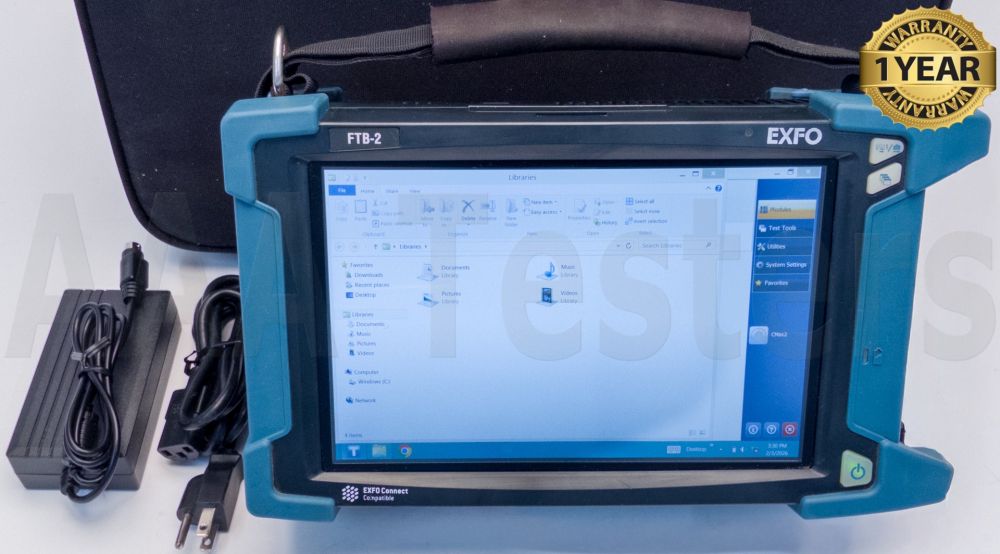

EXFO FTB-2 FTB-5240S Optical Spectrum Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- EXFO FTB-2 Mainframe (BC# -L/T*)
- EXFO FTB-5240S Optical Spectrum Analyzer Module (BC# -L/T*)
- AC Adapter/Charger
- Power Cord
- Carrying Case
EXFO FTB-2 Platform
OPTICAL PLUG-AND-PLAY OPTIONS
The platform features optical plug-and-play options that can be purchased whenever you need them: at the time of your order or later on. In either case, installation is a snap and can be performed by the user without the need for any software update.
Optical Power Meter
A high-level power meter (GeX) that can measure up to 27 dBm, the highest in the industry. This is essential for hybrid fiber-coaxial (HFC) networks or high-power signals. If used with an auto-lambda/auto-switching compatible light source, the power meter automatically syncs on the same wavelength, thus avoiding any risk of mismatched measurement.
- Extensive range of connectors
- Auto-lambda and auto-switching
- Offers measurement storage and reporting
- Choice of seven standard or coarse wavelength-division multiplexing (CWDM)-calibrated wavelengths
Visual Fault Locator (VFL)
The plug-and-play VFL easily identifies breaks, bends, faulty connectors and splices, in addition to other causes of signal loss. This basic, yet essential, troubleshooting tool should be part of every field technician's toolbox. The VFL visually locates and detects faults over distances of up to 5 km by creating a bright-red glow at the exact location of the fault on singlemode or multimode fibers (available with the Optical Power Meter only).
Specifications:
| Display | Touchscreen, color, 1280 × 800 TFT 256 mm (10.1 in) |
| Interfaces | RJ45 LAN 10/100/1000 Mbit/s Two USB 2.0 ports One USB 3.0 port Display port Headset jack |
| Storage (internal flash memory) | 64 GB |
| Battery | One rechargeable Li-ion smart battery |
| Power Supply | AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A |
| Computer | Dual-core processor/4 GB RAM/Windows 10 |
| GENERAL SPECIFICATIONS | |
| Size (H × W × D) | 199 mm × 333 mm × 119 mm (7 13/16 in × 13 1/8 in × 4 11/16 in) |
| Weight | 3 kg (6.6 lb) |
| Temperature | Operating: 0 °C to 50 °C (32 °F to 122 °F) Storage: –40 °C to 60 °C (–40 °F to 140 °F) |
| Relative humidity | ≤95 % non-condensing |
EXFO FTB-5240S Optical Spectrum Analyzer Module
The FTB-5240S Optical Spectrum Analyzer (OSA) is designed to measure optical power as a function of wavelength or frequency and Optical Signal to Noise Ratio (OSNR).
Your Optical Spectrum Analyzer offers truly portable spectral characterization for DWDM network commissioning as well as In-Bad Optical Signal to Noise Ratio (OSNR) measurement for ROADM and 40 Gbit/s signals and networks.
The FTB-5240S is an expert DWDM OSA that is designed for efficient commissioning, maintenance and trouble-shooting of DWDM components and links in the field, from 50 GHz to CWDM networks.
Applications:
- Characterizing channels in the O- to U-band spectra
- Testing laser sources for spectral purity and power distribution
- Testing the transmission characteristics of optical devices
- Troubleshooting and monitoring key parameters on CWDM or DWDM signals to check system stability
- Characterizing all channel spacings, from 50 GHz DWDM to CWDM
- Testing high-speed networks (40 Gbit/s and higher)
- Measuring OSNR
Specifications:
| Spectral Measurement | |
| Wavelength range (nm) | 1250 to 1650 |
| Wavelength uncertainty (nm) | ±0.05 ±0.01 |
| Reference | Internal |
| Resolution bandwidth (FWHM) (nm) | 0.065 |
| Wavelength repeatability (nm) | ±0.003 |
| Analysis modes | WDM, EDFA, drift, spectral transmittance, DFB, BP |
| POWER MEASUREMENT | |
| Dynamic range (dBm) (per channel) | -80 to 18 dB |
| Maximum total safe power (dBm) | 23 |
| Absolute power uncertainty (dB) | ±0.5 |
| Power repeatability 2σ (dB) | ±0.05 |
| OPTICAL MEASUREMENT | |
| Optical rejection ratio at 1550 nm (dB) | at 0.2 nm (25 GHz): 35 (40 typical) at 0.4 nm (50 GHz): 45 (50 typical) |
| Channel spacing | 25 to 200 GHz CWDM |
| PDL at 1550 nm (dB) | ±0.08 |
| ORL (dB) | >40 |
| Measurement time (s) | <1 |
| General Specifications | |
| Temperature | operating: 0 °C to 40 °C (32 °F to 104 °F) storage: —20 °C to 50 °C (—4 °F to 120 °F) |
| Connectors | EI (EXFO UPC Universal Interface) EA (EXFO APC Universal Interface) |
| Size (H x W x D) | 96 mm x 51 mm x 260 mm (3 ¾ in x 2 in x 10 ¼ in) |
| Weight | 1. 5 kg (3.3 lb) |
