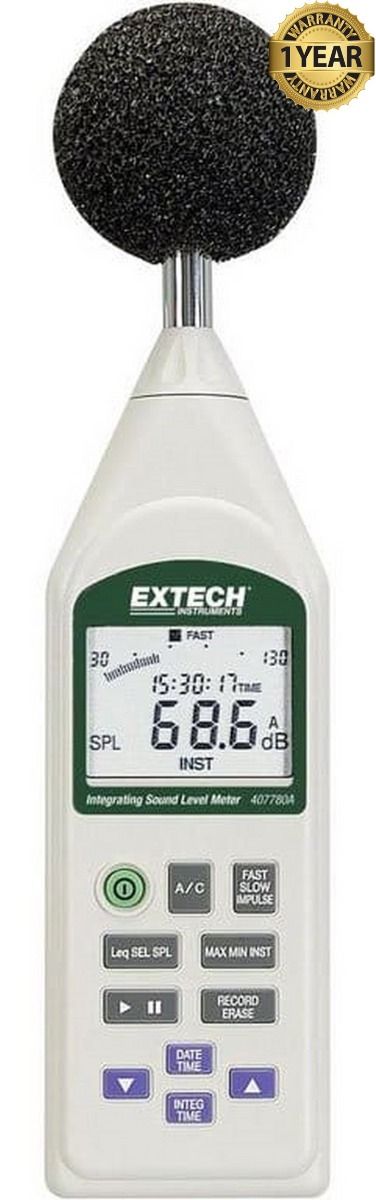

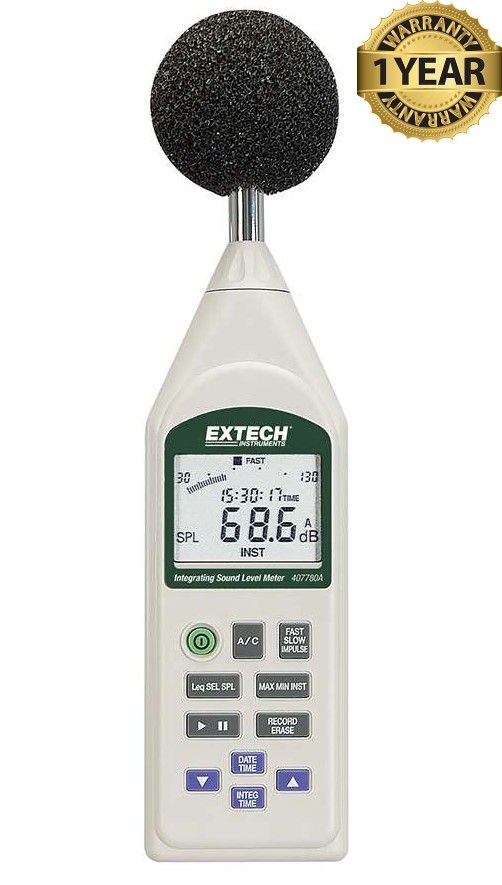

Extech 407780A Integrating Sound Level Datalogger
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Extech 407780A Integrating Sound Level Datalogger (BC#-L/T*)
Extech 407780A Integrating Sound Level Datalogger
The Extech 407780A Integrating Sound Level Meter with USB is a powerful instrument for comprehensive sound level measurements. This meter combines advanced features such as Leq and SEL measurements, a built-in datalogger, and a PC interface to provide a complete solution for sound level analysis and data logging.
The Extech 407780A is an integrating sound level meter that allows for the measurement of Leq (Equivalent Continuous Sound Level) and SEL (Sound Exposure Level). These measurements provide valuable insights into the overall sound level and the cumulative exposure to sound over time. With the A and C frequency weighting options, you can select the appropriate weighting for your specific measurement requirements.
The meter features a built-in datalogger, capable of recording up to 32,000 records. This allows for long-term monitoring and data collection without the need for constant manual recording. The recorded data can be easily accessed and analyzed using the PC interface, providing a convenient way to review and interpret the logged information.
The 4-digit multifunction LCD display of the Extech 407780A provides clear and comprehensive readings. It includes an analog bargraph and a digital reading for programming integration times, allowing you to customize the measurement parameters according to your specific needs. The meter also offers impulse, fast, and slow response settings, giving you flexibility in capturing different sound characteristics.
Features
- Meets IEC 61672-1, 60651/60804 Type 2 and ANSI S1.4 Type 2 specifications
- Precise linearity over wide range (100dB)
- 4-digit multifunction LCD with analog bargraph
- Measurement Parameters: SPL, SPL MIN/MAX, SEL, and Leq
- Programmable integrating time
- A and C Frequency weighting
- Impulse/Fast/Slow response settings
- Datalogging function records up to 32,000 records
- Real time calendar/clock
- Analog and alarm output features can be used to connect with frequency analyzers, chart recorders, external dataloggers, and sound level alarms
- Built-in USB interface with included Windows® datalogging software
- Detachable 1/2" electret condenser microphone
- Tripod mount
| Extech 407780A Specifications | |
| Applicable Standards | IEC 61672-1, 60651 and 60804 Type 2, ANSI S1.4 Type 2 |
| Accuracy | ±1.5dB (ref 94dB@1KHz |
| Resolution | 0.1dB |
| Digital Display | 4 digital LCD |
| Measurement Parameters | SPL, SPL MIN/MAX, SEL, and Leq |
| Measurement Range | 30dB to 130dB |
| Linearity Range | 100dB |
| Measurement Frequency Range | 31.5Hz to 8KHz |
| Frequency Weighting | A and C |
| Response | Impulse, Fast and Slow |
| Microphone | 1/2 " Electret condenser microphone |
| Sampling time | updated every 0.5s |
| Bargraph | 4dB steps, 100dB range, 125ms update |
| Analog AC/DC Output | 2Vrms (at full scale), 10mVDC/dB |
| Power Supply | Four 1.5V AA batteries, Optional AC adapter |
| Battery Life | Approximately 24 hours |
