Extech HDV540 High-Definition Articulation Videoscope
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

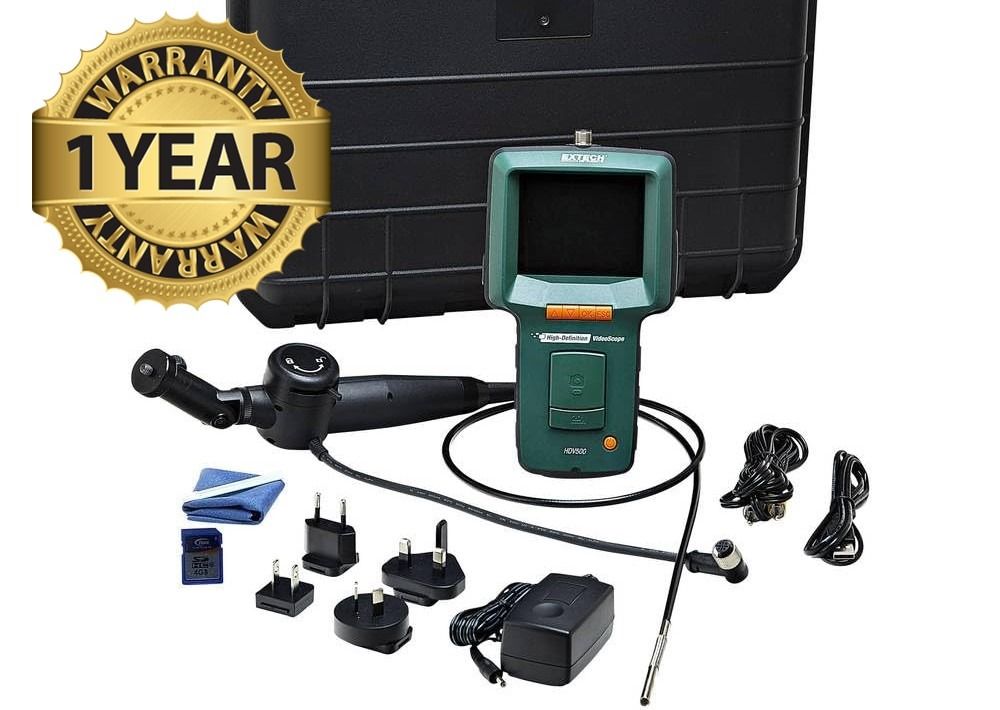

- Extech HDV540 High-Definition Articulation Videoscope (BC# -L/T)
- AC Adapter
- Carrying Case

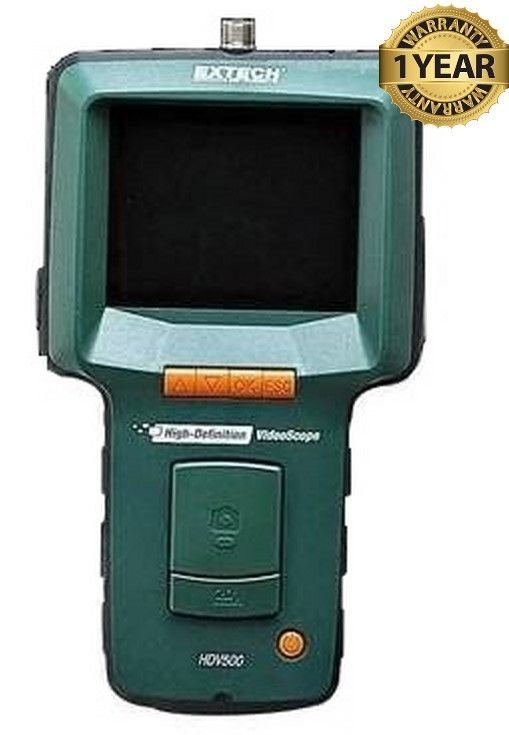

Extech HDV540 High-Definition Articulation Videoscope
The HDV540 is a light-weight VideoScope Kit that includes a wired handset and 6 mm diameter camera. Easy, one-hand operation of the articulating camera tip facilitates viewing in obstructed areas where standard camera tips cannot access. Images and videos are viewed on the high resolution color display or external monitors, and they can be stored in SD memory card (included) or a USB flash drive. Featuring a glare free close up field of view, AV output for viewing images/video on a monitor, record voice-over audio in video recording mode, and memory storage of 20,000 images.
Key Features:
⦁ Includes wired handset with nondetachable 6mm flexible probe (1m) with macro lens
⦁ Articulating probe tip adjusts up to 240° viewing angle
⦁ 3.5" (89mm) color LCD TFT with high definition 320 x 240 pixel resolution
⦁ Compact, high-resolution water-proof (IP67)camera probe
⦁ Camera head with four built-in bright LED lamps and dimmer to illuminate viewed object
⦁ Glare-free close-up field of view
⦁ Store more than 20,000 images on 4GB SD card
⦁ AV output for viewing images/video on a monitor
⦁ Video and images can be transferred to a PC via the SD card or USB output
⦁ Record voice-over audio in video recording mode
Specifications
| Focus distance | 0.8 to 2.36″ (2 to 6cm) |
| Field of View | 57° |
| Shaft diameter | 0.24″ (6mm) |
| Working length | 39″ (1m) |
| Camera Tip bend radius | 240° (120° left, 120° right) |
| LCD Color TFT Display/ Pixels | 3.5″ (8.9cm) size/ 320 x 240 pixel resolution |
| Frame Rate | 30 fps frame rate (NTSC & PAL) |
| SD Card | 4GB SD memory card included (supports up to 32GB SD storage) |
| Operating | up to 6 hours AVI video |
| Dimensions/Weight | Meter w/battery: 8.3×4.3×1.6″ (21cmx11cmx4cm)/ 14.1oz (400g) |
