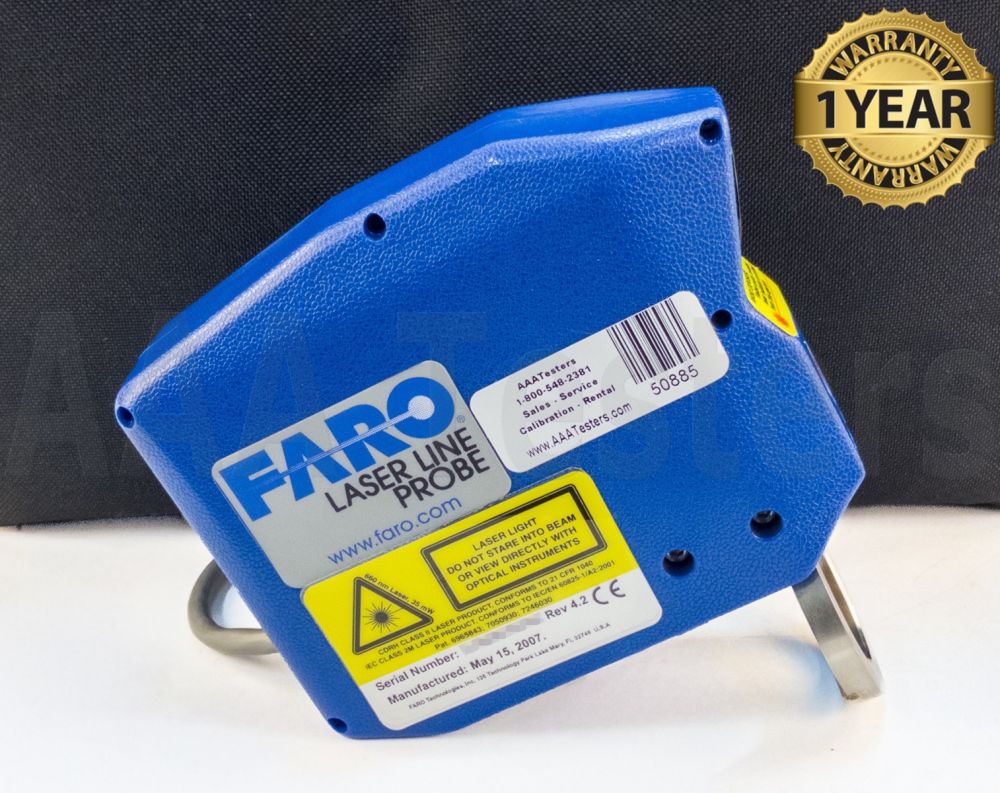

Faro Laser Line Probe V2
Condition: Refurbished
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Faro Laser Scan Arm Line Laser Probe V2 (BC# 50885)
- Lock Ring
- Micro Fiber Cloth
- Hard Transit Case
Faro Laser Scan Arm Line Laser Probe V2
Proven Accuracy; Maximum Versatility
The FARO Laser ScanArm is the first ever seven-axis contact/non-contact measurement device with a fully integrated FARO Laser Line Probe. Unlike other scanning systems, the ScanArm’s hard probe and Laser Line Probe can digitise interchangeably without having to remove either component. Users can accurately measure prismatic features with the Arm’s hard probe, then laser scan sections requiring larger volumes of data (more than 19,000 points per-second) — without adding or removing attachments, untangling cabling, or having to use a separate CMM.
Most Common Applications
Aerospace: Reverse Engineering, Certification, Part Inspection
Automotive: Tool Building & Certification, Alignment, Part Inspection
Metal Fabrication: OMI, First article inspection, Periodic Part Inspection
Molding/Tool & Die: Mold and Die Inspection, Prototype Part Scanning
Features:
- Fully integrated 7-axis ScanArm
- Laser scan up to 19,200 points per second
- Use laser and hard probes interchangeably
- Take measurements within the same software
- No attachments or tangled cables
Specifications:
| Accuracy: | 50μm (.002”) |
| Repeatability: | ±50μm, 2σ (±.002”) |
| Stand-off: |
3.75” (95mm) |
| Depth of Field: |
3.35” (85mm) |
| Effective Scan width: | Near Field 1.34” (34mm) Far Field 2.36” (60mm |
| Points per line: |
640 points/line |
| Scan Rate: |
30 frames/second 30fps x 640 points/line = 19,200 points/sec. |
| LASER: |
660nm, CDRH Class II/IEC Class 2M |
