Fitel S185LDF Large Diameter Cladding Fusion Splicer
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide

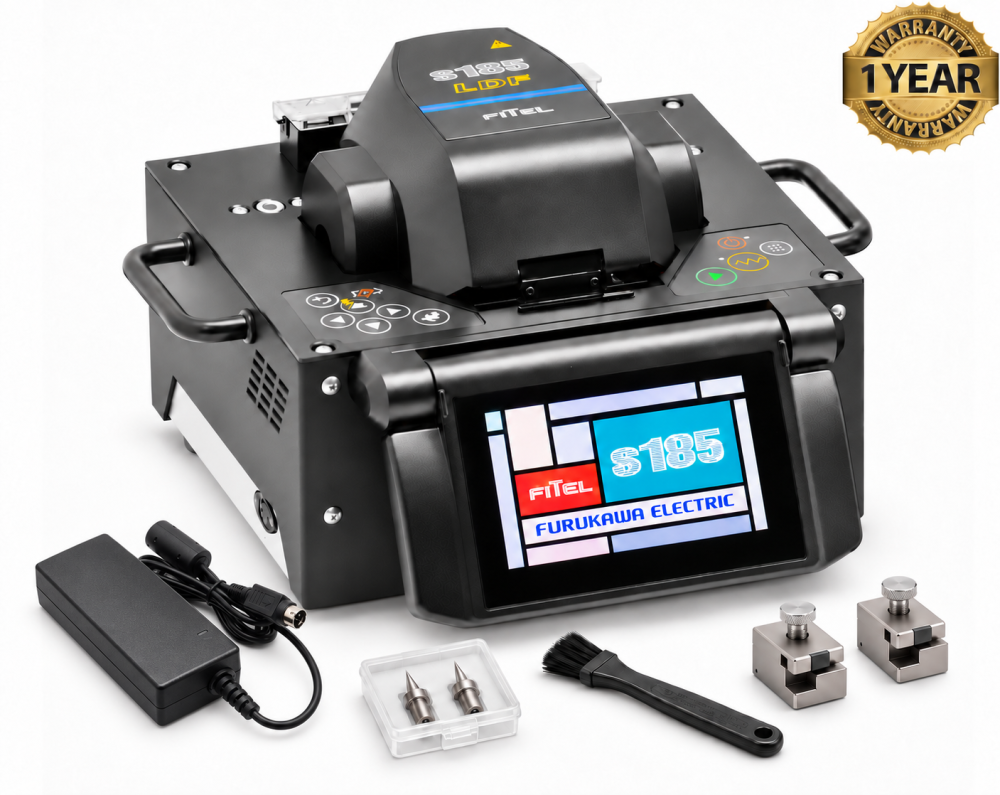

- Fitel S185LDF Large Diameter Cladding Fusion Splicer (BC# -L/T*)
- AC Adapter/Charger
- Power Cord
- Carrying Case (G)

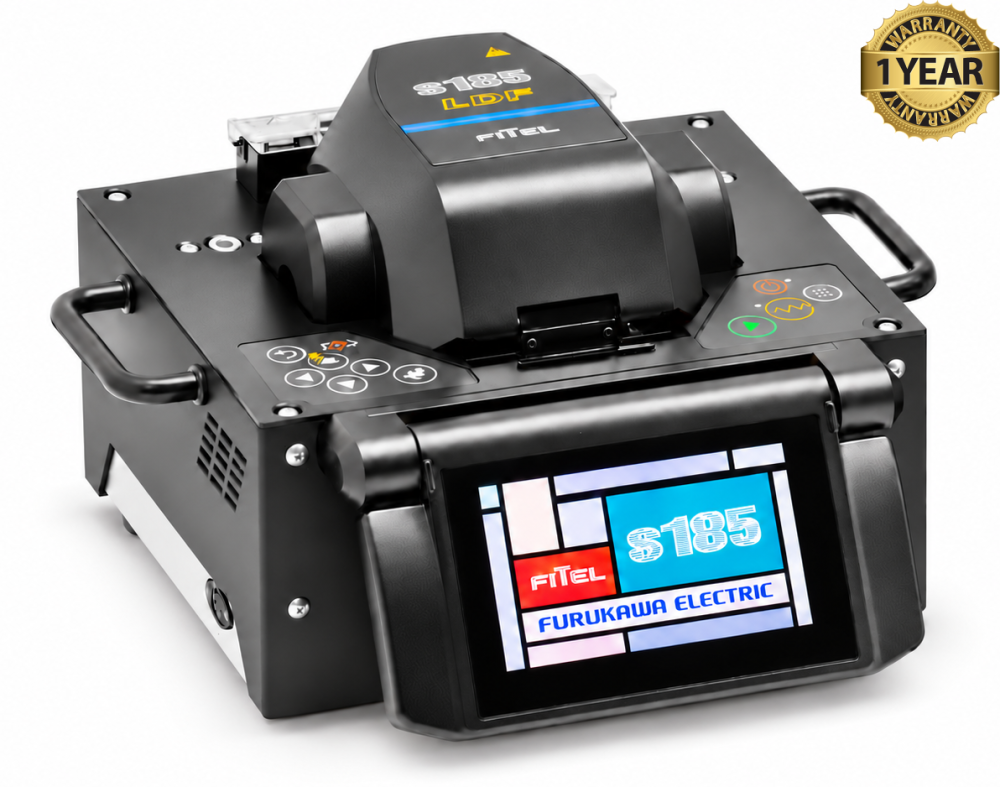

Fitel S185LDF Large Diameter Cladding Fusion Splicer
The FITEL S185LDF is a fusion splicer designed to join large-diameter optical fibers. It supports fibers with cladding diameters from 80 to 500 µm, making it suitable for fiber-laser work as well as other specialty fiber applications.
The splicer aligns prepared fiber ends and fuses them together to create a permanent connection with low optical loss. It can handle several fiber types, including single-mode, multimode, erbium-doped, and large-diameter fiber. Gently closing clamps help protect delicate fibers during setup.
Its compact body and color touchscreen make it practical for both production work and maintenance at a jobsite. Operators can view magnified fiber images, choose splice programs, and save splice records. An optional built-in battery allows use away from an AC outlet.
The S185LDF also includes a heater for compatible splice-protection sleeves. For teams working with specialty fibers, its adjustable programs, precise alignment, and record storage provide a repeatable way to make and document fiber connections.
Features:
- Splices fibers with 80–500 µm cladding diameters
- Supports single-mode, multimode, dispersion-shifted, erbium-doped, high-index, and large-diameter fibers
- 4.3-inch color touchscreen with magnified fiber views
- Gently closing fiber clamps to reduce the chance of damage
- Stores up to 200 splice programs and 1,000 splice records
- Built-in sleeve heater; typical heating time is 35 seconds with the specified 40 mm sleeve
- Optional built-in battery and optional Wi‑Fi remote control
| Specification | Fitel S185LDF |
|---|---|
| Product type | Large-diameter fiber fusion splicer |
| Supported fiber types | Single-mode, multimode, DS, NZDS, high-index, erbium-doped, and large-diameter fiber |
| Cladding diameter | 80–500 µm |
| Coating diameter, fiber holder | 160–2,000 µm |
| Coating diameter, coating clamp | 160–900 µm |
| Typical splice loss | 0.014 dB for standard single-mode fiber |
| Return loss | Greater than 60 dB |
| Typical splice time | 15 seconds for single-mode fiber using cladding clamps |
| Protection sleeve length | 10–60 mm |
| Typical heat time | 35 seconds with an S922 40 mm sleeve |
| Splice programs | Up to 200 |
| Heater programs | Up to 100 |
| Splice record storage | Up to 1,000 records, including images |
| Display | 4.3-inch color touchscreen |
| Power | 100–240 V AC; built-in battery optional |
