FLIR T640 30Hz 640 x 480 24.6mm Infrared Thermal Imager
$9,979.00
Availability:
In stock
SKU
Ti55
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA Only

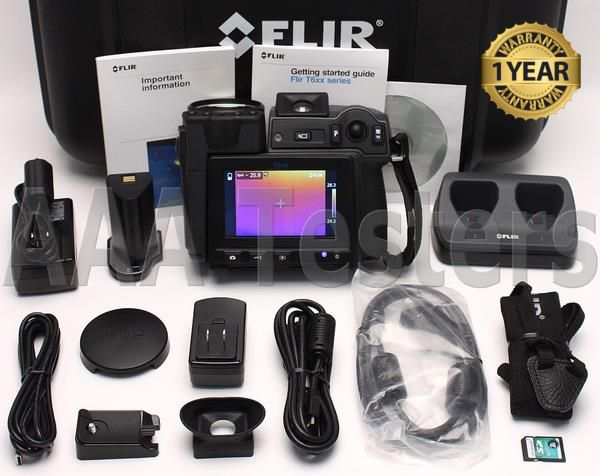

- FLIR Systems T640 Infrared Thermal Imaging Camera P/N: 55902-2502 (BC# 21347-L/T*)
- HDMI Cable
- HDMI Mini To DVI Cable
- FLIR Dual Bay Battery Charger Dock
- FLIR Getting Started Guide
- FLIR Important Information HandBook
- Spare Boot For Lens
- 2GB Memory Card
- Lens Cap
- Tripod Mount
- (2) Battery Packs
- (2) AC Adapter/Chargers
- USB PC Interface Cable
- User Manual On CD-ROM
- Strap For Unit
- Hard Carrying Case
Request a Quote for
| Due to strict commerce control regulations, AAATesters does not ship or export Thermal Imagers to any countries outside of the United States. |
| International customers, please note that we cannot complete any order that includes a Thermal Imager product. AAATesters cannot complete any sale where the intent may be that a Thermal Imager product may be exported internationally by the end user. |
| All customers that are purchasing Thermal Imager products from AAATesters will be required to complete a BIS-711 end use agreement form to ensure that the Thermal Imager product will not be exported internationally. |
FLIR T640 Thermal Imager
High performance thermal imaging with on-board 5MP visual camera, interchangeable lens options with autofocus, and large 4.3" touchscreen LCD.
These thermal cameras combine excellent ergonomics with superior image quality, providing the ultimate image clarity and accuracy plus extensive communication possibilities:
- Highest IR Resolution in Its Class
- Crisp thermal images with 307,200 pixels (640 × 480) for the best detection, pictures, and temperature measurements from long range
- New! MSXﾙ Enhancement
- Multi-Spectral Dynamic Imaging adds visible spectrum definition to IR images in real time for excellent thermal detail that instantly highlights problem locations (T640 only)
- New! Field of View (FOV) Match
- Option to match the visible camera fi eld of view to the IR FOV for better documentation
- New! GPS
- Automatically adds location data to images for including in reports (live link in FLIR Tools Reports to Google Maps)
- Programmable Button
- Provides easy access to favorite functions
- Wi-Fi Connectivity
- Send images and data to smartphones and tablets and share critical information quickly with the FLIR Tools Mobile for Apple® and Androidﾙ, featuring live video streaming and remote control via the mobile device
- Accuracy
- Calibrated within +/ﾖ 2°C or +/ﾖ 2% of reading
- High Temperature Range
- measures to 3632°F (2000°C) targeting electrical/industrial applications
- Scalable P-i-P and Thermal Fusion
- Blend thermal with visible light images on-screen; includes picture-in-picture window sizing
- Multiple Measurements
- Report all the details with 10 measurement spots, 5 box areas, Delta T temperature differential, isotherm, and auto hot/cold markers
- METERLiNK®
- Wirelessly transmit vital diagnostic data from clamp and moisture meters directly to the camera for annotating thermal images to further support fi ndings and decisions
- Annotation
- Add voice comments via Bluetooth headset and text notes from the touchscreen keypad. New! T640 has image sketch feature to draw circles and pointers on IR/Visual stored images
- InstantReport
- Create PDF document directly from the camera
Specifications:
| Temperature range | -40°F to 3632°F (-40°C to 2000°C) |
| Thermal sensitivity (N.E.T.D) | <0.035°C at 30°C |
| Zoom | 8X Continuous |
| Focus | Continuous, Manual or Automatic (one shot) |
| LCD Image Sketch | Draw on stored images right on touchscreen |
| Multi-Spectral Dynamic Imaging (MSX) | IR image with enhanced detail presentation |
| Viewfinder | Color Viewfinder for viewing images in bright or sunny conditions |
| Measurement Presets | Presets for standard measurements |
| Profile measurement analysis | Shows a live graph of temperatures across a line on the image |
| Frame Rate | 30Hz |
| Field of view/Minimum focus distance/FOV Match | 25° x 19° / 0.82ft (0.25m) / Field of View Match where Digital Image FOV adapts to the IR lens |
| Detector Type - Focal plane array (FPA) uncooled microbolometer | 640 x 480 pixels |
| Spectral range | 7.5 to 14µm |
| Lens | 25° or 45° models (optional 7°, 15°, 25°, 45°, 80°, Close up 100, 50µm lenses available) |
| Display | Built-in touch-screen 4.3" color LCD (800 × 480 pixels) |
| Image modes | Thermal/Visual/Fusion/P-i-P (Resizable and movable ) and Thumbnail Gallery |
| Automatic Image adjustment | Continuous/manual; linear or histogram based; possible to lock max, min or span temperature |
| Manual image adjustment | Level/span/max/min |
| Image storage | 1000 radiometric JPEG images (SD card memory) |
| Image annotation | Voice (60 sec); text comments, Sketch |
| Periodic image storage | 7 seconds to 24 hours (IR) and 14 seconds to 24 hours (IR and visual) |
| Video Lamp | Bright LED lamp |
| Laser Classification/Type | Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red) |
| Set-up controls | Mode selector, color palettes, confi gure info to be shown in image, local adaptation of units, language, date and time formats, and image gallery |
| Measurement modes | 10 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T |
| Measurement correction | Reflected ambient temperature & emissivity correction |
| GPS | Location data automatically added to every image from built-in GPS |
| Video Recording in Camera and Video Streaming | Non-radiometric IR-video recording (MPEG-4 to memory card), Visual and Radiometric IR-video streaming (Full dynamic to PC using USB or Wi-Fi), and Non-radiometric IR-video streaming (MPEG-4 using Wi-Fi and uncompressed colorized video using USB) |
| Battery Type/operating time | Li-lon/ 2.5 hours, Display shows battery status |
| Charging system | In camera AC adapter/2 bay charging system |
| Shock / Vibration / Encapsulation; Safety | 25G, IEC 60068-2-29 / 2G, IEC 60068-2-6 / IP54; EN/UL/CSA/PSE 60950-1 |
| Dimensions / Weight | 5.6 x 7.7 x 3.7" (143x196x94mm)/2.87lbs (1.3kg), including battery |
For full FLIR T640 specifications, please click here: FLIR T640
