Flir A50 Thermal Core Camera

Flir A50 Thermal Core Camera

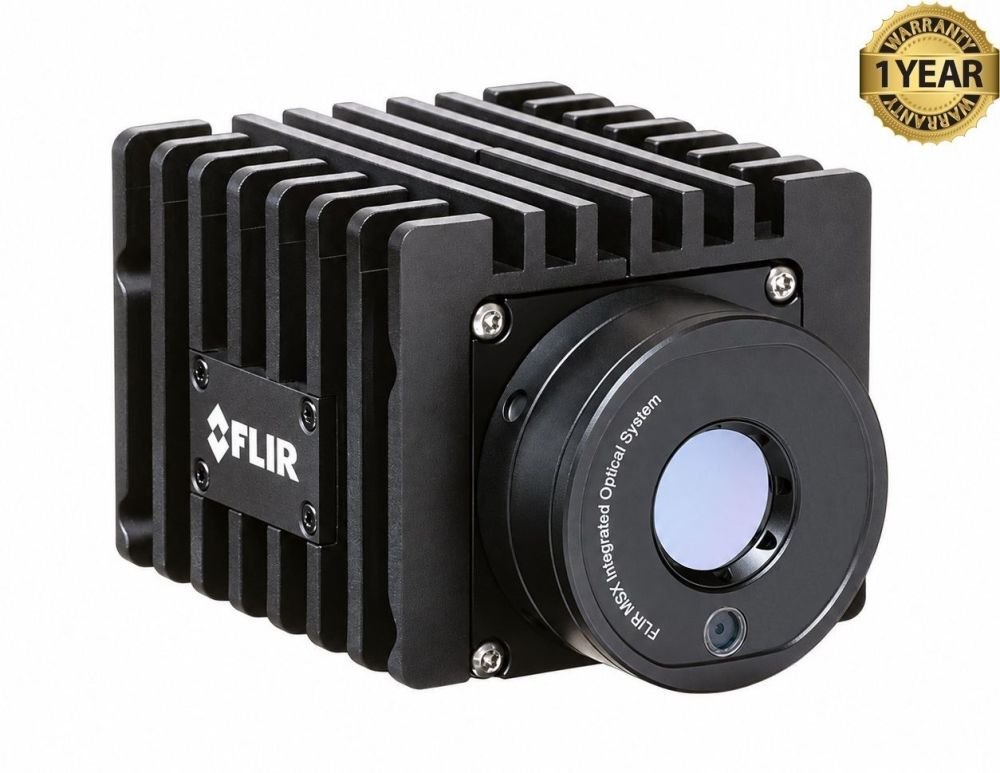

The FLIR A50 Thermal Core Camera is a compact, fixed infrared camera designed for industrial monitoring, automation, and thermal testing. It detects infrared energy emitted by objects and creates images that reveal temperature patterns. Engineers and technicians use it to examine heating, cooling, and other thermal behavior without physically contacting the surface being inspected.

The A50 provides 464 × 348 thermal resolution and captures images at 30 frames per second. Its sensitivity helps reveal small temperature differences, making it useful for observing changing conditions in equipment, components, and production processes. Available 29°, 51°, and 95° lens configurations provide different viewing coverage for focused inspections or wider monitoring areas.

The term “Thermal Core” identifies the camera hardware and lens, which are paired with a selected operating configuration. With the Image Streaming configuration, the A50 sends thermal images and data to a computer for analysis using compatible software. With the Smart Sensor configuration, it can perform temperature analysis inside the camera and provide measurement results and alarms to connected systems.

The camera supports applications such as electronics testing, product development, quality assurance, and equipment condition monitoring. For example, it can help users observe how a component heats during operation or identify uneven temperatures during a manufacturing process. Thermal recordings provide information that can support troubleshooting, design comparisons, and decisions about maintenance or process adjustments.

Ethernet connectivity and Power over Ethernet simplify integration into permanent installations and test setups. Depending on its configuration, the A50 supports machine vision interfaces, industrial communications, and optional features such as a visible camera with MSX image enhancement or Wi-Fi. Its configurable design allows users to select the capabilities needed for their monitoring or analysis application.

Features:

• 464 × 348 infrared resolution for detailed thermal imaging.
• 30 Hz frame rate for monitoring changing temperatures.
• Uncooled microbolometer detector operating in the 7.5–14 µm infrared range.

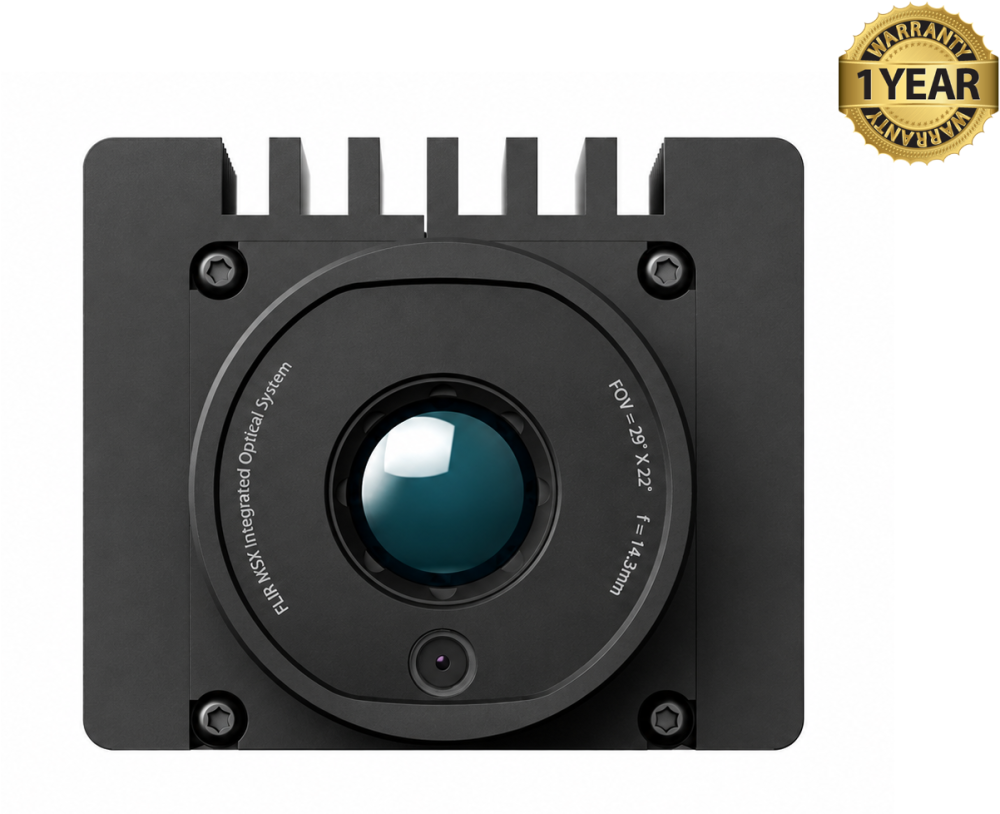

• 29°, 51°, or 95° lens options for different viewing coverage.
• Fixed focus, adjustable with the supplied tool.
• Standard temperature ranges covering −20°C to +1000°C, with alternative-range versions available.
• Gigabit Ethernet connectivity for camera control and data transfer.
• Power over Ethernet (PoE) to simplify installation.
• Image Streaming configuration: sends thermal images and radiometric data to compatible computer software.
• Smart Sensor configuration: provides built-in temperature analysis and alarms.
• Optional visible camera and MSX enhancement, depending on lens and configuration.
• Optional Wi-Fi connectivity.
• Compact design for fixed industrial monitoring, automation, and testing.
