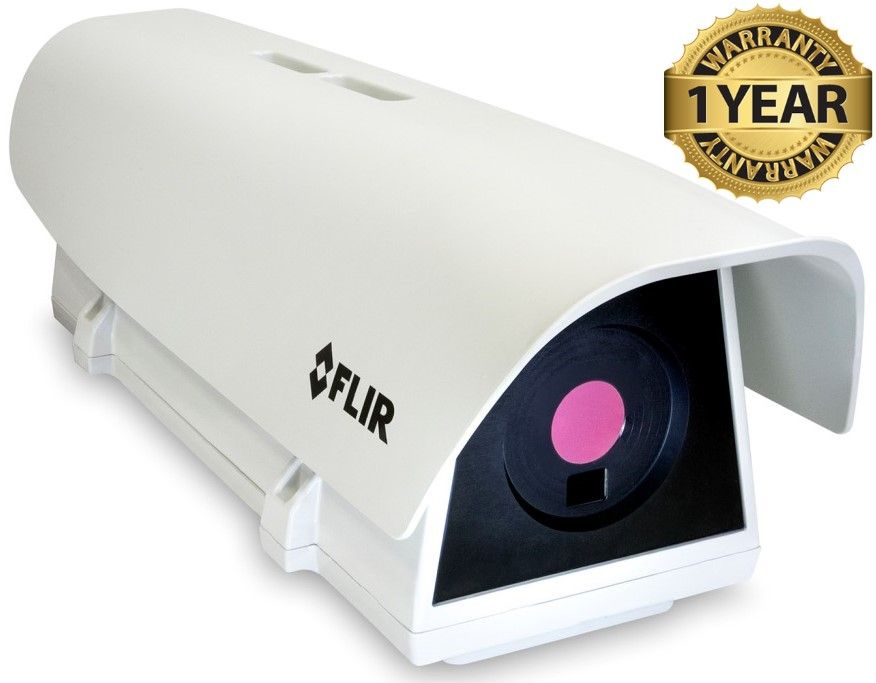

Flir A700f Advanced Smart Sensor Thermal Imager

Flir A700f Advanced Smart Sensor Thermal Imager

The FLIR A500f and A700f advanced thermal imaging sensors offer integrated analytics and alerting for outdoor condition surveillance and proactive fire prevention. These devices empower organizations to safeguard assets, enhance safety protocols, increase operational continuity, and lower upkeep expenses. Encased in a robust housing for challenging environments, the FLIR A500f/A700f series integrates high-performance thermal imaging with edge processing and industrial IoT connectivity, facilitating straightforward integration into both new and established networks. For video management system integration, thermal and visual data feeds can be viewed separately or in a combined display.

These cameras are designed for simple integration, configuration, and operation within human-machine interface (HMI) and supervisory control and data acquisition (SCADA) systems, providing automation solution providers with a quick implementation path.

For Outdoor Monitoring

A variety of communication and control methods facilitate straightforward integration with common security and Industrial IoT systems, such as HMI/SCADA, ONVIF, Modbus, MQTT, and REST API protocols.

Simplify Integration

Streamline your inspection planning and report generation process. FLIR Thermal Studio’s Route Creator allows you to develop efficient routes and simplifies the reporting workflow.

Consistent, Accurate Results

Offering thermal imaging with a resolution reaching 640 by 480 pixels, remote motorized focus, Flexible Scene Enhancement and the flexibility of three viewing angles, the A500f/A700f series consistently delivers dependable measurements.

SIMPLIFY INTEGRATION

FLIR A500f/A700f cameras provide communication and control options that allow easy integration into existing monitoring systems

• HMI/SCADA-compatible using Modbus TCP client &
server and Ethernet/IP
• ONVIF S compliant and integrates into standard
security VMS and NVR solutions including control of
pan/tilts
• Ready for the fourth industrial revolution, with
support for widely adopted IIoT protocols such as
MQTT and REST API, in both XML and JSON format

BEST-IN-CLASS
OPERATIONAL FEATURES

Tailor thermal imaging monitoring to meet any site’s unique requirements

• Improve definition of areas of interest or object curvatures using polygon, polyline, and line function
• Integrate into industrial automation systems using analog and digital control thanks to superior I/O control via Modbus TCP Client and Server, Ethernet IP, REST API, and MQTT
• Conserve network bandwidth with compressed radiometric streaming to FLIR Atlas SDK polarized glasses

UNMATCHED THERMAL
IMAGING

Deliver consistent, accurate results in harsh conditions

• Provides superior image quality with up to 640 × 480 (307,200 pixels) thermal resolution
• Increase contrast in even-temperature scenes and enhance edge detail in low light using FSX (Flexible Scene Enhancement) technology
• Ensure temperature accuracy of objects at different distances using remote motor focus via Ethernet communication


Specifications:
