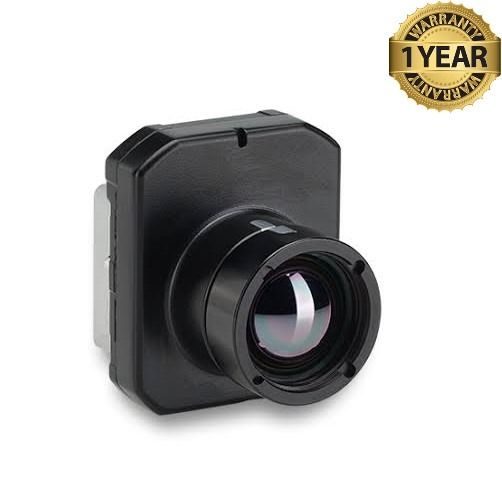

Flir Boson Thermal Camera
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA Only
- Flir Boson Thermal Camera (BC# -L/T*)
Flir Boson Thermal Camera
FLIR today announced Boson, its smallest, lightest, and least power-consuming, high-performance uncooled thermal camera for original equipment manufacturers (OEMs) that make products for firefighting, automotive, maritime, hunting, UAS, and the military. The Boson design allows for expanded computing capability on the camera and a dramatic reduction in price.
Smaller than the Tau 2 core, FLIR’s other high-performance uncooled core, and double the size of the low-cost Lepton core, Boson is the first thermal camera core to incorporate a sophisticated, low-power multi-core vision processor unit that helps make Boson the smartest thermal core on the planet.
Boson uses FLIR’s XIR expandable infrared video processing architecture to help OEMs take advantage of advanced image processing and video analytics while keeping power consumption low. Manufacturers of drones, cars, weapons sights and handheld imagers will now have the ability to process video onboard, and allow Boson to do things our previous cores could not.
Features
- 640 and 320 resolutions; 12 µm pixel pitch VOx microbolometer
- Multiple high-performance FOV options; eight QVGA options and eight VGA options
- Multiple levels of sensitivity starting at <40 mK • 21 x 21 x 11 mm, (4.9 cm3 ) camera body
- Weight as low as 7.5 grams • Low power consumption, starting at 500 mW
- Rugged construction and highest temperature rating -40°C to +80°C
Specifications
| Imaging | |
| Sensor technology | Uncooled VOx microbolometer |
| Array format | 320 × 256 or 640 × 512 |
| Pixel pitch | 12 µm |
| Spectral range | Longwave infrared; 7.5 µm – 13.5 µm |
| Thermal Sensitivity | <40 mK (Industrial); <50 mK (Professional); <60 mK (Consumer |
| Full frame rates | 60 Hz baseline; 30 Hz runtime selectable |
| Slow frame rate | ≤9 Hz available |
| Non-uniformity Correction NUC | Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN) |
| Solar protection | Integral |
| Continuous Zoom | 1X to 8X zoom |
| Symbol overlay | Re-writable each frame; alpha blending for translucent overlay |
| Optics | |
| Array Format | 320 x 256 640 x 512 HFOV; effective focal length HFOV; effective focal length 92°; 2.3 mm 95°; 4.9 mm 50°; 4.3 mm 50°; 8.7 mm 34°; 6.3 mm 32°; 14.0 mm 24°; 9.1 mm 24°; 18.0 mm 16°; 13.8 mm 18°; 24.0 mm 12°; 18.0 mm 12°; 36.0 mm 6°; 36.0 mm 8.0°; 55.0 mm 4.0°; 55.0 mm 5.5°; 73 mm |
| Electrical | |
| Input voltage | 3.3 VDC |
| Power dissipation | Varies by configuration; as low as 500 mW |
| Video channels | CMOS or USB-2 |
| Control channels | UART or USB |
| Peripheral channels | I2C, SPI, SDIO |
| Configurable GPIO | Up to 11; User configurable |
| Environmental | |
| Operating temperature range | -40°C to 80°C |
| Non-operating temperature range | -50°C to 105°C |
| Shock | 1,500 g @ 0.4 msec |
| Operational altitude | 12 km (max altitude of a commercial airliner or airborne platform) |
