FLIR E8-XT 9Hz 320 x 240 Infrared Thermal Imaging Camera 63908-0905 MSX IR E 8XT
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA Only

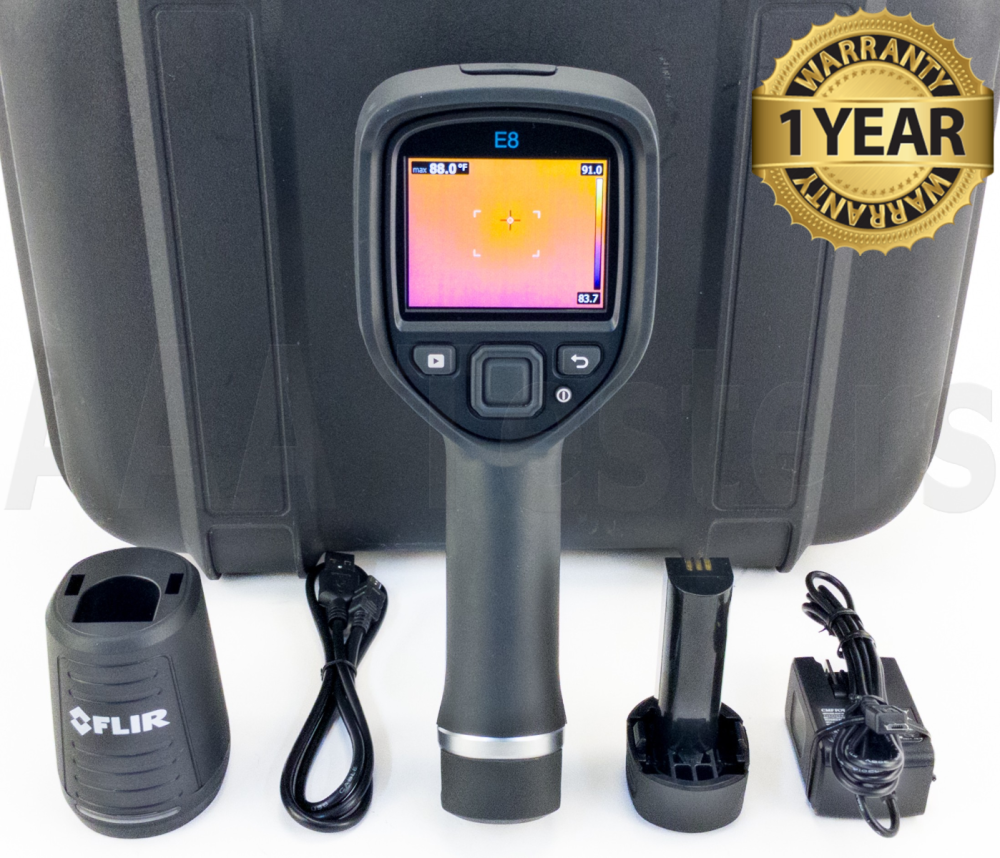

- FLIR E8XT Thermal Imaging Camera (BC# 50380)
- FLIR Ti98440 Battery Charger w/ AC Adapter
- FLIR Getting Started Guide
- FLIR Important Information Manual
- FLIR User Documentation Software CD-ROM
- (2) Battery Packs
- Hard Carrying Case (G)
FLIR E8 XT Thermal Imager
New Exclusive MSX Thermal Imaging Technology Made Affordable for Everyday Use
What is MSX? Multi-Spectral Dynamic Imaging (MSX) for easier interpretation of an image - adds visible spectrum definition to IR images by detecting the edges of objects and including that detail in the thermal image. Text becomes clearly visible so that you can read a label or identifier within the IR image. This exclusive function provides extraordinary thermal detail that instantly highlights and orients problem locations and eliminates the need to refer back to a visual image for detail.
Affordable Resolution Choices
From the 4800-pixel thermal image clarity of the E4 to the E8’s incredible 320×240 detector with 76,800 pixels, FLIR Ex-Series cameras offer a resolution to fit the target size, working distance, and detail required for your application as well as your budget.
The Power of One Button
A focus-free lens and simple button navigation to on-screen settings, imaging modes, measurement tools, and saved JPEGS make all four of these cameras amazingly easy to operate, even with just the press of a single gloved thumb.
Removable Battery
Quick-release, tool-type Li-ion battery is easy to remove, recharge and snap back in. Charge in-camera or with the optional charging station to keep you up and running all day.
Fast Temperature Measurement Tools
The E4 on up feature an on-screen center spotmeter for measuring temperatures. The E8 also gives you an area box tool with an automatic hot or cold spot that hunts down temperature extremes. And the E6 and E8 provide a blue-below and red-above color alarm to quickly alert you to heat issues.
Multiple Imaging Modes
All Ex-Series cameras let you view thermal, visual, and MSX images and store them simultaneously for further analysis using FLIR Tools software. The E8 also offers Picture-in-Picture that inserts the thermal image over the visible photo as an extra documentation option.
Features:
- Display: 3” color LCD
- On-board 640 x 480 Digital Camera
- Easy-to-use, weighs only 1.2lbs
- 2% accuracy
- File format: Radiometric jpg
- Swappable Li-ion Battery with 4 hour life
- Spot Measurement mode
- Simultaneous storage of IR/Visual/MSX images
- Picture in Picture image
- Manual level and span thermal tuning
- Area Box Measurement mode
- 76,800 pixels (320 x 240)
Specifications:
| Imaging and Optical Data | |
| IR Resolution |
320 x 240 |
| MSX Resolution |
320 x 240 |
| Thermal Sensitivity |
<0.05°C |
| Field of View |
45° x 34° |
| Focus |
Focus Free |
| Detector |
Uncooled Microbolometer |
| Screen |
3.0 in. 320 x 240 color LCD |
| Frame Rate |
9 Hz |
| Analysis |
|
| Image Modes |
Thermal MSX,Thermal, Picture-in-Picture,Thermal blending, Digital camera. |
| Multi Spectral Dynamic Imaging (MSX) |
IR image with enhanced detail presentation |
| Picture-in-Picture |
IR Area on visual image |
| Temperature Range |
-4°F to 1022°F (-20° to 550°C) |
| Accuracy |
±2% or 2°C |
| Set-Up |
|
| Color Palettes |
Iron, Rainbow, and Black and White |
| Set-up Commands |
Local adaptation of units, language, date and time formats |
| Image Storage |
|
| Storage Capacity |
Internal memory store at least 500 sets of images |
| Storage Mode |
Simultaneous storage of images in IR, visual and MSX |
| File Formats |
Standard JPEG, 14-bit measurement data included |
| Other | |
| Battery Type / Op Time |
~4 hours |
| Dimensions / Weight |
/ 1.27 lbs (0.575 kg) |
| Drop |
2 Meter / 6.6 ft |
