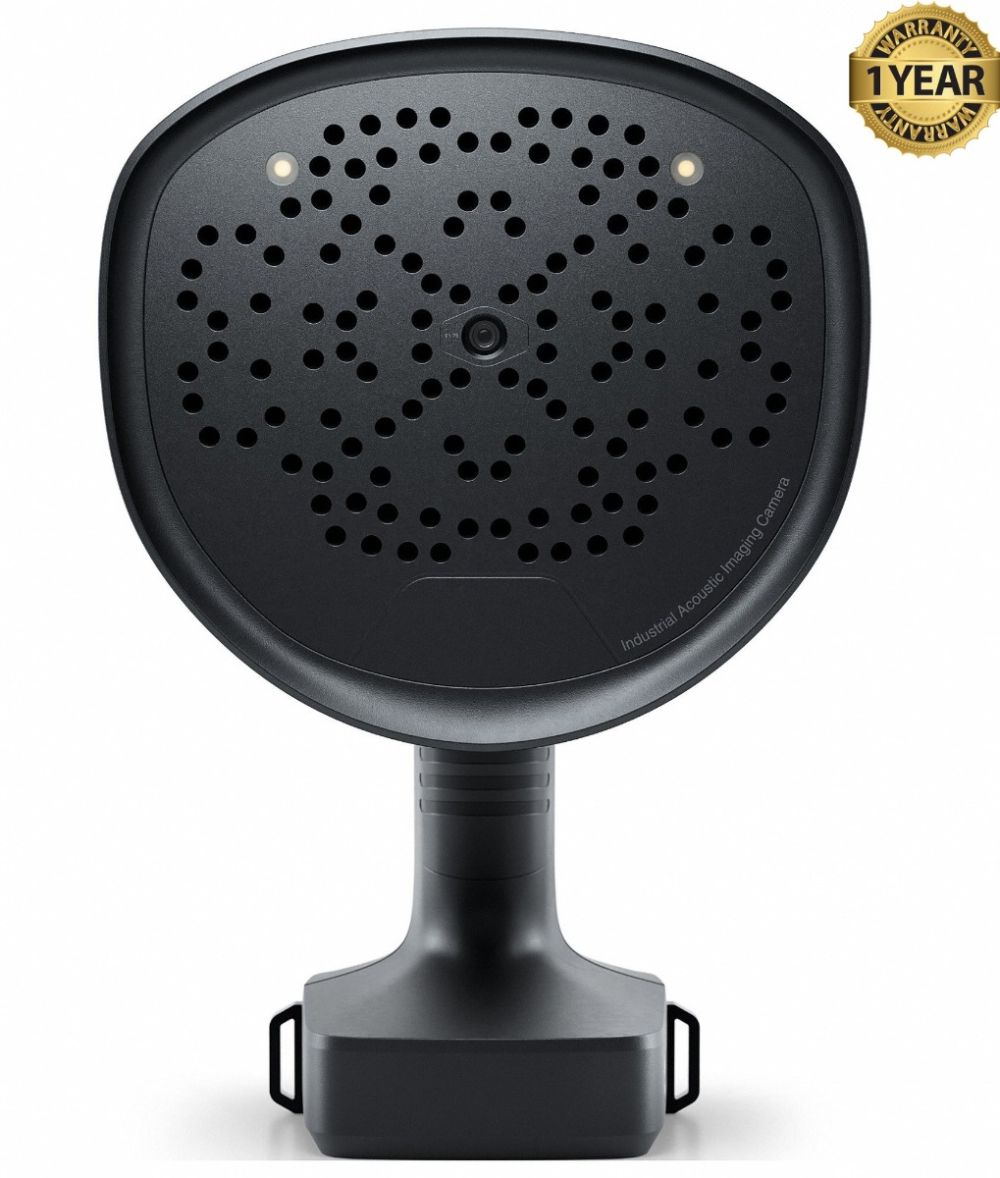

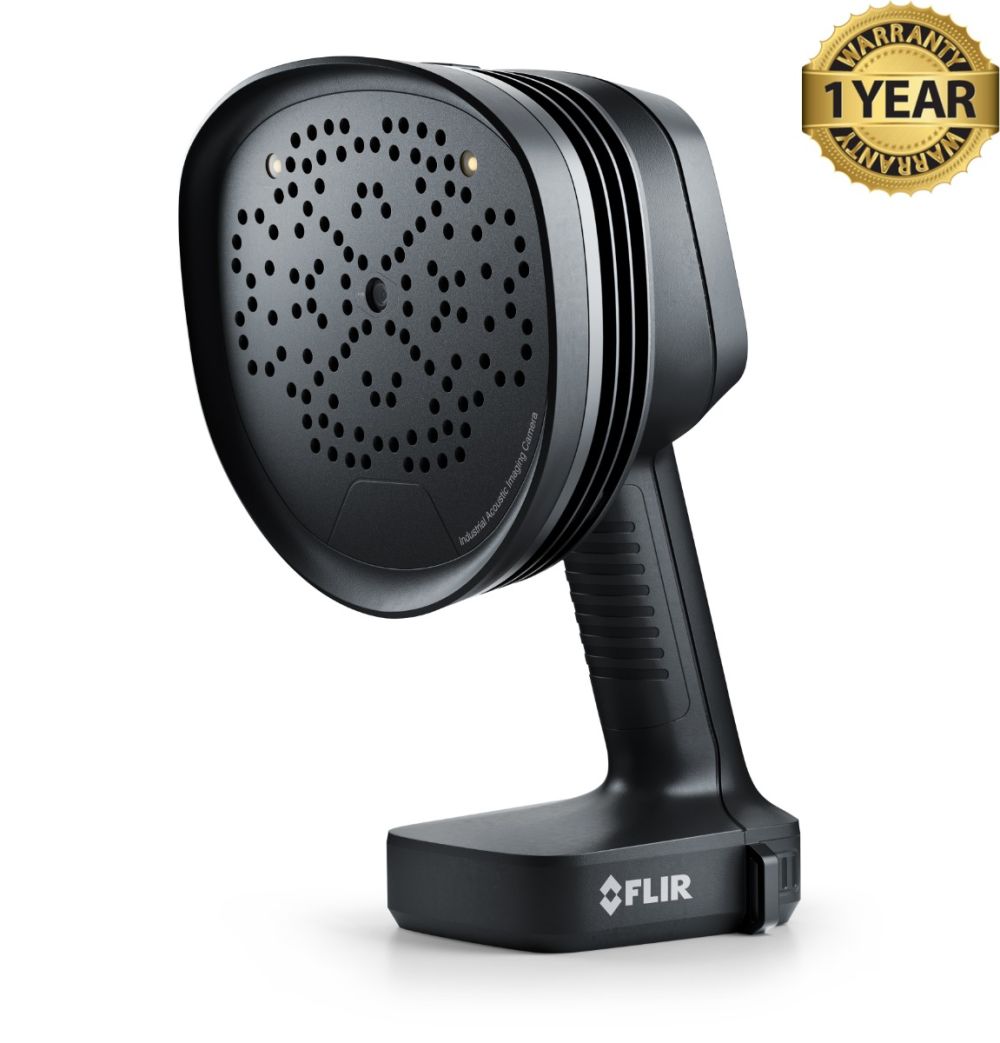

Flir Si2 Pro Industrial Acoustic Imaging Camera
Condition: Refurbished
Warranty: 1 Year Warranty
Shipping: USA Only
- Flir Si2 Pro Industrial Acoustic Imaging Camera (BC# -L/T*)
Flir Si2 Pro Industrial Acoustic Imaging Camera
The Si2-Pro camera helps you significantly lower costs associated with mechanical bearing issues and partial discharge on electrical equipment. It also enables you to drastically reduce leaks in your facilities, cutting down expenses related to compressed air and gas leaks. With the Si2 series, you'll experience the best-in-class performance, decision support, fleet management, and enterprise data integration available.
Precisely detect, locate, and measure compressed air leaks, gas leaks, and partial discharges. Identify and quantify both minor and elusive issues from up to 200 m (656 ft) away—boosting operational efficiency and ensuring safety.
For specialized needs, you can choose from additional models: opt for the Si2-LD for advanced leak detection and mechanical fault detection applications or select the Si2-PD for your electric utility applications. Explore these models in the related products section below to find the perfect fit for your requirements.
Features
- Superior sound detection with 124 microphones
- Buil-in automatic frequency tuning and distance measurement
- Machine learning capabilities for accurate measurements
- 12 MP color camera, 8x digital zoom for excellent image clarity
- Upload or transfer snapshots and videos for further analysis
- Effortless one-hand operation
- IP54-rated for protection against water and dust
- On-camera measurement and cost analysis features
Specifications
|
Acoustic Measurement |
124 low-noise MEMS microphones, real-time sound visualization |
|
Severity Assessment |
Automatic AI-based severity assessment including recommended actions onboard camera |
|
Distance |
From 0.3 m (1.0 ft) up to 200 m (656 ft) |
|
Leak Rate |
0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft) |
|
Camera software update |
Automatic Over The Air (OTA) wireless update or via USB connection |
|
Field of view (FOV) |
75° diagonal |
|
Video Frame Rate |
Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps |
| Video Image Resolution |
1280 × 720 |
|
Zoom |
8x Digital zoom |
|
Acoustic Measurement |
124 low-noise MEMS microphones, real-time sound visualization |
|
Bandwidth |
2 kHz to 130 kHz |
|
Detection Threshold |
20 kHz: -15 dB SPL |
|
Detects Following Gases |
Detects all gases provided they are under sufficient pressure. Quantifies leak rate costs for compressed air, ammonia, argon, CO₂, helium, hydrogen, methane, natural gas, and nitrogen. |
|
Discharge Detection |
Mechanical fault detection |
|
Distance |
From 0.3 m (1.0 ft) up to 200 m (656 ft) |
|
Leak Rate |
0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft) |
|
Display |
Size: 5 in. 1280 × 720 |
|
Battery |
Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh |
|
Battery Charger |
Input: 19-26 V DC, 2.8 A |
|
Nominal Input Voltage |
Nominal input voltage: 12 V DC |
|
Operating And Storage Humidity |
0-90% recommended |
|
Operating Temperature Range |
–10°C to 50°C (14°F to 122°F) |
|
Storage Temperature Range |
–20°C to 70°C ( –4°F to 158°F) |
|
Protection Class |
IP54 |
