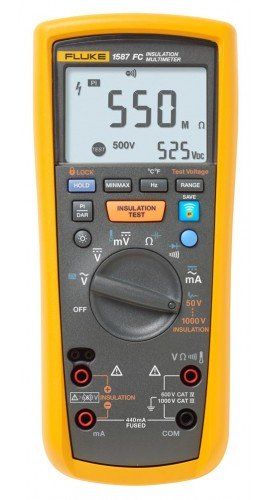

Fluke 1587 FC Insulation Multimeter Full Featured Digital True RMS Tester

$595.00

Availability: In stock

SKU

10H26

Condition: Refurbished / Calibrated

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

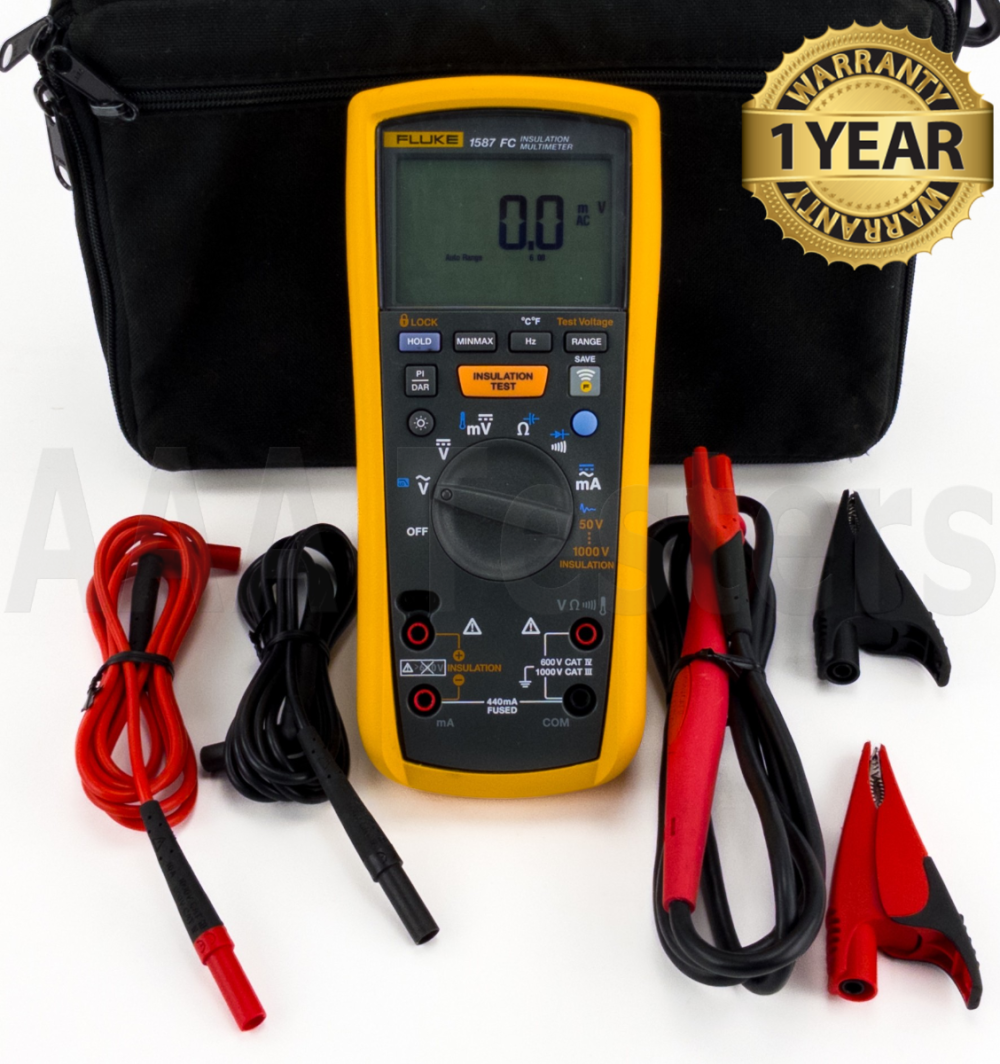

Included

Fluke 1587 FC Insulation Multimeter (BC# 53636)
(2) Fluke Flexible Test Leads
Carrying Case

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Company

E-mail address

First Name

Phone Number

Last Name

Country

Comment

Description

Fluke 1587 FC Insulation Multimeter

Two powerful tools in one.
The Fluke 1587 and 1577 Insulation Multimeters combine a digital insulation tester with a full-featured, true-rms digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. Like other tools that you have come to expect from Fluke, the 1587 and 1577 are rugged, reliable and easy to use. Whether you work on motors, generators, cables or switch-gear, the Fluke 1587/1577 Insulation Multimeters are ideally suited to help you with your tasks.

Features:

Large display with backlight
Insulation test (1587: 0.01 MΩ to 2 GΩ) (1577: 0.1 MΩ to 600 MΩ)
Insulation test voltages (1587: 50 V, 100 V, 250 V, 500 V, 1000 V),(1577: 500 V, 1000 V) for many applications
Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
Auto-discharge of capacitive voltage for added user protection
AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (Ω), Continuity
Filter for motor drive measurements (1587 only)
Capacitance, diode test, temperature, Min/Max, frequency (Hz) (1587 only)
Auto power off to save battery power
CAT III 1000 V, CAT IV 600 V measurement category

Specifications:

Maximum voltage applied to any terminal:	1000 V ac rms or dc
Storage temperature:	-40 °C to 60 °C (-40 °F to 140 °F)
Operating temperature:	-20 °C to 55 °C (-4 °F to 131 °F
Temperature coefficient:	0.05 x (specified accuracy) per °C for temperatures < 18 °C or > 28 °C (< 64 °F or > 82 °F)
Relative humidity, non-condensing:	< °C 0 % to 95 % @ 10 °C to 30 °C (50 °F to 86 °F) 0 % to 75 % @ 30 °C to 40 °C (86 °F to 104 °F) 0 % to 40 % @ 40 °C to 55 °C (104 °F to 131 °F)
Vibration:	Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
Shock:	1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
Electromagnetic compatibility:	In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: accuracy = specified accuracy ± 5 °C (9 °F). (EN 61326-1:1997)
Safety:	Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
Certifications:	CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard EN 61010 Part 1-1002
Batteries:	Four AA batteries (NEDA 15A or IEC LR6)
Battery life:	Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off
Size:	5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in W x 8.00 in L)
Weight:	550 g (1.2 lb)
IP rating:	IP40
Altitude (operating):	2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
Storage:	12,000 m
Over-range capability:	110 % of range except for capacitance which is 1 %
Compliance to EN 61557:	IEC61557-1, IEC61557-2
