The Fluke 1623 is a distinctive earth ground tester that can perform all four types of earth ground measurement. Specifically, the Fluke 1623 tester is able to measure earth ground loop resistances using only clamps ﾖ called Stakeless testing. This method doesnﾒt require the use of earth ground stakes or the disconnection of ground rods.
Testing Methods
- 3- and 4-Pole Fall of Potential ﾖ standard earth ground testing using two ground stakes
- Selective testing ﾖ without disconnecting ground rods, a technician can measure ground resistance using a combination of stakes and a clamp.
- Stakeless testing ﾖ innovative solution using only clamps, instead of ground stakes, to measure earth ground loop resistance.
|
Features:
- One-button measurement concept
- 3- and 4-pole earth ground measurement
- 2-pole resistance measurement AC
- Selective testing, no disconnection of ground conductor (1 clamp)
- Stakeless testing, quick ground loop testing (2 clamps)
- Measuring frequency 128 Hz
| RA 3-pole ground resistance measurement (IEC 1557-5) |
| Measuring Voltage |
|
| Short circuit current |
|
| Measure frequency |
|
| Resolution |
| Fluke 1623 |
0.001 ? to 10 ? |
|
| Measuring range |
| Fluke 1623 |
0.001 ? to 19.99 k? |
|
| Intrinsic error |
| Fluke 1623 |
± (2 % of reading + 3 digit) |
|
| Operating error |
| Fluke 1623 |
± (5 % of reading + 3 d) |
|
| RA 4-pole ground resistance measurement (IEC 1557-5) |
| Measuring Voltage |
|
| Short circuit current |
|
| Measure frequency |
|
| Resolution |
| Fluke 1623 |
0.001 ? to 10 ? |
|
| Measuring range |
| Fluke 1623 |
0.001 ? to 19.99 k? |
|
| Intrinsic error |
| Fluke 1623 |
± (2 % of reading + 3 d) |
|
| Operating error |
| Fluke 1623 |
± (5 % of reading + 3 d) |
|
| RA 3-pole ground resistance measurement with current clamp |
| Measuring Voltage |
|
| Short circuit current |
|
| Measure frequency |
|
| Resolution |
| Fluke 1623 |
0.001 ? to 10 ? |
|
| Measuring range |
| Fluke 1623 |
0.001 ? to 19.99 k? |
|
| Intrinsic error |
| Fluke 1623 |
± (7 % of reading + 3 d) |
|
| Operating error |
| Fluke 1623 |
± (10 % of reading + 5 d) |
|
| RA 4-pole selective ground resistance measurement with current clamp |
| Measuring Voltage |
|
| Short circuit current |
|
| Measure frequency |
|
| Resolution |
| Fluke 1623 |
0.001 ? to 10 ? |
|
| Measuring range |
| Fluke 1623 |
0.001 ? to 19.99 k? |
|
| Intrinsic error |
| Fluke 1623 |
± (7 % of reading + 3 d) |
|
| Operating error |
| Fluke 1623 |
± (10 % of reading + 5 d) |
|
| Stakeless ground loop measurement |
| Measuring Voltage |
|
| Measure frequency |
| Fluke 1623 |
128 Hz (125 Hz on request) |
|
| Noise current (Iext) |
| Fluke 1623 |
Max. Iext = 10 A (ac) (RA < 20 ?) |
 |
Max. Iext = 2 A (ac) (RA < 20 ?) |
|
| Resolution |
| Fluke 1623 |
0.001 ? to 0.1 ? |
|
| Measuring range |
| Fluke 1623 |
0.001 ? to 199.9 k? |
|
| Intrinsic error |
| Fluke 1623 |
± (7 % of reading + 3 d) |
|
| Operating error |
| Fluke 1623 |
± (10 % of reading + 5 d) |
|
| Environmental Specifications |
| Working temperature |
|
-10 °C to +50 °C |
|
| Operating Temperature |
|
0 °C to +35 °C |
|
| Nominal temperature |
|
+18 °C to +28 °C |
|
| Storage Temperature |
| Fluke 1623 |
-20 °C to +60 °C |
|
| Climatic class |
|
C1 (IEC 654-1), -5 °C to + 45 °C, 5 % to 95 % RH |
|
| Protection type |
|
IP56 for case, IP40 for battery door according to EN 60529 |
|
| Safety Specifications |
| Safety Rating |
|
CAT II, 300 V |
|
| Mechanical & General Specifications |
| Display |
| Fluke 1623 |
1999 digit LCD ﾖ display with special symbols, digit height 25 mm, fluorescent backlight |
|
| Size |
|
133 mm x 187 mm x 250 mm |
|
| Weight |
| Fluke 1623 |
1.1 kg (including batteries) |
|
| Battery Life |
| Fluke 1623 |
Typical > 3000 measurements |
|
For full Fluke 1623 product specifications, please click here: Fluke 1623

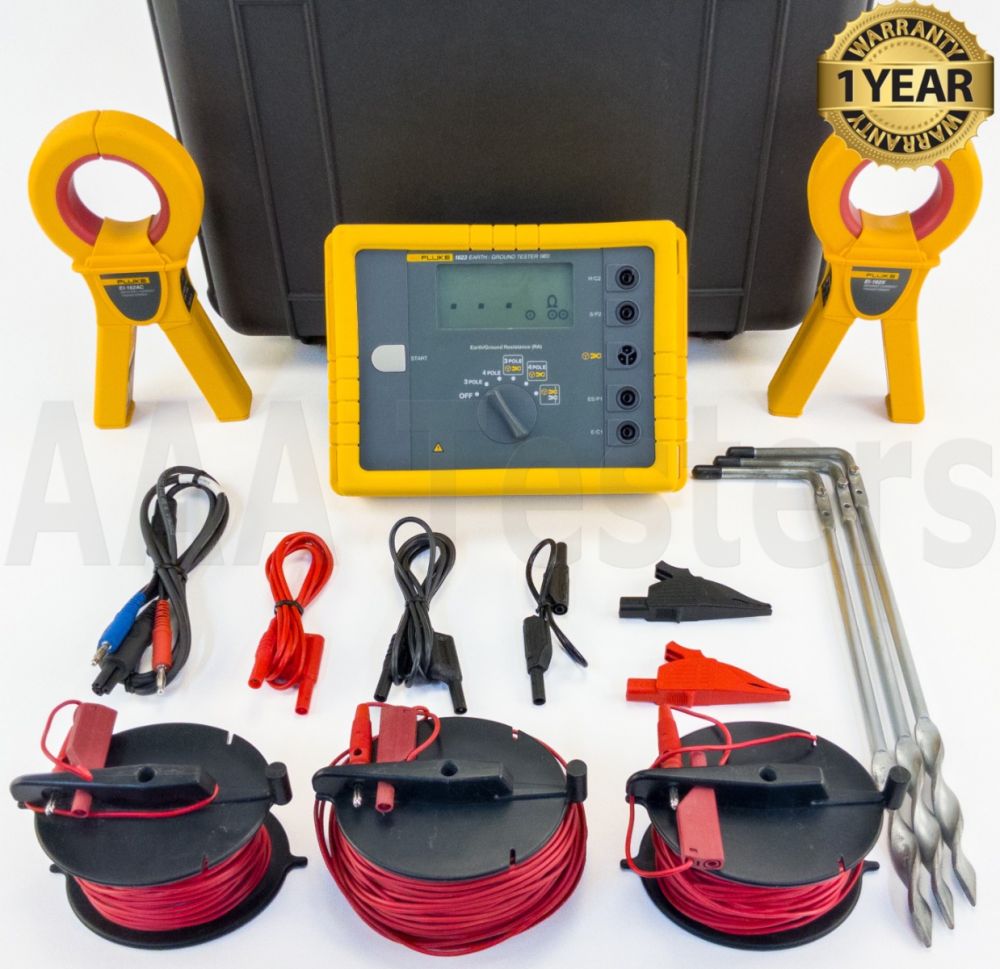

Fluke 1623 Advanced Earth / Ground Tester Geo Kit
