Fluke 5820A 2.1Ghz Oscilloscope Calibrator w/ 5 Channel 5820
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Fluke 5820A High Performance Oscilloscope Calibrator
Intuitive easy-to-use design
The standard 5820A is designed to calibrate the bulk of your oscilloscope calibration workload everything up to 600 MHz. Its bandwidth extension option lets you extend that capability still further — to oscilloscopes with bandwidths up to 2.1 GHz.
For automated applications, the five-channel option allows you to calibrate up to four oscilloscope channels, with trigger, simultaneously without changing cables. This allows you to perform fast, hands-free automated calibrations with documented procedures and results while freeing the operator to complete other work — a dramatic productivity improvement. Plus, the external trigger allows you to work with tough-to-capture signals like fast edges simultaneously.
Specifications:
| DC Voltage Range |
± 10V |
DC Accuracy 0 to ± 5.99V |
0.05% + 1 mV |
| DC Accuracy ± 6 to ± 10V |
0.25% + 10 mV |
| Resistance Measurement Range |
40Ω to 60Ω and 500 kΩ to 1.5 MΩ |
| Capacitance Measurement Range |
5 pF to 50 pF ± (5% of input + 0.5 pF)2 |
| General Specifications | |
| Warm up Time | 2x the time since last warmed up, to a maximum of 30 minutes |
| Interfaces | IEEE-488 (GPIB), RS-232 |
| Temperature Performance | Operating: 0°C to 50°C Calibration: 15°C to 35°C Storage: -20°C to 70°C |
| Relative Humidity | Operating: < 80% to 30°C, < 70% to 40°C, < 40% to 50°C Storage: < 95%, non-condensing. A power-on stabilization period of four days may be required after extended storage at high temperature and humidity. |
| Safety | Designed to comply with IEC 1010-1 (1992-1), ANSI/ISA-S82.01-1994; CAN/CSA-C22.2 No. 1010, 1-92 |
| Analog low isolation | 20 volts |
| EMC | Complies with EN 61326-1 |
| Line Power | Line voltage (selectable): 100V, 120V, 220V, 240V |
| Size | Height 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet; width 43.2 cm (17 in), standard rack width; depth 47.3 cm (18.6 in) overall |
| Weight | 20 kg (44 lbs.) |
Fluke 5820A Oscilloscope Calibrator
Options:
- 2.1 GHz Bandwidth
- 5 Channel
The powerful 5820A Oscilloscope Calibrator is a complete, yet flexible solution for oscilloscope calibration. It calibrates virtually all of your digital and analog oscilloscopes quickly, easily and affordably.
Fluke 5820A Oscilloscope 5820A-oscilloscope Calibrator Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.
BC# -L/T*

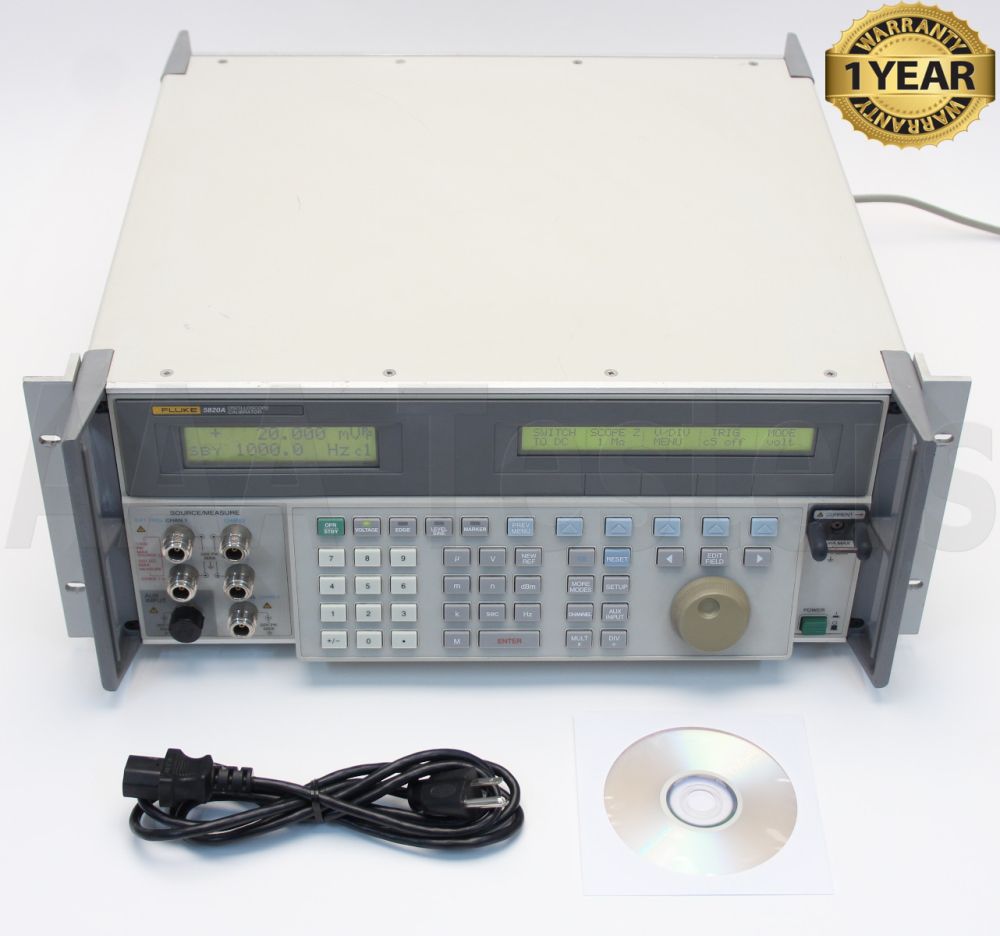

- Fluke 5820A Oscilloscope Calibrator (BC# -L/T*)
- Installed Options:
- 2.1GHz Option
- 5 Channels Option
- Installed Options:
- AC Power Cord
- User Manual On CD-ROM
