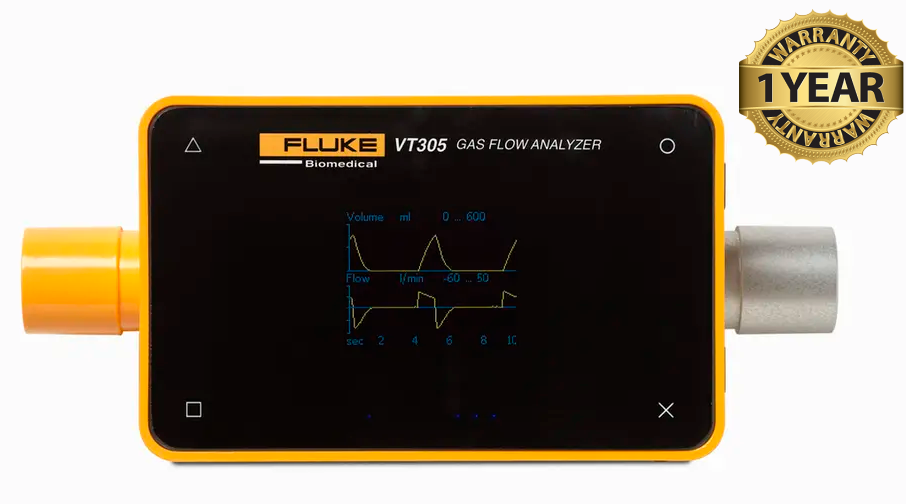

Fluke Biomedical VT305 Gas Flow Analyzer
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Fluke Biomedical VT305 Gas Flow Analyzer (BC# L/T*)
Fluke Biomedical VT305 Gas Flow Analyzer
The VT305 Portable Gas Flow Analyzer is the quick and easy way to test medical gas flow and pressure devices. This versatile tool evaluates the performance of a wide variety of devices and multiple ventilator parameters.
The VT305 features internal sensors to make connecting to medical devices a fast and easy process. The four-button front-panel control makes switching to the best view of measured data simple. Onboard graphing capabilities allow users to view waveforms right on-screen, and measurements (numeric and waveform data) can be stored on the unit’s 2 GB SD card with a simple button touch. Users can upload these measurements to a computer for viewing or printing using the included Windows-compatible utility program.
The base unit measures flow, pressure and oxygen concentration. It also measures gas temperature within the on-board flow-measurement channel to make correction to selectable gas standards easy.
Additionally, the VT305 is compatible with Ansur software, which streamlines the standard work for testing medical devices through ready-to-use templates and easy drag-and-drop template modifications. The automation provided by the Ansur software helps reduce human error, improves consistency in data collection and reporting, and ensures compliance to OEM requirements.
Features:
- Bidirectional flow, volume, vacuum, pressure and oxygen concentration measurements
- Display orients itself horizontally and vertically
- Four-button control
- Portable and compact
- USB for computer control
- 2 GB SD card memory for storing results
Specifications:
| Display | Display 26 x 33 mm, reflective CLCD |
| Operational modes | Standalone without any PC software or with the Ansur VT Plug-in |
| Gas types | Air, Air/O2 Man, Air/O2 Auto, N2O/O2 Man, He, Heliox (21 % O2), He/O2 Man, He/O2 Auto, N2, CO2 |
| Gas standards/compensations | ATP, ATPD, ATPS, AP21, STP, STPH, BTPS, BTPD, 0/1013, 20/981, 15/1013, 25/991, 20/1013 |
| Battery power supply | Battery life: 4 hours, VT305 operation only |
| External power supply | Input voltage: 100 to 240 V ac, 50/60 Hz Output voltage: 12 V |
| Pressure | |
| Difference | Operating pressure (Differential): - 200 to 200 mbar Span accuracy: ± 0.75 % or ± 0.1 mbar |
| High | Operating pressure: 0 to 10 bar Span accuracy: ± 1 % or ± 10 mbar |
| Airway/in the flow channel | Operating pressure: - 50 to 150 mbar Span accuracy: ± 0.75 % or ± 0.1 mbar |
| Barometer | Operating pressure: 500 to 1150 mbar Span accuracy: ± 1 % or ± 5 mbar |
| Flow | |
| Flow port | Operating flow range: ± 300 slpm Accuracy: ± 1.9 % or ± 0.1 l/min, whichever is greater Ambient pressure compensated: Yes Temperature compensated: Yes Fittings: 15 mm OD/ID, 1:40 conical male |
| Oxygen concentration | |
| Oxygen measurement | Range: 0 to 100 % Accuracy: ± 1 % O2 Sensor technology: Galvanic Fuel Cell Calibration: Allows user calibration using air and 100 % O2 |
