Fluke Networks LIQ-Kit LinkIQ Tester & Intellitone Pro 200 Cable Network Tester

Cable testing you trust. Network testing you need.

LinkIQ™ enables you to:

• Find maximum cabling speed (Up to 10 Gb/s).
• Install and troubleshoot PoE devices via Switch Negotiation and PoE Load Test. Ethernet Alliance PoE Certified for reliable multi-vendor interoperability.
• Discover connected switch information (Switch Name, IP address, Port Number, MAC Address, and VLAN)
• Test connectivity to TCP/IP network through IP configuration and ping
• Verify Gateway and DNS server responsiveness and availability
• Document your work through LinkWare™ PC


The LinkIQ™ is capable of measuring lengths up to 1000 feet (305 m) and provides distance to faults such as opens, shorts, and unterminated cable. Using the remote ID allows for a complete wire map of the cable pairs which helps identify miswired and split pairs. The primary cable testing feature of LinkIQ™ is the cable performance test which qualifies the cabling bandwidth from 10BASE-T to 10GBASE-T (10 Mb/s up to 10 Gb/s). It performs these tests via frequency-based measurements. Using IEEE-standards-based measurements ensures that tested links meet performance requirements as opposed to transmission testers which only prove that the specific test devices can communicate over the link. Operators may set performance requirements from 10 Mb/s to 10 Gb/s for a simple pass/fail indication.

In-Depth PoE Testing

While Power over Ethernet makes installation of devices such as security cameras and access points simpler, a survey by the Ethernet Alliance of over 800 installers, integrators and end users found that four of five respondents experienced difficulties in integrating PoE systems. Part of this can be traced to the fact that the IEEE offers three PoE standards, the term “PoE” is not registered and there are a variety of non-standards-compliant implementations as well.

Specifications:

IntelliTone Pro 200 Probe

Main Features

• IntelliTone 200 Probe locates and isolates hidden or bundled voice data and video cables quickly and reliably even on active networks

Get advanced SuperVision for locating cable hidden in floors, ceilings, walls and in bundles The IntelliTone™ Pro Toner and Probe Series from Fluke Networks is the first toner and probe to offer digital and analog signaling all in one tool. That means it’s equipped with the most powerful cable location technologies for any work environment. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate individual wire pairs, and trace voice, audio, and video cabling.

The IntelliTone™ Pro Toner and Probe Series from Fluke Networks gives you superior vision for locating cables hidden in floors, ceilings, walls, and in bundles. Its breakthrough digital technology makes it the first tool to tone and trace safely and effectively on active networks.

The IntelliTone Pro 200 Probe features a CABLEMAP capability that identifies common cable miswires in twisted pair cabling. Complete per-pin verification of TIA568 wiring identifies the exact wire that is open, shorted or miswired. LED lights and distinctive tones clearly indicate miswires. The built-in Cablemap feature eliminates the need to carry separate tools or returning to the far-end to replace the toner with a mapper. The IntelliTone Pro 200 Kit is the all-in-one tool to locate and map Category 5 cabling even when plugged into a switch, and verify link service after moves, adds and changes.

The IntelliTone™ Probe's signal selection thumbwheel lets you choose which tone type to use. Controlled LED signal indicators and audio tones simplify signal interpretation and take the guesswork out of cable location, reducing even the toughest locating problems into a few minutes' work.

Fluke Networks LIQ-Kit LinkIQ Tester & Intellitone Pro 200 Cable Network Tester

The LinkIQ™ Cable+Network Tester is the testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements and a wire map of the cable under test.

IntelliTone 200 Probe locates and isolates hidden or bundled voice data and video cables quickly and reliably even on active networks

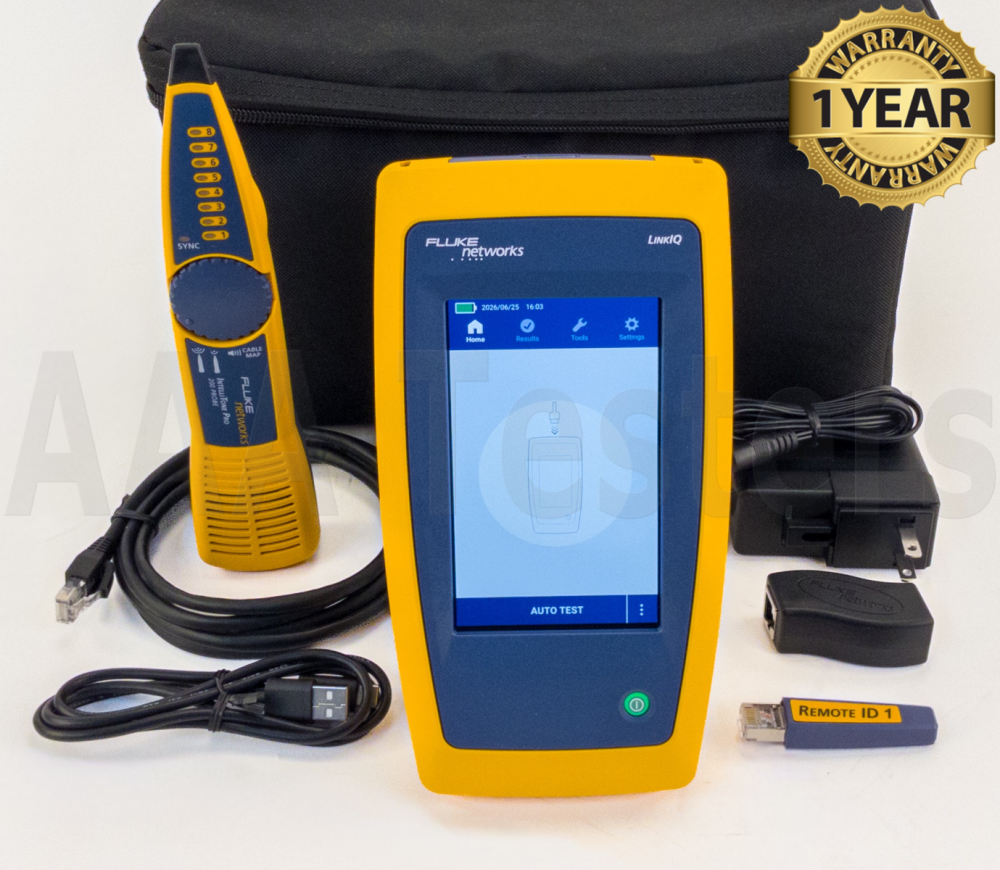

Includes Carrying Case & Accessories As Listed

LIQ-Kit LIQ Kit LIQ100

Fluke Networks LIQ-Kit LIQ100 CableIQ Qualification Tester Models On Sale Warranty Calibration Backed by The Best Service and Lowest Prices in the Industry.

BC# -L/T*

• Fluke Networks LinkIQ Cable Network Tester (BC# L/T*)
• Fluke Networks Intellitone Pro 200 (BC# L/T*)
• Fluke Networks Remote ID (#1)
• (1) Ethernet Cable
• RJ11/RJ45 Universal Adapter
• Strap For Intellitone
• USB PC Interface Cable
• Accessory Case
• User Manual On CD-ROM
• Carrying Case
