On Sale! Fluke Ti9 Infrared Thermal Imager Model Ti-9 Fluke Ti

Description

Due to strict commerce control regulations, AAATesters does not ship or export Thermal Imagers to any countries outside of the United States.

International customers, please note that we cannot complete any order that includes a Thermal Imager product. AAATesters cannot complete any sale where the intent may be that a Thermal Imager product may be exported internationally by the end user.

All customers that are purchasing Thermal Imager products from AAATesters will be required to complete a BIS-711 end use agreement form to ensure that the Thermal Imager product will not be exported internationally.

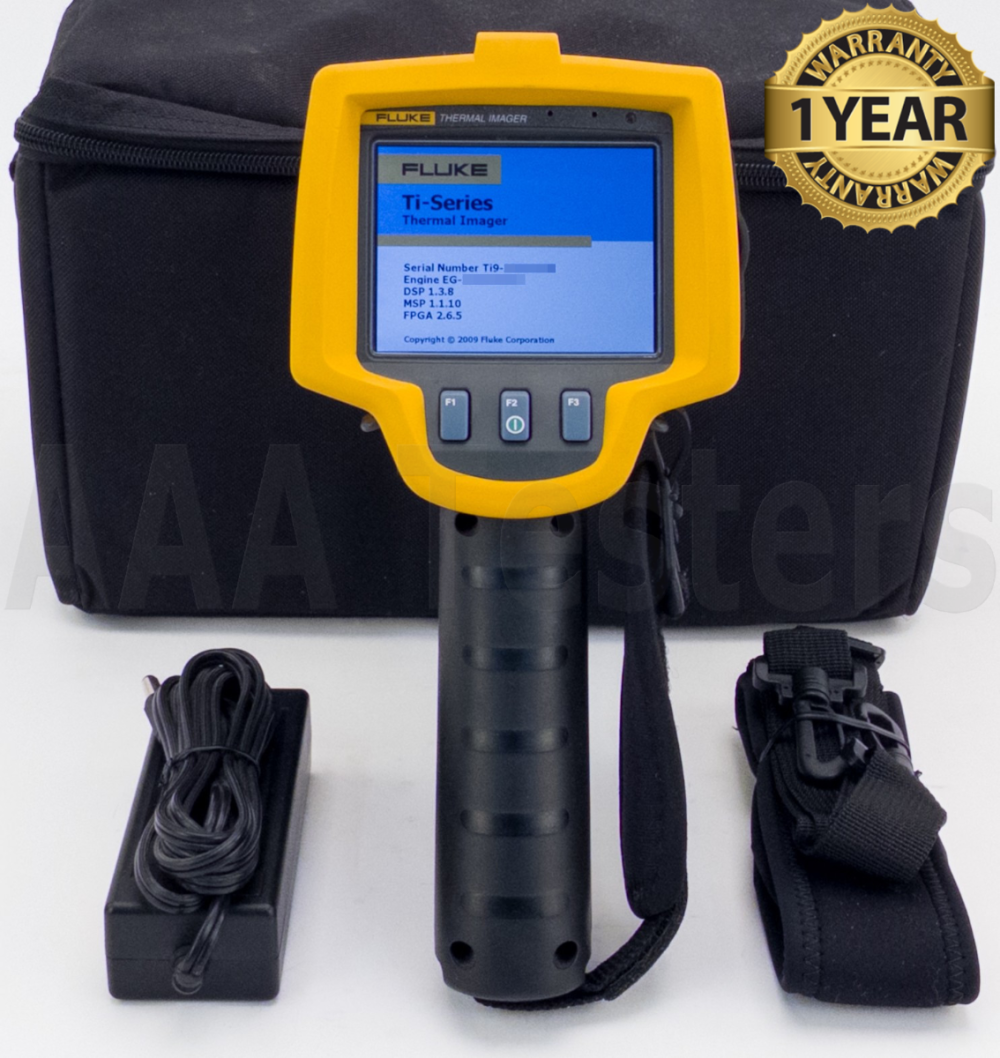

Fluke Ti9 Infrared Thermal Imaging Camera
The Fluke Ti9 Thermal Imager is an entry-level thermal imager that offers a superior image quality, unmatched ruggedness, and unique ease-of-use at a breakthrough price point for the facilities maintenance professional, commercial or residential electrician, and HVAC/R professional.

Optimized for field use in harsh work environments

Engineered and tested to withstand a 2 m (6.5 ft) drop
Withstands dust and water—tested to an IP54 rating.

Delivers the clear, crisp images needed to find problems fast.
Identify even small temperature differences that could indicate problems with excellent thermal sensitivity (NETD).
Intuitive, three-button menu is easy to use

simply navigate with the push of a thumb.

Specifications:

Temperature
Temperature measurement range (not calibrated below -10 °C)	-20 °C to +250 °C (-4 °F to +482 °F)
Temperature measurement accuracy	± 5 °C or 5 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correction	In software only
On-screen reflected background temperature compensation	In software only
Imaging performance
Image capture frequency	9 Hz refresh rate
Detector type	160 X 120 Focal Plane Array, uncooled microbolometer
Thermal sensitivity (NETD)	≤ 0.20 °C at 30 °C target temp. (200 mK)
Visual (visible light) camera	No visible camera
Infrared field of view	23 ° x 17 °
Spatial resolution (IFOV)	2.5 mRad
Minimum infrared focus distance	15 cm (approx. 6 in)
Focus mechanism	Manual, one-handed Smart Focus capability
Image capture and data storage
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Storage medium	SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations (when available), or 3000 basic bitmap (.bmp) images transferrable to PC via included multi-format USB card reader
File formats	Non-radiometric (.bmp) or fully-radiometric (.is2) No analysis software required for non-radiometic bitmap (.bmp) files
Export file formats w/SmartView® software	BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Memory review	Sequential image navigation and review
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity	10 % to 95 % non-condensing
Display	9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover
Controls and adjustments	User selectable temperature scale (°C/°F) Language selection Time/Date set Emissivity selection (Ti25 only) Reflected background temperature compensation (Ti25 only) User selectable hot spot and cold spot, and center point on the image (Ti25 only) (other custom markers and shapes in SmartView® software) User selectable backlight: “Full Bright” or “Auto”
Software	SmartView® full analysis and reporting software included
Batteries	Internal rechargeable battery pack (included)
Battery life	Three to four hours continuous use (assumes 50 % brightness of LCD)
Battery charge time	2.5 hours to full charge
AC battery charging	AC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included
AC operation	AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included.
Power saving	Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standards	CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
Electromagnetic compatibility	Meets all applicable requirements in EN61326-1:2006
C Tick	IEC/EN 61326-1
US FCC	CFR 47, Part 15 Class B
Vibration	0.03 g2/Hz (3.8 grms), IEC 68-2-6
Shock	25 g, IEC 68-2-29
Drop	2 meter (6.5 feet)
Size (H x W x L)	26.7 cm x 12.7 cm x 15.2 cm (10.5 in x 5.0 in x 6.0 in)
Weight (battery included)	1.2 kg (2.6 lb)
Enclosure rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Recommended calibration cycle	Two-years (assumes normal operation and normal wear)
Supported languages	Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
