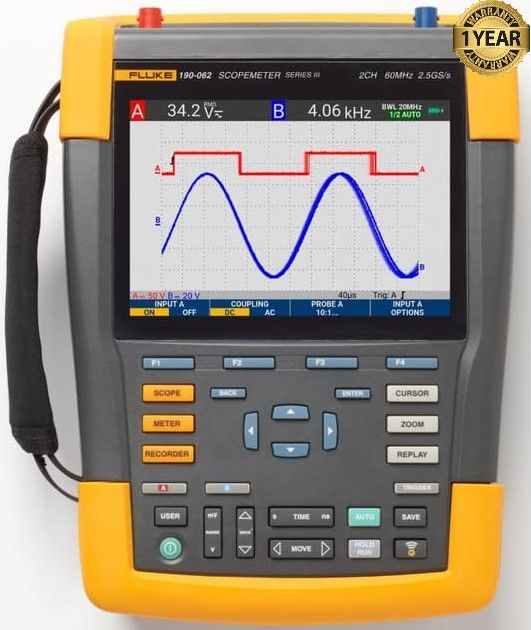

Fluke 190-062 Series III Scopemeter 2 Channel 60MHz Oscilloscope
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- Fluke 190-062 Series III Scopemeter 2 Channel 60MHz Oscilloscope (BC# - L/T*)
Fluke 190-062 Series III Scopemeter 2 Channel 60MHz Oscilloscope
Effortlessly diagnose, view, and capture complex waveforms, induced noise, intermittent events, signal fluctuations, or drift with this high-performance portable oscilloscope. Rugged and easy to use, this oscilloscope features a bright color display, two channels, and a bandwidth of 60 MHz.
Accurate and versatile, this portable oscilloscope provides a fast sampling rate of up to 5 GS/s, a 200 ps resolution, and deep memory of 10,000 samples per channel. Perform timing or amplitude-related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.
The 190 Series III offers two USB ports, electrically isolated from measurement input circuits allowing you to quickly and easily transfer data to a PC, archive and share waveforms with OEMs, colleagues and support staff, or store waveforms, screen captures and instrument setups onto USB memory devices for later use. Easily transfer saved files via USB stick, direct connection via the USB interface or optional Wi-Fi connectivity. These files can be used for further data handling or in FlukeView-2 Software to study waveforms in greater detail.
Features
- Up to four independent floating isolated inputs, up to 1000 V
- Up to 5 GS/s real time sampling (depending on model and channels used)
- Deep memory: 10,000 points per trace waveform capture (scope mode)
- CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments
- Up to seven hours of battery operation using BP291
- Large, bright color display is easy to view in nearly any environment
- Easy to store and view historical data and transfer to a PC via USB or Wifi
- Convenient battery access door for quick battery swaps in the field
- IP51 rating, dust and drip-proof
- Connect-and-View triggering for intelligent, automatic triggering on fast, slow and even complex signals
- Frequency spectrum using FFT-analysis
- Automatic capture and REPLAY of 100 screens
- ScopeRecord mode gives 30,000 points per input channel for low frequency signal analysis
- TrendPlot Paperless Recorder mode with deep memory for long term automatic measurements
- 5000 count DMM included in the 2-channel models
Specifications:
| Vertical Deflection | |
| Number of channels | 2 |
| Bandwidth | 60 MHz |
| Rise time | 5.8 ns |
| Number of scope inputs | 2 input channels plus external trigger |
| Channel architecture | All inputs fully insulated from each other and from ground. Inputs may be activated in any combination |
| Input Coupling | AC or DC, with ground level indicator |
| Input sensitivity | 2 mV/div to 100 V/div, plus variable attenuation |
| Bandwidth limiter | User selectable: 20 kHz, 20 MHz or full bandwidth |
| Normal/invert/variable | On each input channel, switched separately |
| Input voltage | CAT III 1000 V/CAT IV 600 V rated, see General Specifications for further details |
| Vertical resolution | 8 Bit |
| Accuracy | 5 mV/div to 100 V/div, ±(1.5 % + 6 counts) 2 mV/div, ±(1.5 % + 10 counts) |
| Input impedance | 1 MΩ (± 1 %) // 15 pF (± 2.25 pF) |
| Horizontal | |
| Maximum real-time sample rate (sampled simultaneously) |
625 MS/s for each channel |
| Record length | Up to 10,000 samples per channel |
| Time base range | 10 ns/div to 4 s/div |
| Time base in a 1-2-4-sequence Slower time/division settings using ScopeRecord Roll mode |
|
| Maximum record length | 10,000 samples per channel in scope mode; 30,000 points per channel in ScopeRecord Roll mode |
| Timing accuracy | ± (0.01 % of reading + 1 pixel) |
| Glitch capture | 8 ns peak detect on each channel |
| Display and Acquisition | |
| Display | 153 mm (6 in) full-color LCD with LED backlight |
| Display modes | Any combination of channels; average on/off; replay |
| Visible screen width | 12 divisions horizontally in scope mode |
| Digital persistence modes | off/short/medium/long/infinite and envelope mode |
| Waveform mathematics | One mathematical operation on any 2 input channels: add/subtract/multiply; X-Y-mode Frequency Spectrum using FFT analysis |
| Acquisition modes | Normal, Averaged, Auto, Single Shot, ScopeRecord roll, glitch capture, waveform compare with automatic “Pass/Fail testing”; Replay |
| Line power | Universal mains adapter/battery charger BC190/830 included, with detachable 2-wire power cords 100 Vac to 240 Vac, ±10 %, 50-60 Hz |
| Battery |
|
| Battery power | Re-chargeable Li-Ion battery (included). Battery swappable through easily accessible battery door at the rear of the instrument |
| Battery type(incl.) and capacity [+opt. battery] | BP290: 10.8V, 2500 mAh [BP291 (5000 mAh) optional] |
| Battery operating time (with backlight low) | Up to 3.5 using BP290 (included), up to 7 hours using BP291 (optional) |
| Battery charging time | 2½ hours using BP290 5 hours using BP291 |
| Battery power saving functions | Auto ‘power down’ with adjustable power down time. Automatic ‘display off’ with adjustable power down time. On-screen battery power indicator |
| Operating temperature | Battery discharging: 0 °C to 40 °C (32 °F to 104 °F) Battery charging: 0 °C to 40 °C (32 °F to 104 °F) |
| Storage temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity | 0 °C to 10 °C (32 °F to 50 °F): noncondensing 10 °C to 30 °C (50 °F to 86 °F): 95 % (±5 %) 30 °C to 40 °C (86 °F to 104 °F): 75 % (±5 %) 40 °C to 50 °C (104 °F to 122 °F): 45 % (±5 %) |
| Maximum operating altitude | CAT IV 600 V, CAT III 1000 V: up to 2000 m (6 600 feet) CAT IV 300 V, CAT III 600 V, CAT II 1000 V: up to 4000 m (13 000 feet) |
| Interfaces | Two USB-ports provided. Ports are fully insulated from instrument’s floating measurement circuitry. USB-host port directly connects to external flash memory drive (up to 32 GB) for storage of waveform data, measurement results, instrument settings and screen copies. Alternatively, this USB-A port may be used to connect a WiFi Adapter for wireless PC connectivity. A mini-USB-B is provided which allows for interconnection to PC for remote control and data transfer under PC-control using FlukeView-2. |
| Probe calibration output | Dedicated probe-cal output with reference contact provided, fully insulated from any measurement input channel. Generator Output: 1.225 Vpp / 500 Hz square wave |
