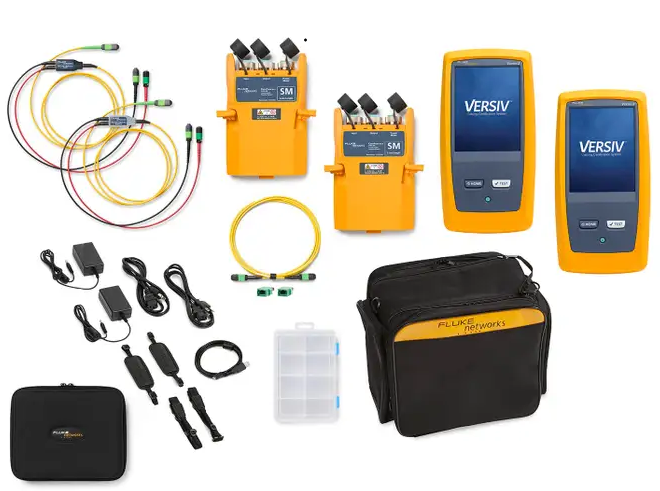

Fluke Networks Certifiber Max CFM-100S SM OLTS Module Set w/ 2 Versiv Mains
Condition: Refurbished / Calibrated
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- (2) Fluke Networks Versiv 2 Mainframe
- (2) Fluke Networks CFM-SM Certifiber Max SM Multi-Fiber Modules
- SM Source:
- 1310nm
- 1550nm
- SM Source:
- (2) Test Reference Cord for Single-Mode MPO 12 Pinned Cables
- (1) Verification Test Reference Cord for Single-Mode MPO 12 Pinned Cables
- (2) Adapters/Couplers for MPO 12/24 Fiber Cables
- (2) Hand Straps
- (2) AC Adapter/Charger
- (2) Power Cord
- USB PC Interface Cable
- Carrying Case
Fluke Networks Certifiber Max CFM-S-ADD SM OLTS Module Set
Maximize your multi-fiber certification efficiency with the CertiFiber Max OLTS. Measure loss, length, and polarity of up to 24 fibers in one second. Field-replaceable UniPort adapters connect directly to MPO, MMC, pinned and unpinned configurations, and more, giving you maximum flexibility. Set up your projects right the first time with the Versiv ProjX management system, or remotely with LinkWare Live. Minimize measurement uncertainty with 1-jumper reference setting and an integrated timer that tracks time since the reference was set and a counter for the number of times a Test Reference cord has been used. Troubleshoot fast with a built-in multi-fiber VFL, duplex power meter, and optional end face inspection.
Maximum fibers. Maximum efficiency. Maximum advantage.
- Maximum speed: Measure loss, length, and polarity of up to 24 fibers in one second.
- Maximum efficiency: CertiFiber Max is part of the modular Versiv / LinkWare cabling certification system, used by more technicians than any other certifier.
- Maximum flexibility: Field-replaceable UniPort adapters connect to existing (MPO, MMC), pinned and unpinned, and future connector/pin configurations — test 8-, 12-, 16- and 24-fiber cables, with 32-fiber cables to come.
- Maximum accuracy: Standards-preferred one-jumper reference provides the least uncertainty in fiber measurements. Tracks time since reference setting and count of tests for TRCs to ensure compliance with test processes.
- Maximum ROI: The Versiv / LinkWare ecosystem supports Tier I (OLTS) and Tier II (OTDR) fiber testing, inspection, and even copper certification.
Specifications:
Multi-Fiber Optical Power Meter (per module)
|
Parameter |
Single-Mode |
|
Included UniPort Adapter |
Non-contact MPO 12-fiber pinned |
|
Optional Uniport Adapters |
MPO 12/16/24 and MMC 16/24 pinned or unpinned |
|
Detector Type |
16 large core fibers coupled to 16 InGaAs photodiodes. |
|
Supported Fiber Type |
Single-Mode 9/125 um |
|
Calibrated Wavelengths |
1310nm, 1550nm |
|
Power Measurement Linearity |
0.10 dB |
|
Power Measurement Repeatability |
0.02 dB |
|
Power Measurement Reproducibility |
0.1 dB |
|
Power Measurement Uniformity |
0.1 dB |
|
Loss Measurement Budget |
10 dB |
Multi-Fiber Optical Sources (per module)
|
Output port |
MPO 16 pinned |
|
Fiber Type |
9/125 um |
|
Central Wavelengths (nm) |
1310,1550 |
|
Emitter Type |
Fabry-Perot laser |
|
Spectral Width (nm) |
<5 (1310 nm and 1550 nm) |
|
Output Power (dBm) Nominal |
-12 dBm |
|
Power Stability (dB) |
0.10 |
|
Launch Condition |
Not applicable |
|
Length Measurement Range |
Up to 25 km |
|
Length Measurement Uncertainty |
+/- 1 meter + 1% of length |
Fluke Networks Versiv 2 Mainframe
The Versiv main unit is a rugged, hand-held instrument that you configure to troubleshoot and document copper and fiber optic cabling. It includes these features:
- Operates with OptiFiber® Pro OTDR modules to locate, identify, and measure reflective and loss events in multimode and singlemode fibers.
- Operates with OneTouch™ AT Network Assistant module to test, troubleshoot, and document network performance.
- ProjeX™ management system lets you set up projects to specify the types of tests and the cable IDs necessary for a job and monitor the progress and status of the job.
- LinkWare™ software lets you upload test results to a PC and make professional-quality test reports.
Specifications:
| Operating temperature | 0 °F to 113 °F (-18 oC to +45 oC) |
| Storage temperature | -22 °F to +140 °F (-30 oC to +60 oC) |
| Operating relative humidity (% RH without condensation) | 0 % to 90 %, 32 °F to 95 °F (0 oC to 35 oC) 0 % to 70 %, 95 °F to 113 °F (35 oC to 45 oC) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test with and without module |
| Safety | CSA 22.2 No. 61010 IEC 61010-1 3rd Edition |
| Operating altitude | 13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter |
| Storage altitude | 39,370 ft (12,000 m) |
| Pollution degree | 2 |
| EMC | EN 61326-1 |
| Battery type | Lithium ion battery pack, 7.2 V |
| Battery life | 8 hr Auto OTDR operation, dual wavelength, no video probe connected, 150 m of fiber |
| Charge time | Tester off: 4 hours to charge from 10 % capacity to 90 % capacity. Tester on: 6 hours to charge from 10 % capacity to 90 % capacity with the tester on. |
| Display | 5.7 in LCD display with a projected capacitance touchscreen. |
| Main unit weight | 2 lb 4.5 oz (1.03 kg) |
