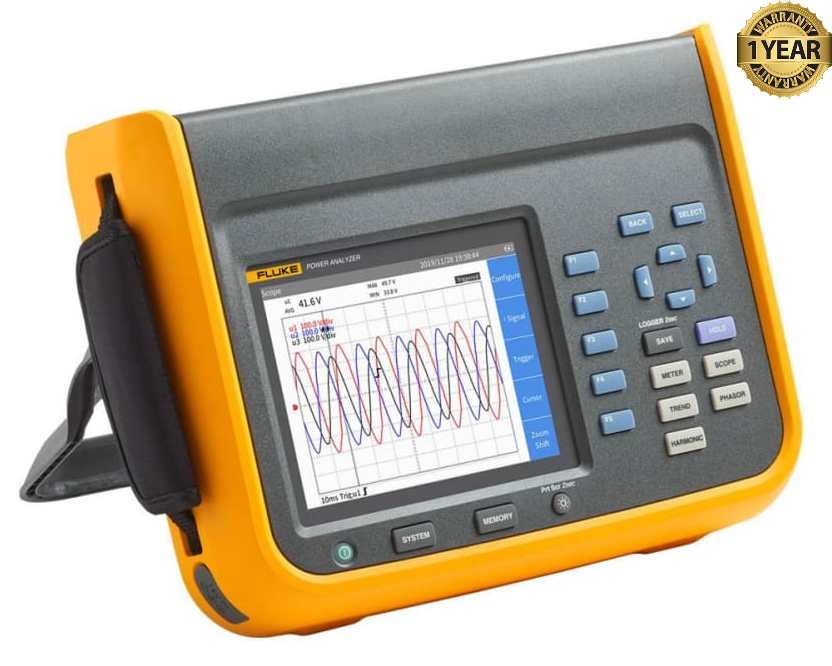

Fluke NORMA 6004 Portable Power Analyzer 4 Channel
Condition: Refurbished / Calibrated
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- Fluke NORMA 6004 Portable Power Analyzer 4 Channel (BC# -L/T*)
- Test Leads
- USB Cable
- AC Adapter
- Power cord
- Carrying Case (G)
Fluke NORMA 6004 Portable Power Analyzer 4 Channel
The Fluke NORMA 6004 Portable Power Analyzer is a precision instrument for measuring electrical power in laboratories and industrial environments. Engineers and technicians use it to evaluate equipment performance, investigate electrical problems, and understand how efficiently systems consume or convert energy.
Its four measurement channels provide four voltage inputs and four current inputs. These allow simultaneous measurements across multiple circuits or phases, helping users assess three-phase equipment and compare electrical input and output power when evaluating efficiency.
The analyzer measures voltage, current, active power, reactive power, apparent power, power factor, and harmonics. Fluke specifies 0.1% measurement accuracy and 500 kHz bandwidth for the series, supporting detailed analysis of electrical waveforms and power conversion equipment.
A color display presents numerical readings, waveform views, harmonic information, phase relationships, and measurement trends. These views help users identify distortion and observe changes during operation. USB and RS-485 communication, together with Fluke NormaView software, support reviewing and documenting results on a computer.
Features:
- Four voltage inputs and four current inputs for simultaneous measurements
- 0.1% basic measurement accuracy
- 500 kHz measurement bandwidth
- Voltage and current measurements, including AC and DC components
- Active, reactive, and apparent power measurements
- Power factor and phase-angle measurements
- Harmonic and distortion analysis
- Electrical efficiency calculations
- Energy and frequency measurements
- Numerical, waveform, harmonic, phasor, and trend displays
- 5.7-inch color LCD
- Rechargeable battery with up to 10 hours of operation
- USB and RS-485 communication
- Fluke NormaView PC software support
- CAT III 1000 V / CAT IV 600 V safety ratings
| Specification | Fluke NORMA 6004 |
|---|---|
| Instrument type | Portable precision power analyzer |
| Measurement channels | 4 |
| Inputs | 4 voltage and 4 current |
| Channel isolation | Electrically isolated channels |
| Basic accuracy | 0.1%; detailed accuracy depends on range and frequency |
| Measurement bandwidth | Up to 500 kHz, range-dependent |
| Sampling rate | 200 kS/s |
| Measurement update intervals | 100 ms, 200 ms, 500 ms, 1 second |
| Voltage ranges | 10 V, 100 V, 1,000 V |
| Direct current ranges | 0.1 A, 1 A, 10 A |
| Power measurements | Active, reactive, apparent power; power factor |
| Additional measurements | Efficiency, energy, frequency, phase shift, impedance |
| Harmonic analysis | Up to 100th harmonic at 50/60 Hz |
| Display modes | Meter, waveform, harmonic, phasor, trend |
| Display | 5.7-inch TFT color LCD |
| Screen resolution | 640 × 480 pixels |
| Internal storage | 32 GB |
| Communication | USB and RS-485 |
| Battery | BP291 lithium-ion; 10.8 V, 5,000 mAh, 54 Wh |
| Battery runtime | Up to 10 hours |
| Operating temperature | −10°C to +50°C |
| Storage temperature | −30°C to +60°C |
| Protection rating | IP50 with terminals mated |
| Safety ratings | CAT III 1,000 V / CAT IV 600 V |
