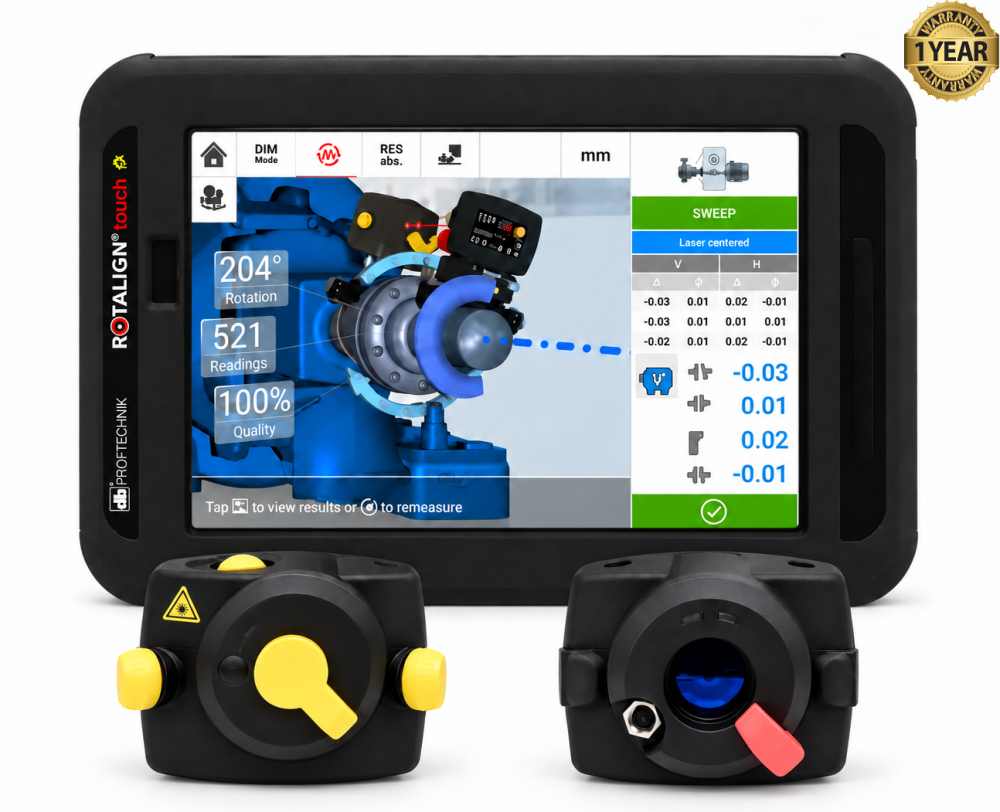

Fluke RotAlign Touch EX Portable Laser Shaft Alignment System

The Fluke ROTALIGN Touch EX is a portable laser shaft alignment system used to check and correct the alignment of connected rotating machines. Maintenance technicians use it to position equipment so its shafts rotate along the intended centerline. Accurate alignment helps reduce mechanical stress and supports reliable machine operation.

The system uses a laser and sensor mounted on the shafts to measure their relative positions as they rotate. Its continuous SWEEP mode collects measurements during a single shaft rotation. The touchscreen displays alignment results and helps technicians determine the adjustments needed to correct the machines’ positions.

The EX model is designed for work in hazardous industrial environments and carries ATEX and IECEx Zone 1 certification. It includes a rugged tablet with an IP68 protection rating, making it suitable for demanding maintenance conditions. Its hazardous-area certification is particularly relevant where potentially explosive atmospheres require appropriately rated equipment.

ROTALIGN Touch EX also guides technicians through alignment corrections. Live Move displays horizontal and vertical changes simultaneously as the machine is adjusted, while the Move Simulator previews proposed shim and sideways adjustments. A Soft Foot Wizard helps diagnose uneven machine-foot support, and thermal-growth targets allow alignment settings to account for changes as equipment heats up.

Beyond standard alignment jobs, the system supports vertical machines, spacer couplings, Cardan shafts, and machine trains containing up to six machines. Integrated wireless connectivity and compatible ALIGNMENT RELIABILITY CENTER 4.0 software help technicians manage results and produce PDF reports. These capabilities support both the physical alignment work and the documentation needed for maintenance records.

Features:

• Laser shaft alignment for horizontal and vertical rotating machinery.
• ATEX/IECEx Zone 1 certification for use in designated hazardous areas.
• Rugged IP68-rated touchscreen tablet.
• Continuous SWEEP measurement that collects alignment data during one shaft rotation.
• Live Move to display horizontal and vertical corrections simultaneously in real time.
• Move Simulator to preview shim changes and horizontal adjustments before moving equipment.
• Soft Foot Wizard to diagnose uneven machine-foot support.
• Thermal-growth compensation and alignment targets.
• Machine-train alignment for up to six machines.
• vertiSWEEP mode for continuous measurement of vertical machines.
• Spacer-coupling alignment.
• In-place Cardan-shaft alignment using a rotating-arm bracket.
• Integrated Wi-Fi, Bluetooth, RFID, and camera.
• ALIGNMENT RELIABILITY CENTER 4.0 software for managing results and creating PDF reports.
