Freedom Astronics R8200 Service Monitor

Freedom Astronics R8200 Service Monitor

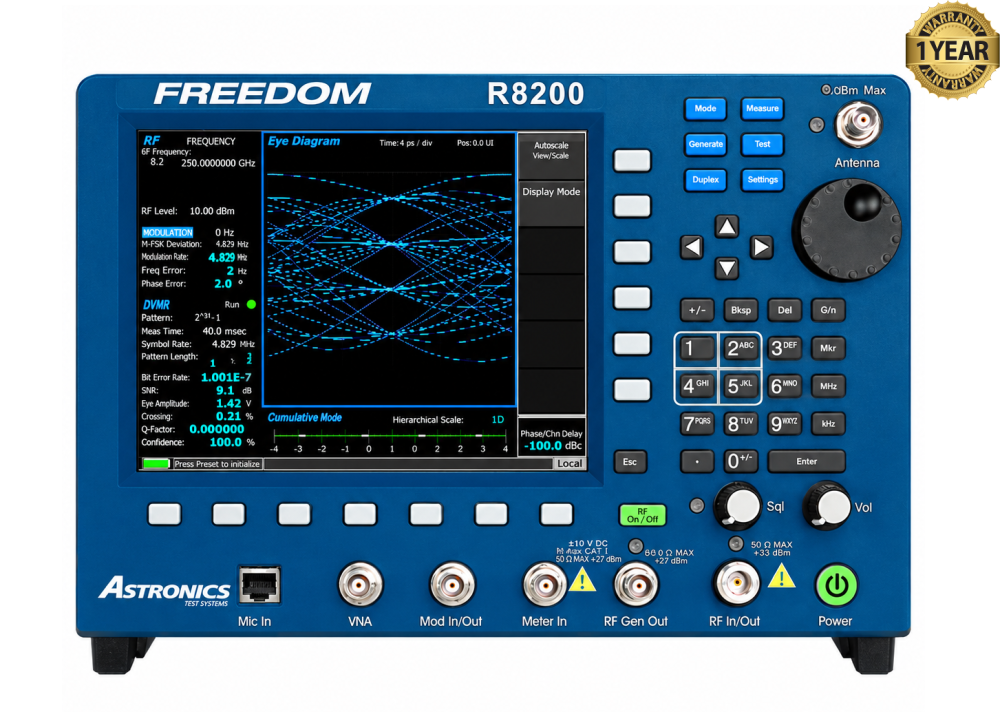

The Freedom Astronics R8200 Service Monitor is a portable communications system analyzer used to test, maintain and troubleshoot two-way radio equipment. Manufactured by Astronics Test Systems, it supports both radio units and communications infrastructure, making it useful for public safety, commercial and other land mobile radio applications.

The R8200 allows technicians to evaluate radio transmitters and receivers. It generates controlled test signals to check receiver performance and analyzes transmitted signals to assess radio operation. Combining signal generation, spectrum analysis and other measurement functions helps technicians diagnose faults and make adjustments using one instrument.

A built-in single-port vector network analyzer extends its capabilities to antennas, cables and RF networks. It measures return loss, voltage standing wave ratio and distance to fault, helping technicians identify impedance mismatches and locate cable problems. Smith chart displays provide another way to examine RF network characteristics.

The instrument supports analog radio testing and offers optional capabilities for digital technologies such as P25, DMR, NXDN and TETRA. Available software options enable technicians to evaluate compatible radio systems and perform specialized tests. Its Process Automation Toolkit also allows users to create automated test sequences for consistent, repeatable procedures.

A color touchscreen and internal rechargeable battery support use at the workbench and in the field. Remote front-panel access allows operation from a networked computer, while software upgrades provide a way to expand its capabilities. Together, these functions help technicians verify equipment performance, troubleshoot communications problems and return radios to service.

Features:

• AM/FM transmitter and receiver testing, including duplex operation.
• Standard RF testing from 1 MHz to 1 GHz, with an optional extension to 3 GHz.
• Built-in single-port vector network analyzer covering 1 MHz–6 GHz.
• Return loss, VSWR and distance-to-fault measurements for antennas and cables.
• Smith chart display for RF network analysis.
• Spectrum analyzer and tracking generator.
• RF power measurement up to 150 W, subject to input-duration limits.
• Frequency error, modulation and signal-strength measurements.
• SINAD and distortion meters for evaluating audio quality.
• Oscilloscope, digital voltmeter and audio signal generator.
• 8.4-inch full-color display.
• Swappable internal battery, providing approximately 1.5 hours of typical operation.
• Remote operation through Ethernet.
