Fujikura 100S Core Alignment Single Fiber Fusion Splicer

Fujikura 100S Core Alignment Single Fiber Fusion Splicer

The Fujikura 100S Fusion Splicer Kit is a portable system used to join individual optical fibers during network installation, maintenance and repairs. Its core-alignment fusion splicer precisely positions the fibers before joining them, helping create connections with low optical signal loss. It is designed for single-fiber splicing work.

After the fibers are stripped, cleaned and cleaved, the splicer examines their ends and aligns their cores. An electric arc then melts and fuses the glass ends together, forming a permanent connection. This process allows technicians to connect fiber cables, attach pigtails and restore damaged fiber links.

Fujikura’s Active Fusion Control analyzes the cleaved fiber ends and adjusts the fusion process to suit their condition. This helps reduce splice loss and the need to repeat unsuccessful splices. Active Blade Management works with a compatible cleaver to manage blade wear and support consistent fiber preparation.

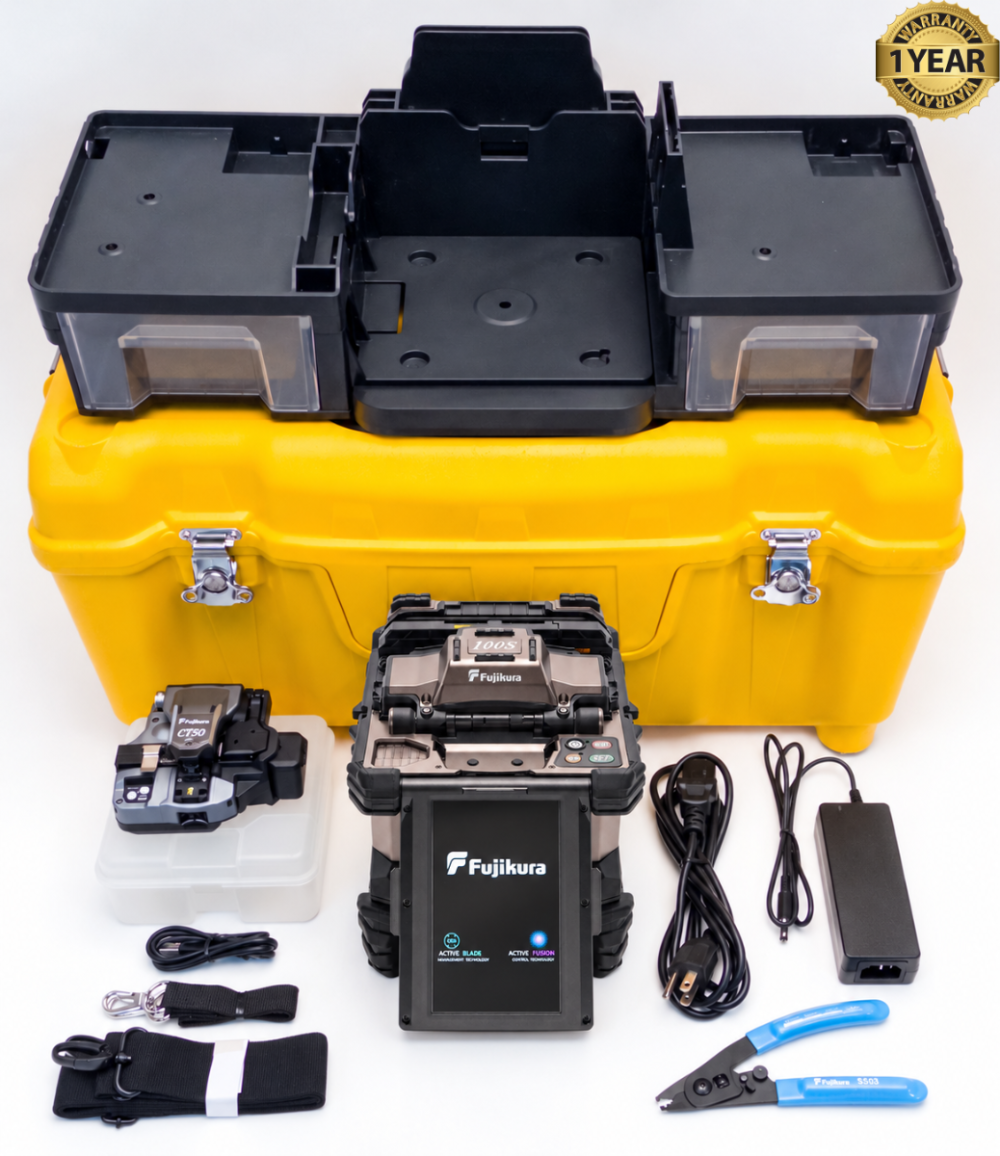

Once the splice is completed, a protective sleeve is placed over the joint and heated to secure it around the fiber. The kit brings the splicer together with preparation tools and accessories for fieldwork, although the exact contents vary by package. A carrying case helps technicians transport and organize the equipment between jobs.

The 100S is designed to streamline the preparation, alignment, fusion and protection stages of fiber installation. Its automated functions help technicians complete repeated splicing tasks efficiently while maintaining consistent connection quality. This makes the kit useful for building and repairing the fiber infrastructure that carries telecommunications and data services.

Features:

• Active core alignment for precise single-fiber splicing.
• Singlemode and multimode fiber compatibility.
• Active Fusion Control to optimize the fusion process.
• Active Blade Management with compatible cleavers.
• Simultaneous fiber preparation to streamline stripping, cleaving and loading.
• Automatic fiber-type analysis and splice-mode selection.
• Automated wind protector, clamps and heater operation.
• Average splice time of 7–9 seconds in SM Fast mode.
• Average heating time of 8–10 seconds in 60 mm Slim mode.
• Average splice loss of 0.02 dB for G.652 singlemode fiber under specified conditions.
• Adjustable 4.95-inch color touchscreen with approximately 320× fiber magnification.
• LED illumination for the fiber-loading area.
• Rechargeable battery rated for approximately 300 splice-and-heat cycles.
• Electrode life of approximately 5,000 splices.
• Storage for 20,000 splice results and 100 splice images.
• Bluetooth 5.2 LE and USB-C connectivity.
• Splice-location recording using GPS.
