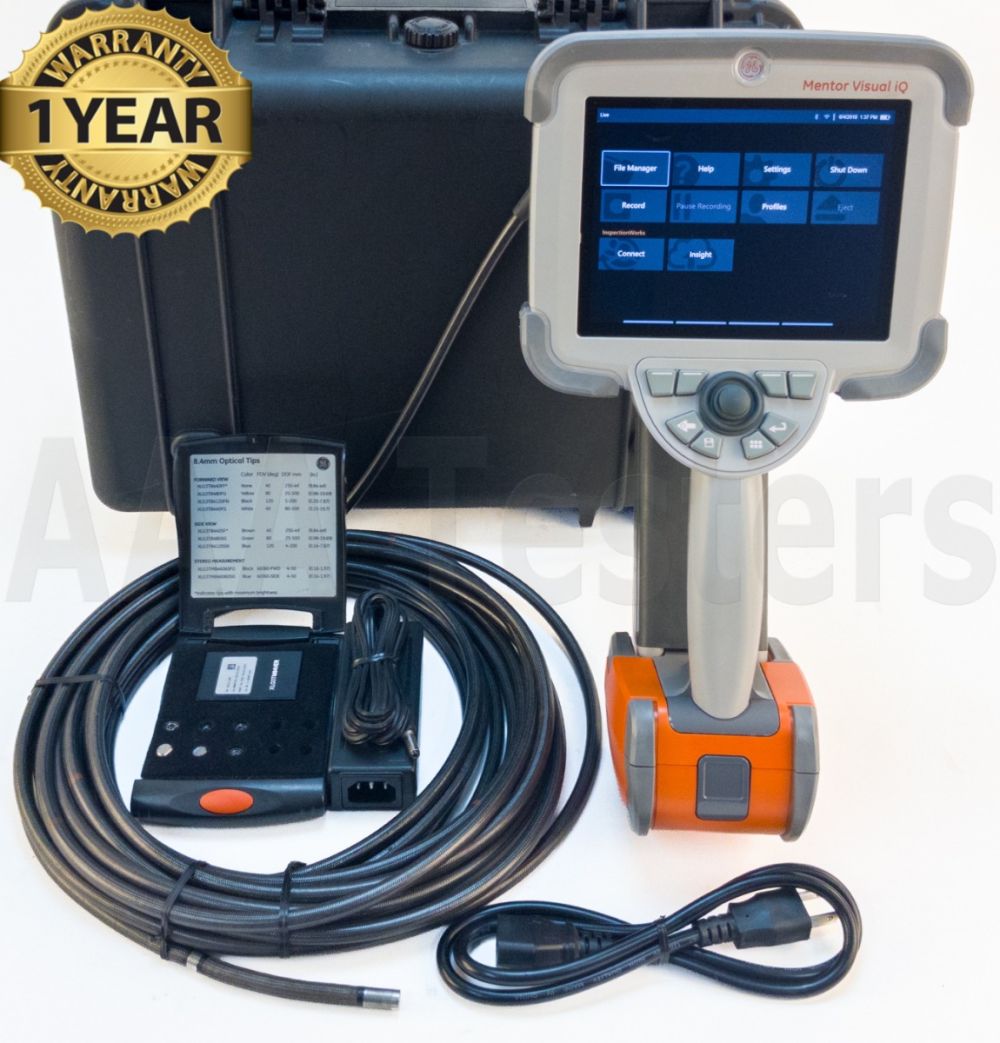

GE Inspection Mentor Visual iQ Inspect VideoProbe
Condition: Refurbished
Warranty: 1 Year Warranty
Shipping: USA & Worldwide
- GE Inspection Mentor Visual iQ Inspect VideoProbe (BC# -L/T*)
- Battery Pack
- AC Adapter/Charger
- Carrying Case (G)
GE Mentor Visual iQ VideoProbe
More precise and efficient inspections are now possible with GE’s Mentor Visual iQ VideoProbe™. With a high-definition camera that unlocks the power of digital zoom, images have never been this clear. Mentor Visual iQ enables smaller indication recognition from further distances, increasing the Probability of Detection (POD) for indications such as corrosion, blockages, and cracking.
Unbeatable Clarity with TrueSight
- Crystal clear live video and still images in high definition (HD)
- Unlocks the power of digital zoom on device with new image processing system
- Powerful processing for enhanced image brightness and daylight readability
Intuitive Design
- Portable, lightweight, rugged, and versatile
- QuickChange™ high-resolution probes with optical tip adaptors
- Integrated WiFi and Bluetooth
- Touchscreen with gesture support and on-screen keyboard
- Powered by high-capacity, rechargeable lithium ion batteries
Real3D™ Measurement for Confident Decisions
- Most advanced 3D capabilities for more precise measurement from increased distances
- 3D Phase and Stereo Measurement with fully surfaced Point Cloud
Enhanced Efficiency
- Menu Directed Inspection (MDI) software that guides inspectors through the inspection process, intelligently names files and tags files, and creates inspection reports
- On-device user manuals and context-based help links to master advanced features faster and eliminate cumbersome paper manuals
- Specialty probes: LongSteer™, working channel, UV light, and borescope adaptor
Improve accuracy with Real3D™ the only technology providing a fully surfaced Point Cloud
Advances in Point Cloud-based 3D measurement are making the VideoProbe an increasingly powerful tool for inspectors in the aerospace, power generation, manufacturing, and oil and gas industries.
GE’s most advanced VideoProbe uses the processing power of Real3D™ to help you map, measure, and analyze indications in a visualized fully surfaced Point Cloud—enhancing POD.
3D Point Cloud visualization allows inspectors to check measurement set-up in real time, reducing the likelihood of inaccurate measurements that can result in unnecessary downtime, scrap, and maintenance costs, as well as safety or reliability risks.
And with TrueSight™ HD visuals and digital zoom, and the new long-range 3D measurement tip, even more accurate measurement is now possible from increased distances.
Specifications:
| Operating Temperature | |
| Tip | -25ºC to 100ºC (-13ºF to 212ºF). Reduced articulation below 0ºC (32ºF) |
| System | -25° to 46°C (-13°F to 115°F). LCD may require warm-up period below 0°C (32°F) |
| Storage Temperature | -25º to 60ºC (-13ºF to 140ºF) |
| Relative Humidity | 95% max, non-condensing |
| Waterproof | Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2 O, 33.5 ft of H2 O) |
| Camera | |
| Diameter Probe | 4.0 mm (0.16”), 6.1 mm (0.24”), 6.2mm (0.24”), 8.4 mm (0.33") |
| Image Sensor | 1/6” Color Super HAD™ CCD camera (6.1, 8.4mm), 1/10” Color Super HAD™ CCD camera (3.9mm, 4.0mm, 6.2mm) |
| Pixel Count | SD 3.9, 4.0, 6.1, 6.2, 8.4 mm - 440k pixels HD 6.1mm - 1200k pixels |
| Housing | Titanium |
| System | |
| System Dimensions | 17.1 x 19.7 x 38.1 cm (6.75 x 7.75 x 15”) |
| Case Dimensions | Small carry-on case 54.9x 34.6x 23.6 cm (21.61x13.62x29”) Large workstation case 57.2 x 56.3 x 41.2 cm (22.52 x 22.16 x 16.22”) |
| System Weight | In small case with contents: 10.2 kg (22.4 lbs). In large case with
contents: 19.6 kg (43.2 lbs) Out of Case: 6120 system - 3.0 kg (6.7 lbs). 61100 system - 4.0 kg (8.7 lbs) |
| Construction | Magnesium and Polycarbonate housing with integrated elastomeric bumpers |
| LCD Monitor | Integrated (6.5”) active matrix XGA color LCD, daylight readable display, with optically bonded, multipoint capacitive Dragontrail™ touchscreen (Touchscreen available only on Analyze and Touch models; pinch and zoom gesture support, on-screen radio and slider button activation) |
| Joystick Control | 360º All-Way® tip articulation, menu access, and navigation |
| Button Set | Access user functions, measurement, and digital functions |
| Audio | Compatible with bluetooth headset/microphone |
| Internal Memory | 16 GB (Inspect model) |
| Data I/O Ports | Two USB 3.0 host ‘A’ ports, one USB 3.0 client micro ‘B’ port |
| Video Out | DisplayPort |
| Brightness Control | Auto and Variable |
| Illumination Type | White LED |
| Long Exposure | Auto – up to 16 seconds |
| White Balance | Factory default or user defined |
| Power | |
| Lithium Ion Battery | 10.8 V (nominal), 73 Wh, 6.8 Ah |
| Power Supply | |
| AC | 100-240 VAC, 50-60 Hz, <1.5 A RMS |
| DC | 18 V, 3.34 A |
| Standards Compliance and Classifications | |
| MIL-STD-810G | United States Department of Defense Environment Tests Sections 501.5, 502.5, 506.5, 507.5, 509.5, 510.5, 511.5, 514.6, 516.6, 521.3 |
| MIL-STD-461G | U.S. Department of Defense – Electromagnetic Compatibility with RE102, and RS103 – ABOVE DECK |
| Standards Compliance | Group 1 Class A; EN61326-1, IEC CB Scheme, UL/EN/CSA-C22.2 61010-1, IEC 62133, UN/DOT T1-T8, EU RoHS 2, EU RED Directive, ISTA 2G |
| IP Rating | IP65 (assembled), IP55 (disassembled) |
| Software | |
| Operating System | Embedded multi-tasking operating system |
| User Interface | Menu-driven and soft button operation; |
| File Manager | Embedded file manager supports the following operation on files and folders: copy, cut, paste, create, rename, delete, filter, sort, and image recall. USB and internal flash storage |
| Audio Data | PC Compatible ACC (.M4A file) format |
| Image Control | Brightness, Long Exposure, Invert, Inverse+, Single View, Illumination, Color Saturation Control, Probability of Detection (POD): Distortion Correction, Adaptive Noise Reduction(ANR), High Dynamic Range (HDR) imaging, and Image Transform Presets |
| Digital Zoom | Continuous (5x) |
| Image Formats | Bitmap (.BMP), JPEG (.JPG) |
| Video Format | MPEG4 AVC/H.264 (.MP4 file) |
| Text Annotation | Built-in on screen text overlay generator with selectable font size |
| Graphic Annotation | User placement of arrows |
| Articulation Control | User-selectable steer and Steer-and-Stay* articulation; tip “Home” return to neutral forward-tip orientation |
| Software Updates | Field upgradeable via upgradeable WiFi or USB ThumbDrive® |
| Languages | English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese, Chinese, Polish, Hungarian, Finnish and Swedish |
| Application Software | Menu Directed Inspection* (MDI) software digitally guides inspectors through the inspection process, intelligently names files and tags files and creates Microsoft® Word and PDF compatible inspection reports (MDI included on Analyze and Touch models, available as upgrade to Inspect model) |
