INNO View 8X SM MM Core Alignment Fiber Fusion Splicer
Condition: Brand NEW / Calibrated
Warranty: 3 Year Warranty
Shipping: USA & Worldwide

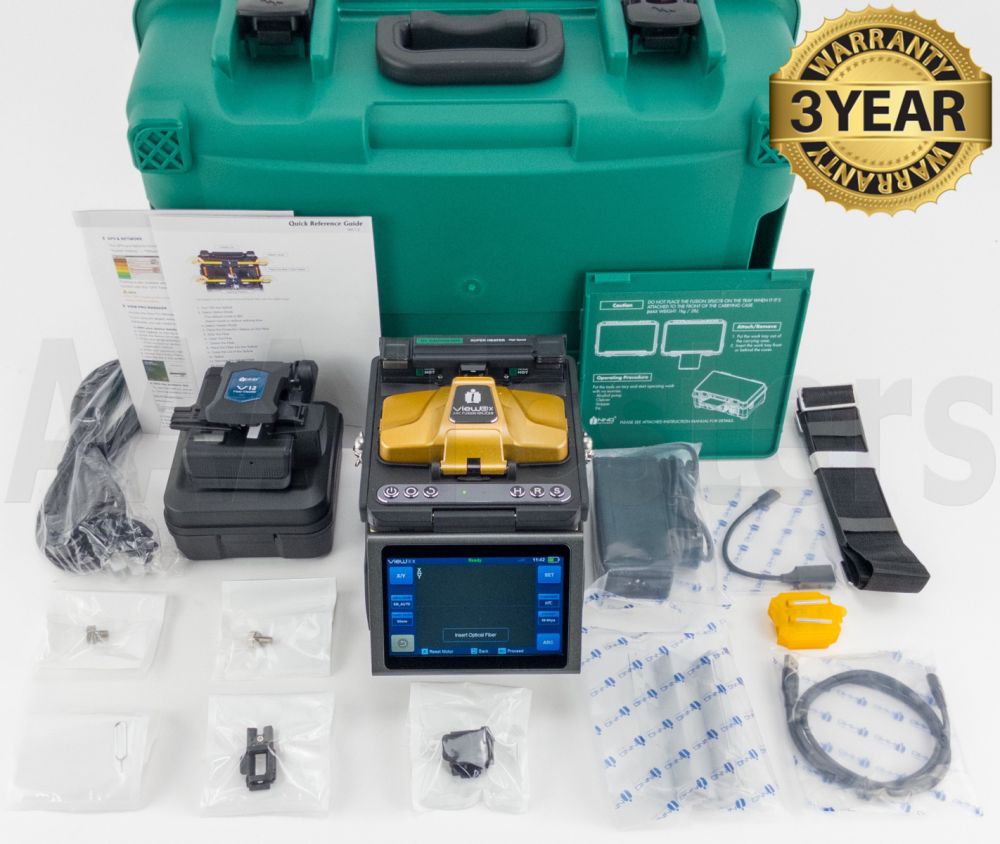

- Inno View 8X SM MM Core Alignment Fiber Fusion Splicer
- Inno V12 High Precision Fiber Cleaver
- SOC Holder
- SOC Heater Cover
- Electrodes
- Cooling Tray
- Shoulder Strap
- Power Cable
- USB Cable
- AC Adapter/Charger
- User Manual On CD-ROM
- Hard Carrying Case
INNO View 8X SM MM Core Alignment Fusion Splicer
Embracing the standout qualities of the esteemed ViewX Series, the View 8X is a beacon of splicing innovation. It’s equipped with IoT and GPS modules, ensuring state-of-the-art connectivity and enhanced security. Tailored for both large-scale operations and nuanced, detailed work, the View 8X delivers unmatched precision. As a prime example of our commitment to integrating smart technology into splicing, this model is both versatile and reliable. For those seeking the epitome of splicing excellence, the View 8X stands as a top choice.
Transforming FTTH Deployment
Discover how the View X and M+ Fusion Splicers are redefining efficiency, performance, and sustainability in fiber optic installations
Features:
- Ultrafast splicing & heating
- Large battery capacity
- Bright operation lighting
- Versatile fiber holder
- Quick & intuitive interface
Specifications:
| Alignment method | Core Alignment |
| Number of fibers | Single |
| Applicable fibers | SM (ITU-T G.652&T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Coating diameter | 100µm - 3mm |
| Cladding diameter | 80 - 150 µm |
| Cleave length | 5 - 16mm |
| Typical splice loss | SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Return loss | >>60dB |
| Splice time | Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec |
| Splice programs | Max 128 modes |
| Automatic calibration | Automatic arc calibration by air pressure & temperature |
| Electrode life span | 6000 Arc discharges |
| Heating programs | Max 32 modes |
| Heating time | Quick: 9s / Average: 13s |
| Protection sleeve | 20mm - 60mm |
| Data output | Cloud (view pro manager) + USB-C |
| Splice memory | 20,000 Splice data / 10,000 splice image |
| Battery | Battery capacity: 9000mAh / Operation cycle: 500 cycles (splicing + heating) |
| Power supply | AC input 100 - 240V, DC input 9 - 19V |
| Monitor | 5.0" color LCD display, full touch screen |
| Magnification | x360, x520 |
| Size | 162 x 143 x 158mm |
| Weight | 2.68kg |
| Pull test | 1.96 - 2.25N |
